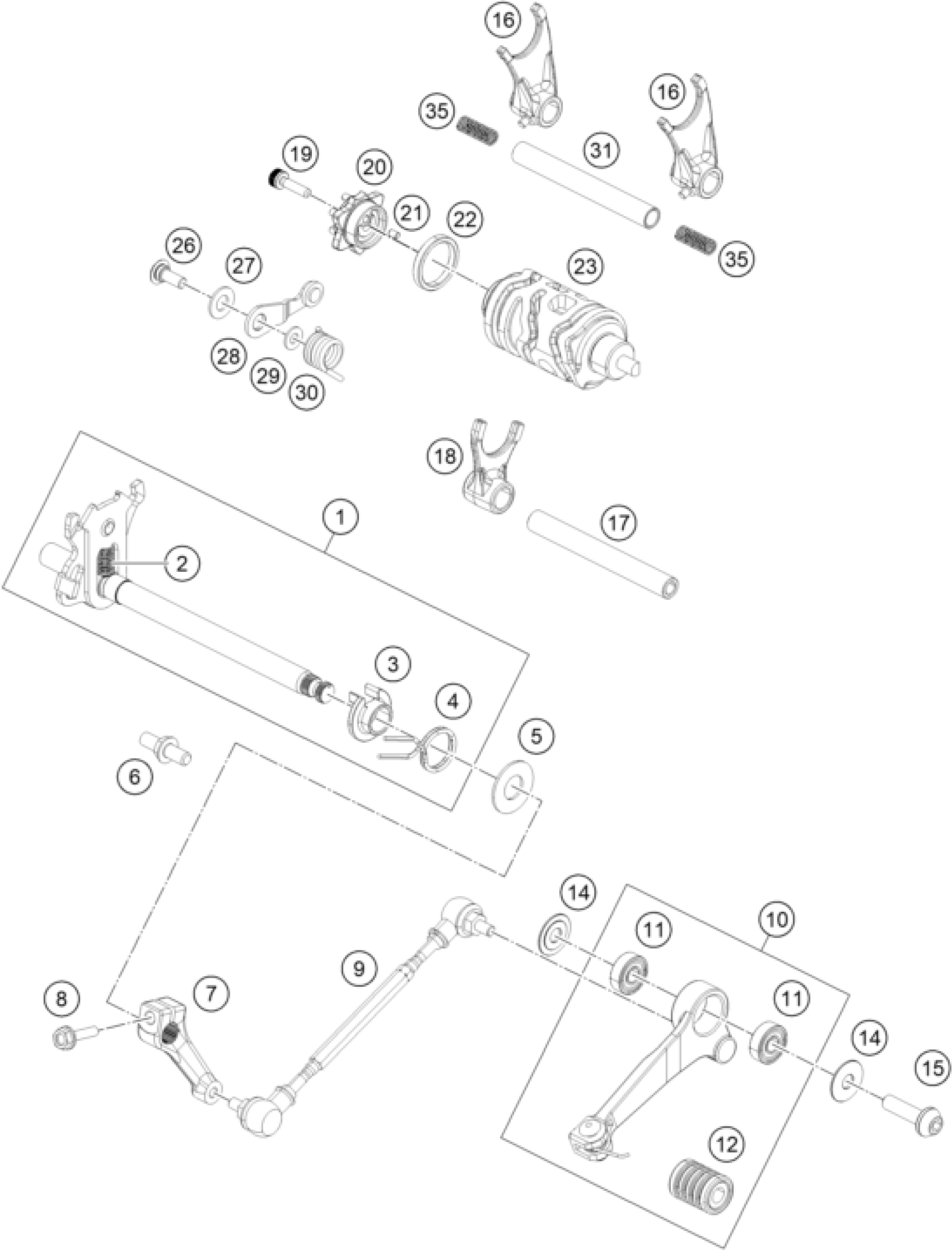

KTM KTMR2R RC 390, blue 2022 SHIFTING MECHANISM Diagram

#

Description

Price

1

Shift shaft cmpl. With quick s

94334005033

Unavailable

2

TENSION SPRING

90134009000

Unavailable

3

SPRING BUSHING

90134022000

Unavailable

4

RETURN SPRING

90134014000

Unavailable

5

STOP DISK 14X30X1,5

90134050000

Unavailable

6

SPRING GUIDE

90134016000

Unavailable

7

BAFFLE SHIFT LEVER

90634031010

Unavailable

8

Bolt-Flange-Kad ST-D DIA-06 L-

J025060221

Unavailable

9

ROD ASSEMBLY TIE

94534036044

Unavailable

10

Gear shift lever cmpl.

94534031044

Unavailable

11

BALL BEARING 608

J625060800

Unavailable

12

Pedal rubber

95834035000

Unavailable

14

WASHER SHIFTING LEVER

90534031020

Unavailable

15

BOLT SHIFT LEVER

90534034300

Unavailable

16

SHIFT FORK

90234002000

Unavailable

17

SHIFT RAIL

90234019000

Unavailable

18

SHIFT FORK

90234001000

Unavailable

19

SOCKET HEAD SCREW M6X20

90130001001

Unavailable

20

Detent

94334015000

Unavailable

21

Parallel pin

90134013000

Unavailable

22

SPACER

90134012002

Unavailable

23

DRUM GEAR SHIFT

93834012000

Unavailable

26

SCREW LOCKING LEVER

90134025000

Unavailable

27

WASHER LOCKING LEVER

90134030000

Unavailable

28

LOCKING LEVER CPL.

90134024033

Unavailable

29

Washer, 6x14x1.2

J125061416

Unavailable

30

Detent arm spring

94334023000

Unavailable

31

Gear shift rail

93834020000

Unavailable

35

SPRING SHIFT RAIL

90234039000

Unavailable
