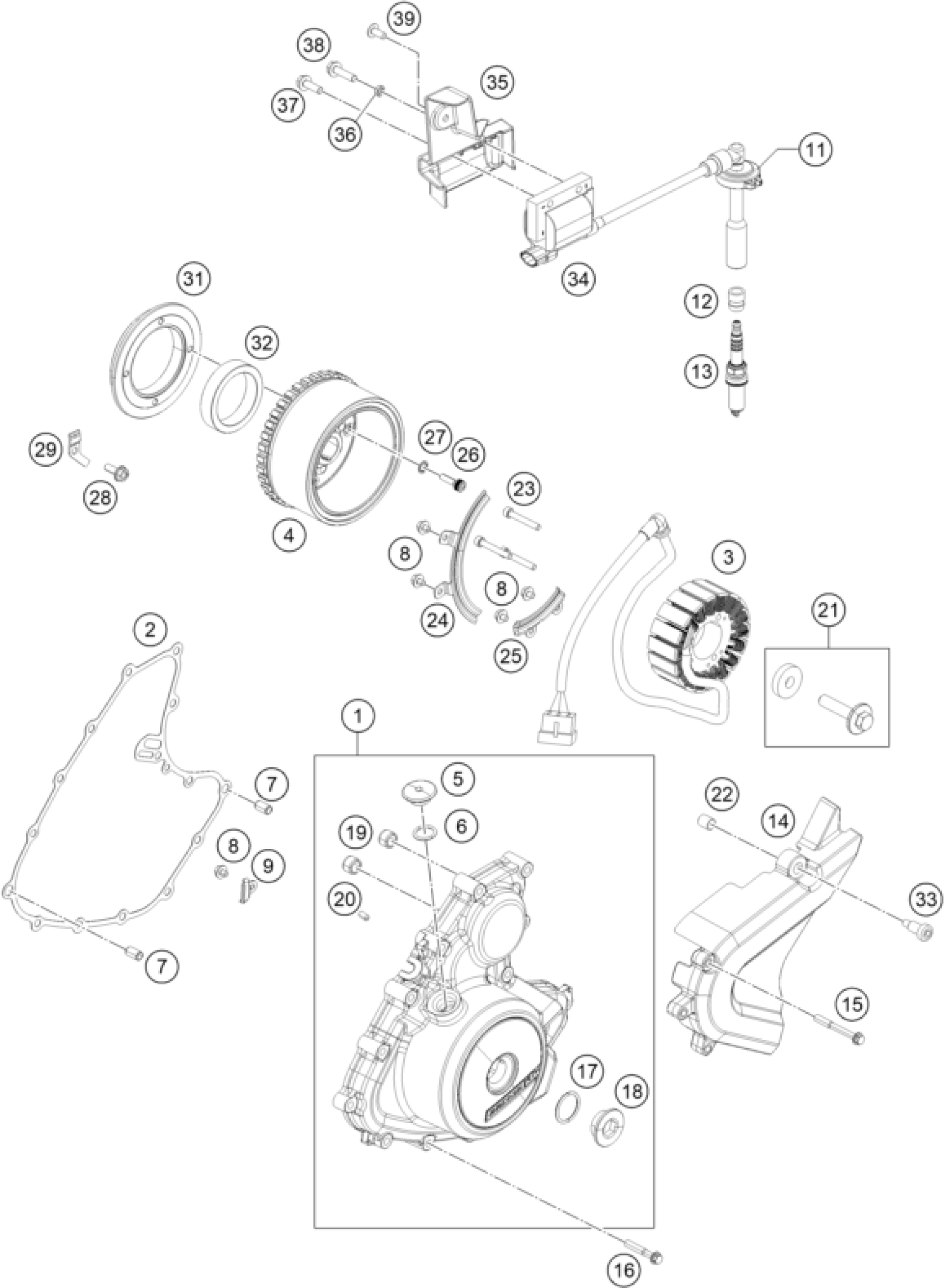

KTM KTMR2R RC 390, blue 2022 IGNITION SYSTEM Diagram

#

Description
Price

1

COVER ASSEMBLY MAGNETO

94330802033

Unavailable

2

Ignition cover gasket

93830040000

Unavailable

3

Stator cmpl.

94339004033

Unavailable

4

Rotor cmpl.

94339005033

Unavailable

5

Screw plug, OT marking

93839010100

Unavailable

6

O-RING 15,8X2,4

J770015824

Unavailable

7

PIN DOWEL 8X6,4X14MM

90130024000

Unavailable

8

Hex collar screw M5X8

J025050081

Unavailable

9

BRACKET HARNESS MAGNETO

90230062000

Unavailable

11

RUBBER GASKET SPARK PLUG

90239090001

Unavailable

12

Sealing boot spark plug

93839091000

Unavailable

13

Spark plug BOSCH VR6NEU M12X1.

93839093000

Unavailable

14

front sprocket cover

90230060002

Unavailable

15

Hex collar screw M6X50

J025060506

Unavailable

16

Hex collar screw M6X35

J025060353

Unavailable

17

O-RING 24X2,5

J770024015

Unavailable

18

PLUG SCREW M24X1,5

90230094000

Unavailable

19

BUSH STARTER SHAFT

90240018000

Unavailable

20

OIL NOZZLE

90230066300

Unavailable

21

ROTOR SCREW CPL.

90239005050

Unavailable

22

Distance bushing sprocket cove

93003081000

Unavailable

23

AH SCREW M5X35 SELF LOCKING

J912050353S

Unavailable

24

PLATE HARNESS MAGNETO

90230058000

Unavailable

25

PLATE HARNESS 2

93730059000

Unavailable

26

SOCKET HEAD SCREW M6X20

90130001001

Unavailable

27

TOOTHED WASHER M6

J797060003

Unavailable

28

BOLT FLANGE M6X16

J028060164

Unavailable

29

RETAINER GEAR STARTER

90240020002

Unavailable

31

SUPPORT FREEWHEEL CLUTCH

90130001000

Unavailable

32

FREEWHEEL CLUTCH

90140026000

Unavailable

33

Bolt socket M6X1XL22 BLK stepe

93003082000

Unavailable

34

Ignision coil cmpl.

93339006033

Unavailable

35

Cover ignition coil

94539006010

Unavailable

36

SLEEVE UNDER TRAY

90508016050

Unavailable

37

BOLT-FLANGED-SMALL

J900000602201

Unavailable

38

BOLT-FLANGE-KAD ST-A DIA-06 L-

J900000603000

Unavailable

39

SOCKET HEAD BOLT M6X12

90508006001

Unavailable
