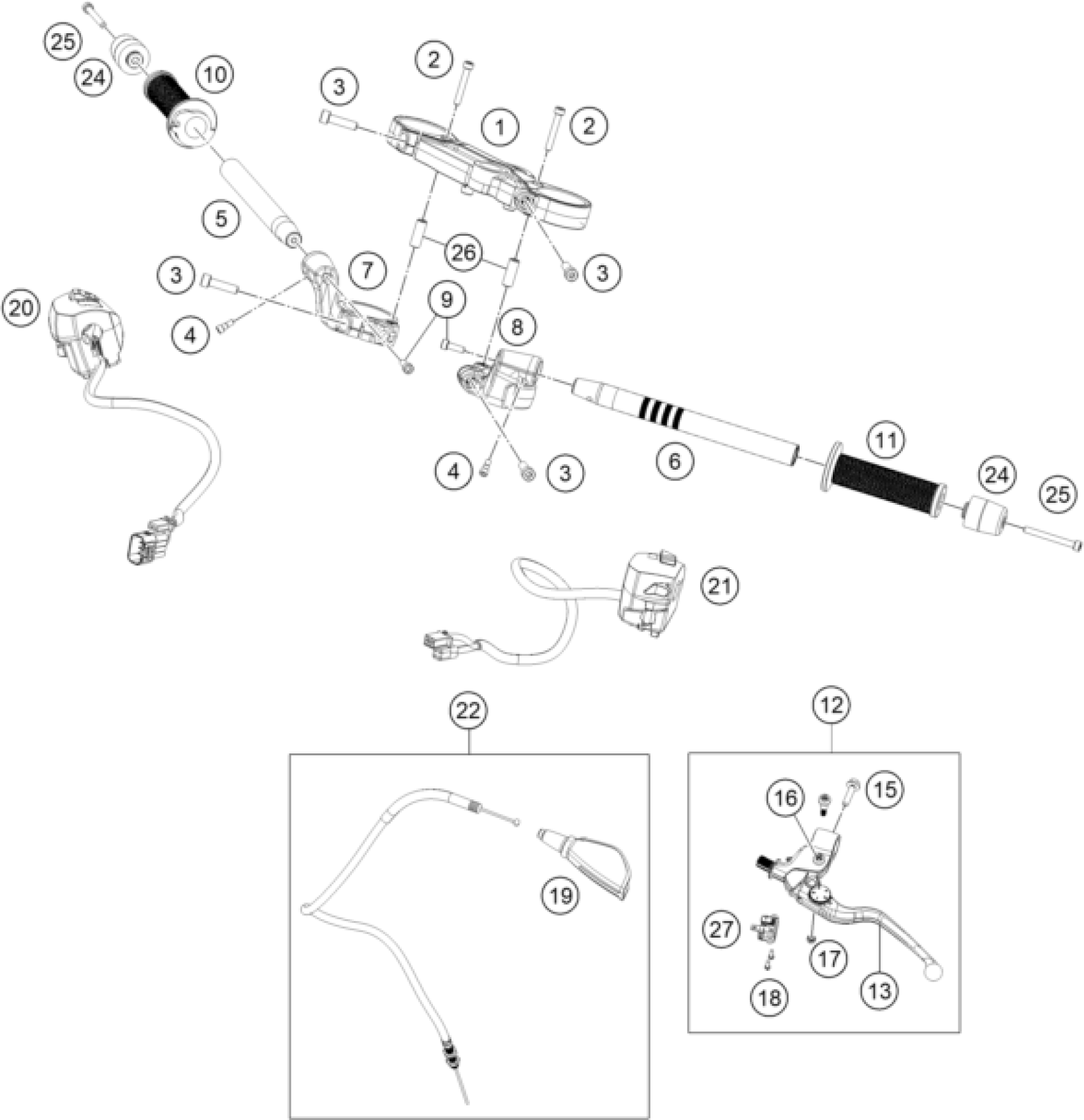

KTM KTMR2R RC 390, blue 2022 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

Top triple clamp

94501034035C1

$90.87

2

BOLT SOCKET M6X1

J900000604002

$1.49

3

AH SCREW M8X1.25X30

90501045000

$1.49

4

SPECIAL SCREW M5x0,8X13

90511006000

$2.05

5

HANDLEBAR R/S

93802001100

$23.18

6

TUBE HANDLEBAR LH

94802005000

$24.40

7

HOLDER HANDLE RH

94502006010

$106.30

8

HOLDER HANDLE LH

94502005010

$106.30

9

BOLT SOCKET M6X1X14

90511006100

$1.49

10

grip assembly rh

94802010033

$9.62

11

grip lh

94802039000

$5.23

12

assembly lever-holder lh

94502031044

$66.75

13

Clutch lever

93502031100

$14.76

15

bolt flanged-m6x1xl25xcl8.8xbl

J025060251

$1.49

16

LEVER PIVOT BOLT

93802031100

$1.49

17

nyloc nut-M5x0.8

J982050006

$1.49

18

Screw pan cross M3x0.5

90232014002

$1.49

19

BOOT CLUTCH LEVER

93802016000

$2.05

20

SWITCH CONTROL RH

94811074000

$190.17

21

SWITCH CONTROL LH

94811070000

$170.16

22

CLUTCH CABLE

90802090000

$15.51

24

HANDLEBAR WEIGHT

90202004001

$7.28

25

BOLT SOCKET M6X1

J900000605003

$1.49

26

SLEEVE

J800000702800

$1.49

27

Clutch switch

94811049000

$23.18
