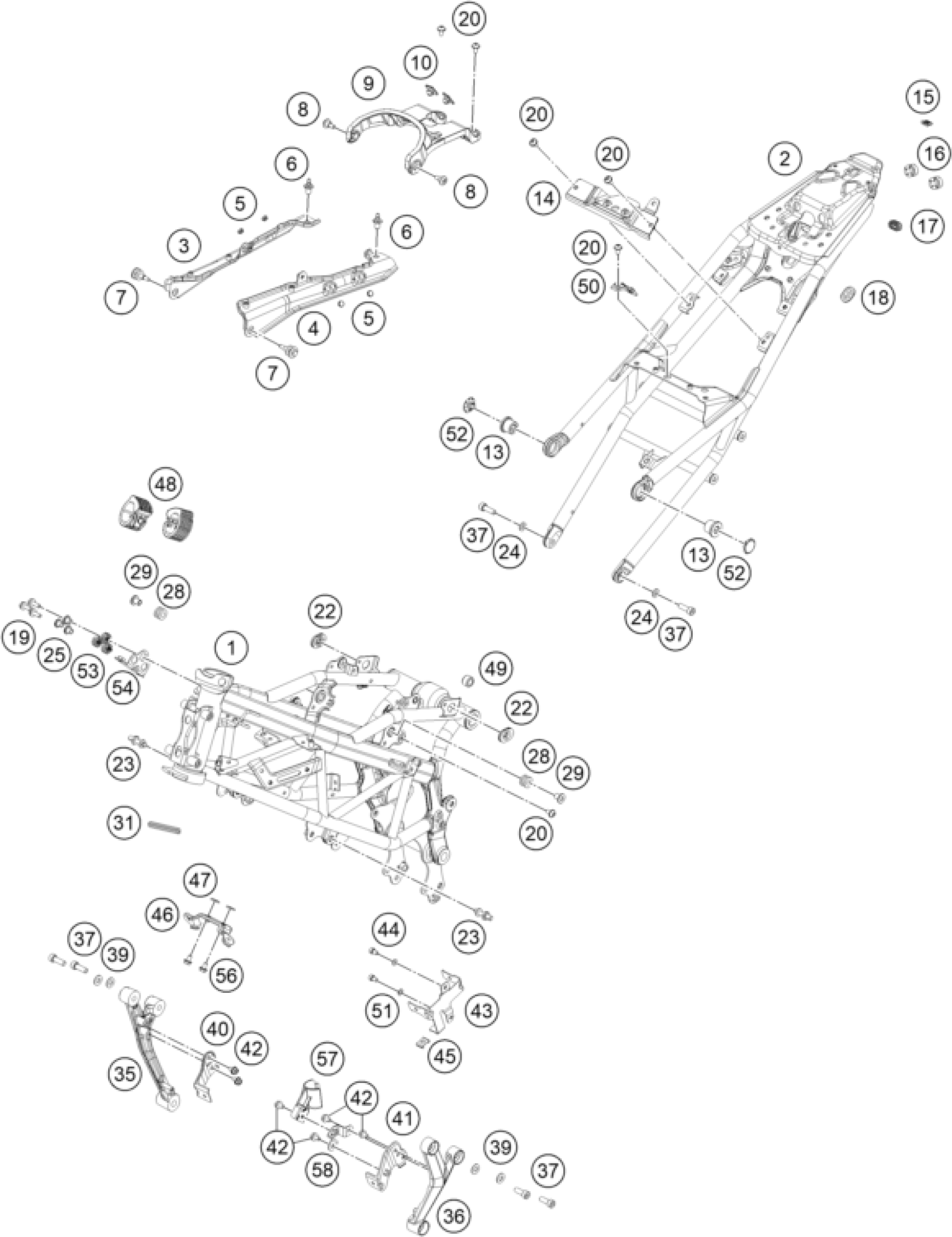

KTM KTMR2R RC 390, blue 2022 FRAME Diagram

#

Description
Price

1

Frame front - Black Gloss

94503001000C1

Unavailable

2

Subframe

94503002000EB

Unavailable

3

BRACKET SPIDER RH

94503002054

Unavailable

4

BRACKET SPIDER LH

94503002053

Unavailable

5

DAMPER

94503002065

Unavailable

6

Quick lock pin M8

94503002057

Unavailable

7

Hex collar screw. M8x23.5

J025080246

Unavailable

8

STEP BOLT M6

90512042020

Unavailable

9

CARRIER COVER TANK

94508049010

Unavailable

10

SEAT DUMPER SOZIUS SEAT

90507047041

Unavailable

13

SCREW SET SOCKET M22X1.25

94503082000

Unavailable

14

BRACKET LATCH SEAT

94503002085

Unavailable

15

GROMMET PILLION SEAT

90507047042

Unavailable

16

GROMMET TOP COVER

90107013004

Unavailable

17

GROMMET BATTERY BOX

90508024050

Unavailable

18

GROMMET FOR CABLE

90508016070

Unavailable

19

BOLT-FLANGE-KAD ST-A DIA-06 L-

J900000601802

Unavailable

25

collar number plate mounting

J800000601000

Unavailable

22

Rubber grommet

95811055010

Unavailable

23

Quick lock stud M8x12

94503001080

Unavailable

24

washer plain-id8.2xod15xt2xbla

J690000801500

Unavailable

28

GROMMET

J650001901402

Unavailable

29

Collar bushing 6.5x13.5

J800000701400

Unavailable

31

BEADING TANK LH

90507012000

Unavailable

35

Engine brace right

93303006000

Unavailable

36

Engine brace left250/390

93303005000

Unavailable

37

Hexagon screw M8X25

J912080251

Unavailable

39

Washer M8

J125080006

Unavailable

40

Radiator retaining plate, bott

95803006001

Unavailable

41

Radiator retaining plate, bott

95803005001

Unavailable

42

HH COLLAR SCREW M6X10 SW10

J025060103

Unavailable

43

Evaporative canister support p

94515003000

Unavailable

44

Hexagon socket screw M6x10

J900000601001

Unavailable

45

Rubber underlay

93615005000

Unavailable

46

Support

93035004000

Unavailable

47

Washer 9,2X16X2

J125090006

Unavailable

48

DAMPER

94507012000

Unavailable

49

collar

94503001097

Unavailable

50

HOLDER COUPLER

94603099000

Unavailable

51

WASHER PLAIN SMALL

J690000600101

Unavailable

52

Cover

94503082010

Unavailable

56

Hexagon screw M6X10

J025060101

Unavailable

58

Bracket holder thermostat

95835013050

Unavailable

57

THERMOSTAT HALTER

93035017050

Unavailable

53

grommet

J650001801400

Unavailable

54

bracket sensor lean angle

94842090010

Unavailable

20

SOCKET HEAD BOLT M6X12

90508006001

Unavailable
