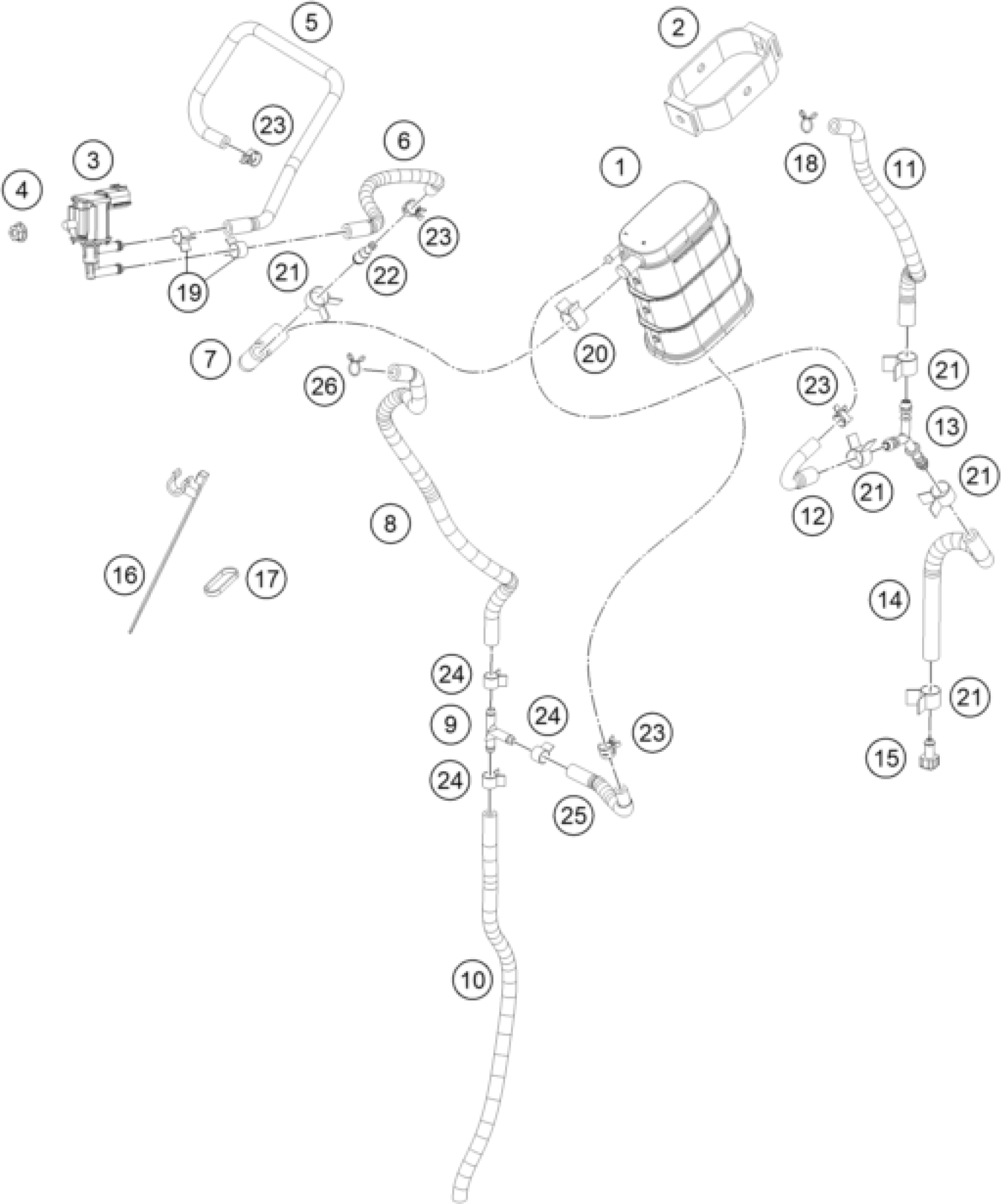

KTM KTMR2R RC 390, blue 2022 EVAPORATIVE CANISTER Diagram

#

Description

Price

1

Activated carbon filter

93015001000

Unavailable

2

STRAP CANISTER

94515002000

Unavailable

3

Valve purge

90607830000

Unavailable

4

nut hex flanged

J926060006

Unavailable

5

pipe fuel

94515020285

Unavailable

6

PIPE FUEL

94515020196

Unavailable

7

PIPE FUEL

94515020075

Unavailable

8

Drain hose

94515020383

Unavailable

9

CONNECTOR FOR BREATHER AND VAP

J610000600400

Unavailable

10

Drain hose

J600000532300

Unavailable

11

PIPE FUEL

94515020275

Unavailable

12

PIPE FUEL

94515020080

Unavailable

13

CONNECTOR Y SHAPE

90507015000

Unavailable

14

PIPE FUEL

94515020186

Unavailable

15

PLUG FUEL DRAIN

90515011000

Unavailable

16

Strap-clip swivel

95835068000

Unavailable

17

BAND (LENGTH 200MM)

90111093200

Unavailable

18

CLAMP

90107013008

Unavailable

19

CLAMP 10MM

90107018011

Unavailable

20

SPRING BAND CLAMP 15X10

90607017001

Unavailable

21

SPRING BAND CLAMP D13

90607017003

Unavailable

22

CONNECTOR TUBE EVAP

90207016004

Unavailable

23

Spring clip 9.5

J300000801000

Unavailable

24

CLAMP D9

90607017002

Unavailable

25

Drain hose

94515020092

Unavailable

26

HOSE CLAMP

90507017000

Unavailable
