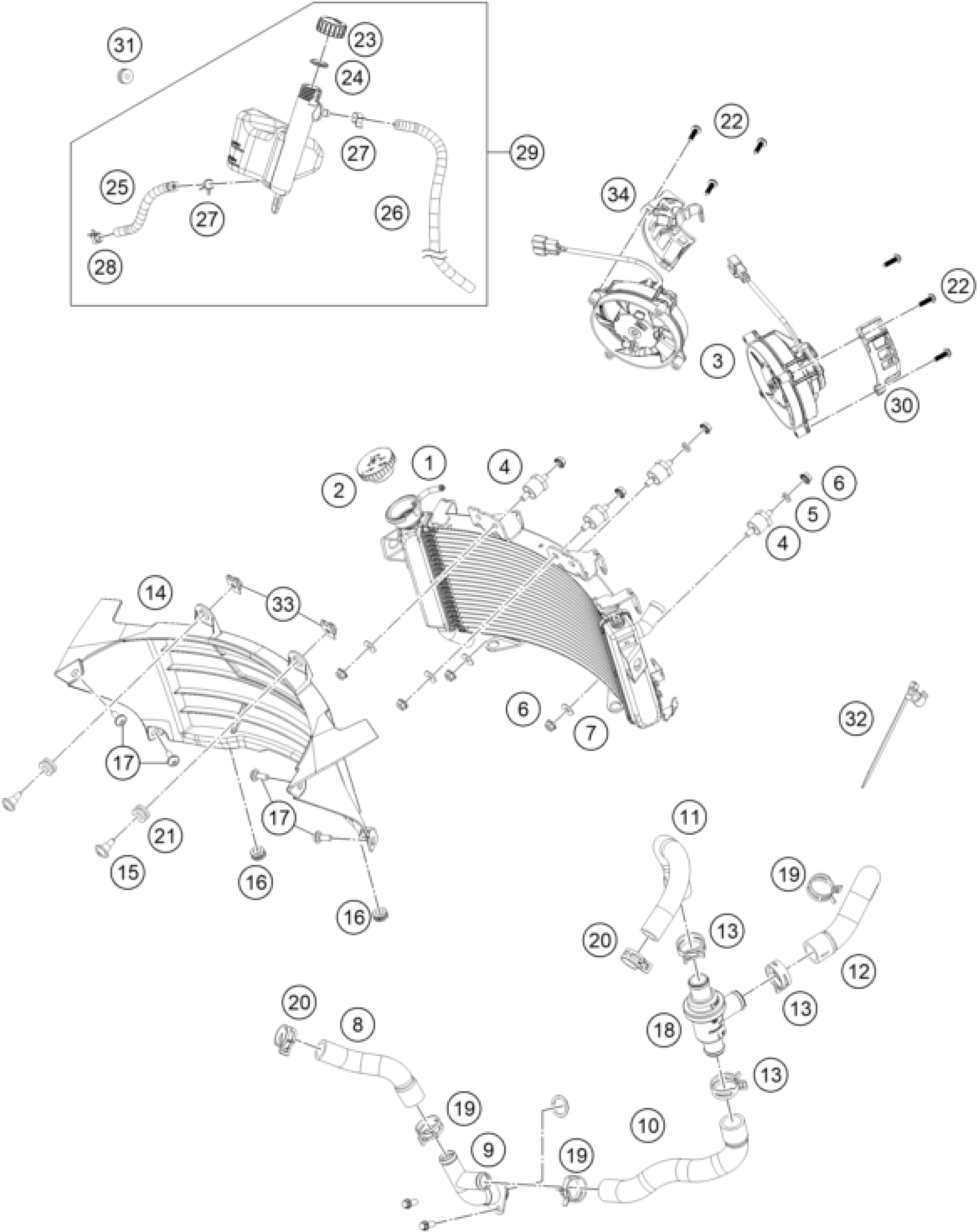

KTM KTMR2R RC 390, blue 2022 COOLING SYSTEM Diagram

#

Description
Price

1

Radiator

94835010000

$212.42

2

RADIATOR CAP

90135016100

$17.20

3

Radiator fan, cmpl

95835041044

$169.69

4

SILENTBLOCK M6

93335001000

$4.11

5

Spring ring B6

J127060001

$1.49

6

nut hex flange-m6x1xht.6xcl4xb

J926060003

$1.49

7

washer plain-id6.5xod16xthk1xb

J125070004

$1.49

8

Radiator hose, radiator hose f

95835024030

$6.54

9

COOLANT PIPE T

90635071033

$31.78

10

Pipe thermostat-joint t pcs.

94335026000

$13.92

11

Radiator hose, radiator thermo

95835026100

$11.77

12

Pre-formed hose

93035025000

$6.63

13

HOSE CLAMP D28

90135020003

$3.08

14

SHROUD RADIATOR

94535036000

$25.80

15

screw butn hd-m6x1xl10xblkxste

J031060101

$1.49

16

Rubber grommet

95835016000

$1.49

17

SCREW BUTTON HEAD STEP M6X1

J900000601404

$1.49

18

THERMOSTAT

90135017000

$33.56

19

hose clamp D26

90135020001

$3.08

20

HOSE CLAMP D23

90135020000

$3.08

21

Rubber bushing

93014017000

$1.49

22

SCREW TAPPING PAN DIA 4.8

J900000501900

$1.49

23

PLUG F. EXPANSION TANK

90135066000

$3.08

24

COMPENSATING TANK O-RING

90102055000

$1.49

25

PIPE TANK EXPANSION-CONNECTOR

J6000000517000

$1.49

26

Hose

J600000645500

Unavailable

27

CLAMP 10MM

90107018011

$2.05

28

Spring clip 9.5

J300000801000

$1.49

29

TANK ASSEMBLY EXPANSION

94535065033

$24.58

30

COVER FAN LH

94835044010

$2.05

31

GROMMET EXPANSION TANK

90135065050

$1.49

32

Strap-clip swivel

95835068000

$3.08

33

Range change metal nut M6

93008084010

$1.49

34

COVER FAN RH

94835044020

$2.05

36

O-RING 18,5X3

J770018530

$2.05

35

Hex collar screw M6X14

J025060141

$1.49
