Description

Price

1

Clutch COVER WITH PLUG - China

94330801133

Unavailable

2

GASKET CLUTCH COVER

90230027000

$5.23

3

CLUTCH RELEASE LEVER CPL.

90232048133

$11.77

4

SPRING F. RELEASE LEVER

90232048003

$2.05

5

WASHER 12,5X24X0,8MM

90132048005

$1.49

6

OIL SEAL RING

90132051000

$3.08

7

needle bearing

90132050000

$5.23

8

OIL PLUG CPL.

90130020000

$1.49

9

O-ring 14x2,4

J770001424000

$1.49

10

WIRE CIRCLIP 28X1,5

90130095001

$2.05

11

OIL GAUGE GLASS

90130095100

$5.60

12

Hex collar screw M6X35

J025060353

$1.49

13

BRACKET CLUTCH CABLE

90230059100

$5.79

14

Oill seal ring

90134127000

$5.23

15

STOPPER SHAFT SEAL RING

90230060001

$2.05

16

Hex collar screw, M6x12

J01665060123S

$11.68

17

PIN DOWEL 8X6,4X14MM

90130024000

$1.49

18

OIL JET

90130064000

$6.07

19

PULL ROD

90232048004

$7.75

20

bolt flanged-m5x0.8

J000150502000

$1.49

21

Cover. Quick-Shift sensor

94311024010

$3.08

22

Shift shaft sensor

94334051000

$95.36

23

O-RING 17,7X2,1 MM

J770017721

$1.49

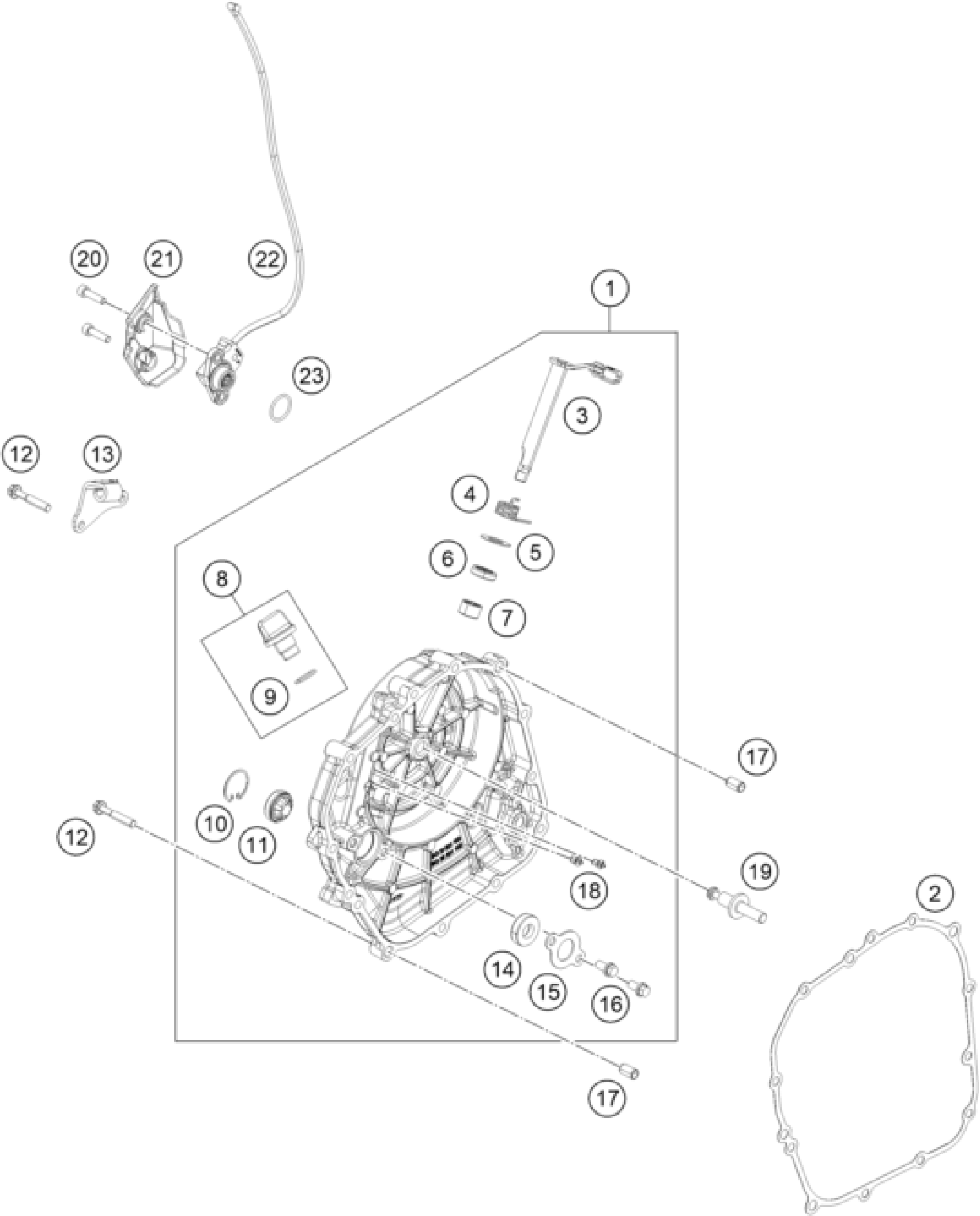

KTM KTMR2R RC 390, blue 2022 CLUTCH COVER Diagram

Clutch COVER WITH PLUG - China

GASKET CLUTCH COVER

CLUTCH RELEASE LEVER CPL.

SPRING F. RELEASE LEVER

WASHER 12,5X24X0,8MM

OIL SEAL RING

needle bearing

OIL PLUG CPL.

O-ring 14x2,4

WIRE CIRCLIP 28X1,5

OIL GAUGE GLASS

Hex collar screw M6X35

BRACKET CLUTCH CABLE

Oill seal ring

STOPPER SHAFT SEAL RING

Hex collar screw, M6x12

PIN DOWEL 8X6,4X14MM

OIL JET

PULL ROD

bolt flanged-m5x0.8

Cover. Quick-Shift sensor

Shift shaft sensor

O-RING 17,7X2,1 MM
