Description

Price

1

Air filter box

94306001000

$53.10

2

FILTER

93006015000

$22.24

3

Seal

93006020050

$1.49

4

Air filter box cover

93006002000

$10.46

5

Flat-head screw M6

93006039000

$1.49

6

Carburetor connection boot

93006001060

$2.05

7

Intake snorkel

94506040000

$7.66

8

Damping rubber

93006001080

$1.49

9

Lens head screw M6X10

J031060103

$1.49

10

TMAP-SENSOR

90141071000

$79.19

11

Engine vent hose

93030088050

$22.71

12

HOSE CLAMP

90130087001

$3.08

13

Plug

93030089000

$1.49

16

SILENT BLOCK AIRFILTER

90106001007

$5.88

17

Screw

93007046050

$6.54

18

SOCKET HEAD BOLT M6X12

90508006001

$1.49

19

hose clamp

90241002010

$5.23

20

Range change metal nut M6

93008084010

$1.49

22

Washer - plain

J125060001

$1.49

23

HH COLLAR SCREW M6X8 SW10

J026060083

$1.49

24

Rubber cowl pad

93006001015

$1.49

25

Engine vent hose

93030087050

$3.08

28

Distance piece air filter box

93006021000

$1.49

30

TUBE CONNECTING

94841040000

$18.13

21

CLAMP 16MM

90607017000

$5.23

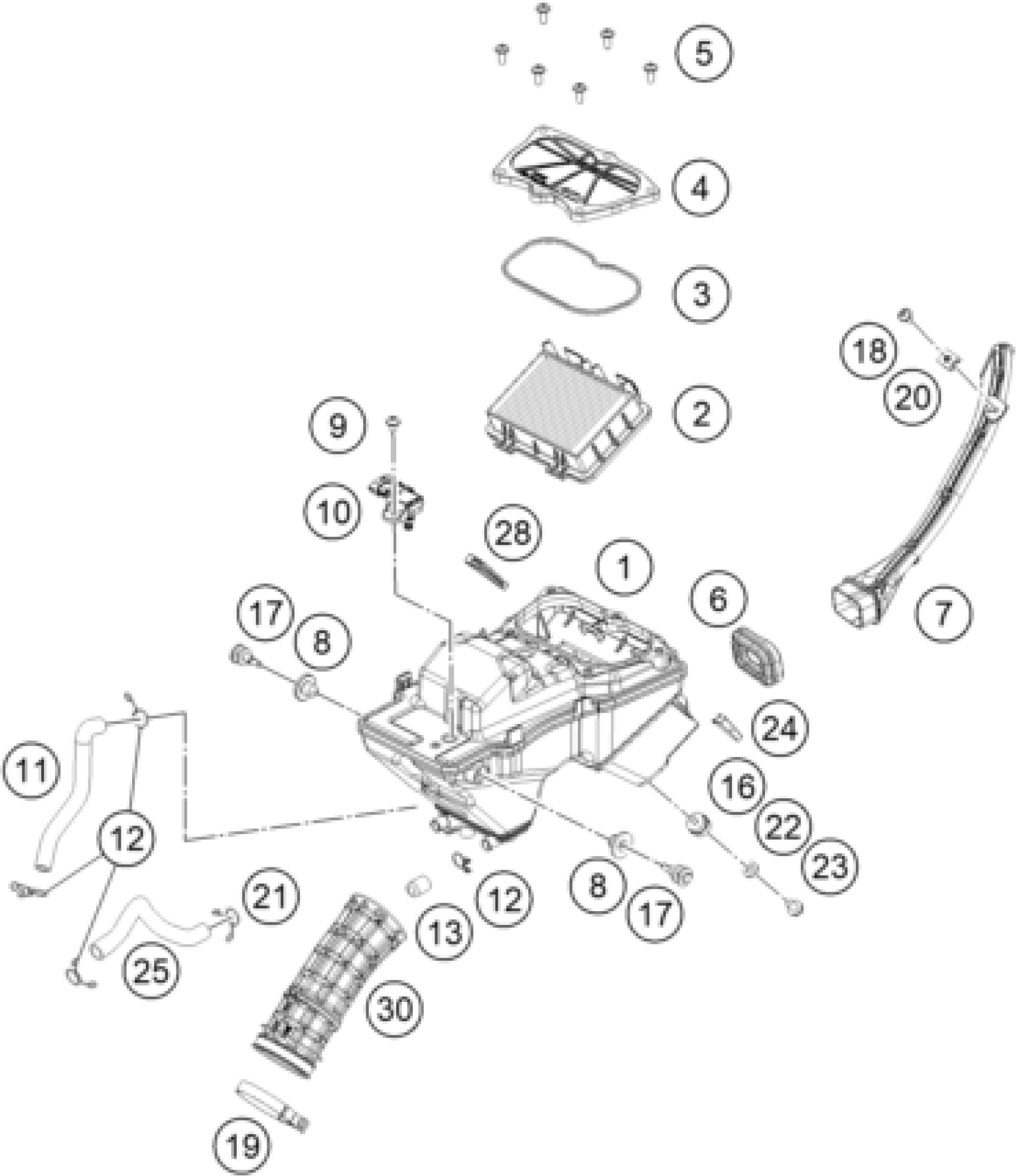

KTM KTMR2R RC 390, blue 2022 AIR FILTER Diagram

Air filter box

FILTER

Seal

Air filter box cover

Flat-head screw M6

Carburetor connection boot

Intake snorkel

Damping rubber

Lens head screw M6X10

TMAP-SENSOR

Engine vent hose

HOSE CLAMP

Plug

SILENT BLOCK AIRFILTER

Screw

SOCKET HEAD BOLT M6X12

hose clamp

Range change metal nut M6

Washer - plain

HH COLLAR SCREW M6X8 SW10

Rubber cowl pad

Engine vent hose

Distance piece air filter box

TUBE CONNECTING

CLAMP 16MM
