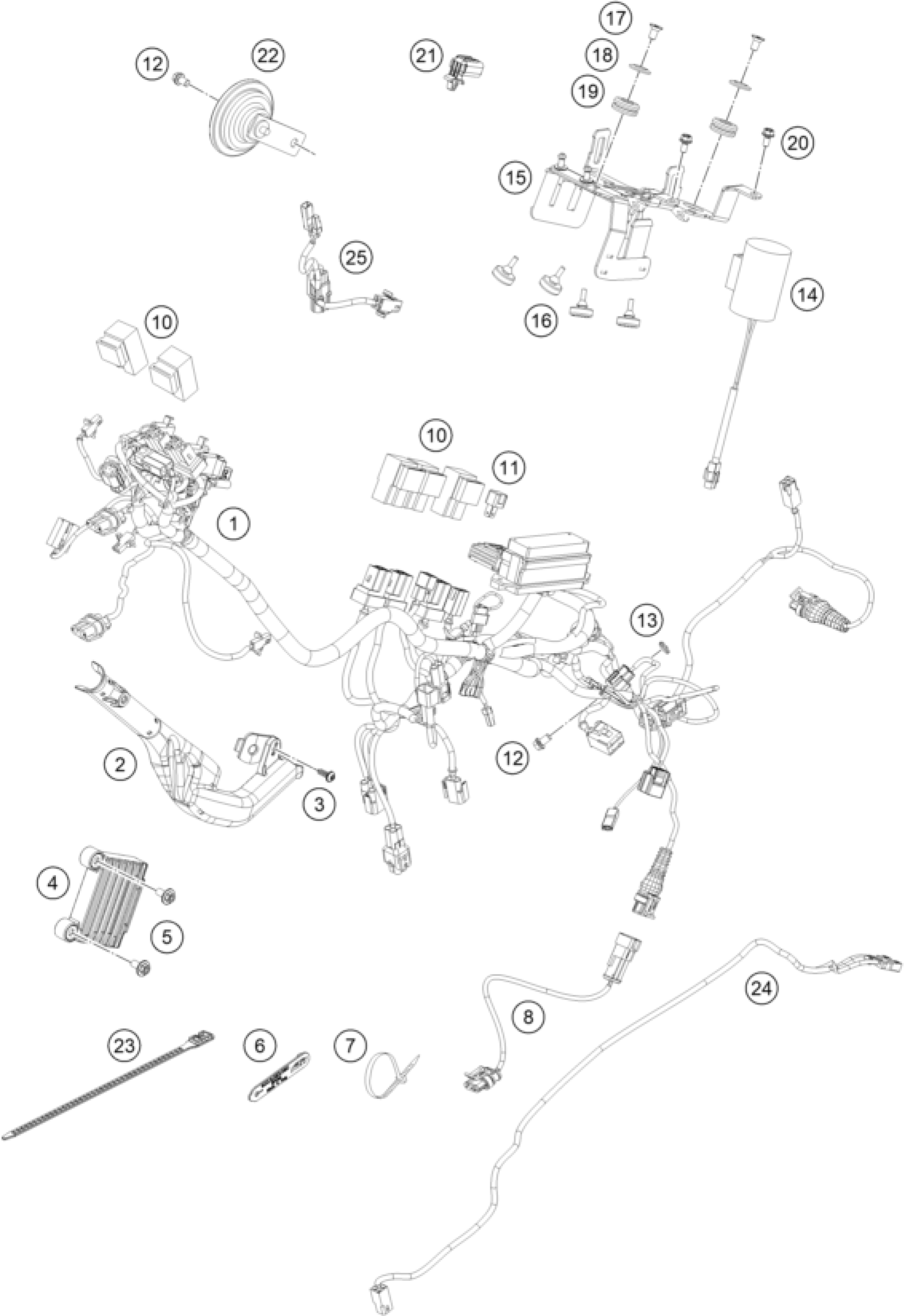

KTM KTM 450 RALLY REPLICA 2025 WIRING HARNESS Diagram

#

Description
Price

1

main harness

A58011075000

Unavailable

2

Cable duct

A58011047000

Unavailable

3

EJOT PT screw K50x14

0081050141

$1.49

4

VOLTAGE REGULATOR

79611034000

$192.32

5

HH collar screw M6x13 TX30

0024060136

$3.08

6

RUBBER CABLE TIE 60MM 03

60011093060

$4.11

7

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

7

CABLE TIE 200MM

76311093200

Unavailable

7

CABLE TIE 280MM

76311093280

Unavailable

8

Fuel pump wiring harness

A58011007000

Unavailable

10

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

11

DIODE S3H-15 97

58411096100

$9.81

12

HH collar screw M6x10 TX30

0025060106

$3.08

13

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

14

Capacitor

77711035000

$87.32

15

Electrical compartment

A58011056033

Unavailable

16

Distance rupper airbox 03

60006001021

$2.05

17

FLAT HEAD SCREW DIN7991 M6x12

0991060123

Unavailable

18

SPECIAL WASHER 7X12,5X20 BLACK

58308045000

$4.11

19

Rubber grommet

0660002301900

Unavailable

20

HH collar screw M5x10 TX30

0025050106

$1.49

21

Plug cap

000700000OU002

$24.21

22

DC HORN L.E.B. 03

50311060100

$32.44

23

Cable tie flexible 7x260

0330000726000

$1.86

24

Turn signal wiring harness rea

A58011081000

Unavailable

25

Roadbook adapter cable analog

A58011010001

Unavailable
