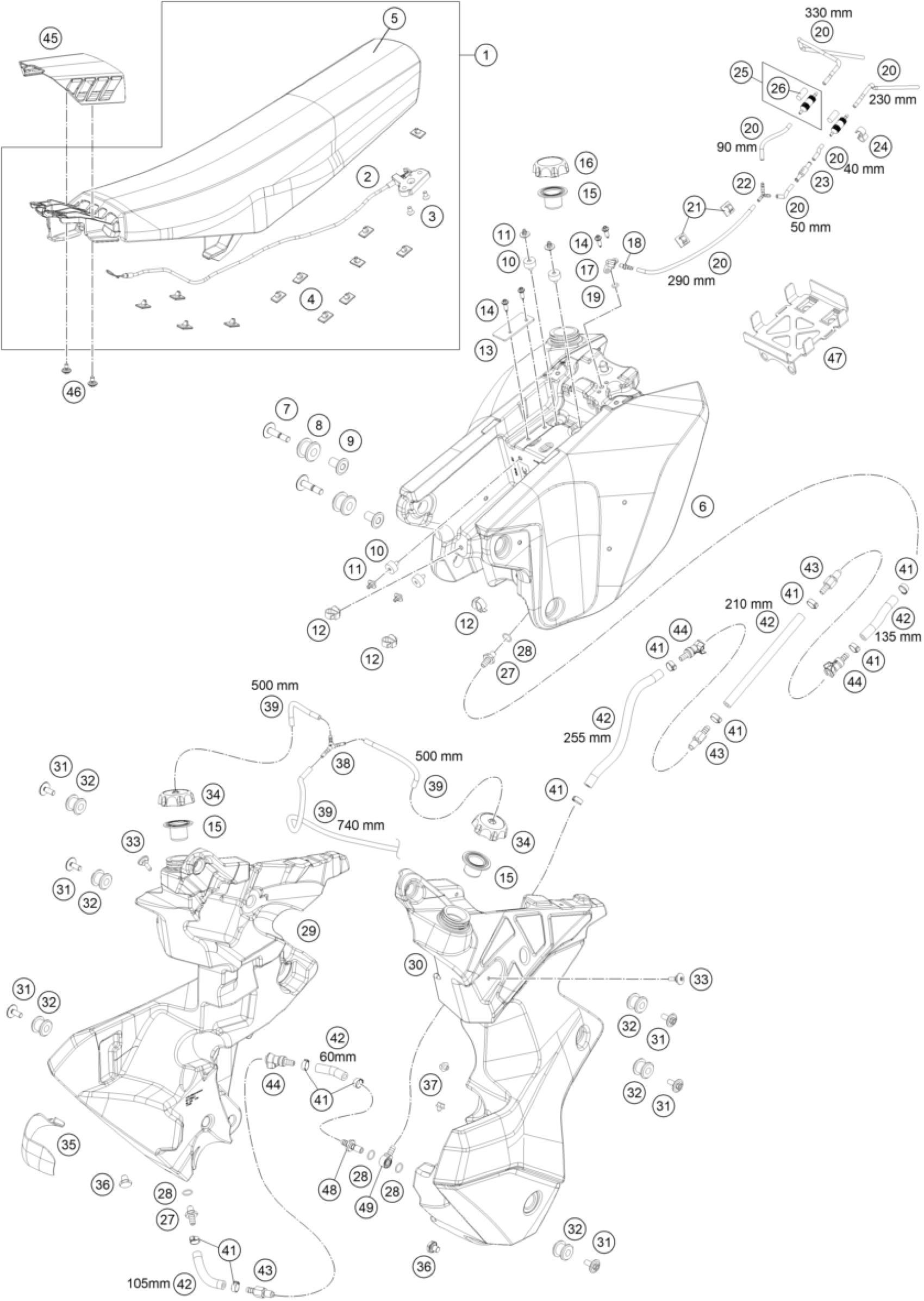

KTM KTM 450 RALLY REPLICA 2025 TANK, SEAT Diagram

#

Description
Price

1

Seat cmpl.

A58007040133

Unavailable

2

Seat lock cmpl.

A58007050033

Unavailable

3

FLAT HEAD SCREW DIN7991-M 6X12

0991060126

$2.05

4

Isolation pad

77307040041

$2.05

5

Seat cover

A58007040150

Unavailable

6

Rear tank

A5800701300028

Unavailable

7

Special screw M10

00001410045U0

Unavailable

8

Rubber grommet 24.8 x 25.5

0650002502600

Unavailable

9

Collar bushing

0800001002700

Unavailable

10

Silent block 20x10 M6x10

63503090017

Unavailable

11

Quick screw plug

A58012093050

Unavailable

12

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

13

Cable holder

A58011094000

Unavailable

14

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05

15

GASKET FOR FILLER CAP HIGH

59007009000

$8.03

16

FILLER CAP TANK RALLY

76307108000

Unavailable

17

Housing, breather valve

A58007030000

Unavailable

18

VACUUM CONECTION M6/3MM '97

58336020190

$5.23

19

O-RING 8,00X2,0 VITON

0770080201

$1.49

20

Hose 6x3 mm

76707016001

Unavailable

21

SOCKET

69015019020

$4.11

22

Y-hose connection YS4

0610000400300

Unavailable

23

VALVE FOR TANK BREATHING 02

57307019000

Unavailable

24

DISTANCE HOLDER 10/10 BLACK

60038039000

$2.05

25

Filter tank ventilation cpl.

76707031033

$59.27

26

Filter element DM12x20

76707031010

Unavailable

27

Connection component, fuel con

A58007090030

Unavailable

28

O-ring d14x1.8

0770001400200

Unavailable

29

Front tank right

A58007037000C1

Unavailable

30

Front tank left

A58007036000C1

Unavailable

31

Special screw M8

00001408020U0

Unavailable

32

Rubber grommet 29 x 24

0650002902400

Unavailable

33

Seat holder screw

79107011000

$3.08

34

TANK CAP

76407108000

$93.96

35

Tank heat protection

A58007095000

Unavailable

36

Screw plug M10

A58007090040

Unavailable

37

Plug-in base

76711094010

Unavailable

38

Y-hose connection YS5

0610000500400

Unavailable

39

HOSE EPA D=6/10 PER METER

78015019001

$62.64

41

Variable one-ear clamp 15.7mm

00050157706

$5.23

42

Fuel hose 7.5x3.5 per m.

60007316001

Unavailable

43

Plug CPC black 05

5850701030030

$43.28

44

Clutch CPC PLCD17005, black

5850701050030

$55.90

45

Air intake

A58008011000

Unavailable

46

special screw M6x12x3

83008000012

$3.08

47

LED-Modul

A58012093000

Unavailable

48

Connection component fuel conn

A58007090010

Unavailable

49

Fuel connection, moveable

A58007090000

Unavailable
