Description

Price

1

Swingarm cmpl. Rallye 25

A58004030144

Unavailable

2

Bucket f. shaft seal ring 03

54804034000

$5.23

3

radial shaft seal 25x32x7

0760253270

$6.63

4

Bearing sleeve 17x22x38.7 03

59404032000

$10.09

5

Needle bushing HK2212V 22/28/1

0618222812

$9.81

6

STOP DISK 22,2X31,7X1

54603036000

$3.08

7

Chain slider, left

A46004066000

$18.04

8

Chain slider bushing

77304066150

$1.49

9

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.05

10

Brake line guide

A46004042000

$7.56

11

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

12

Locking cap swingarm

A46004041000

$1.49

16

Chainguard

A49004060000

$26.92

19

Washer DIN9021-A 6.4

0021060003

$2.05

17

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05

20

Chainguide SX

A46004070000

$44.22

21

HH collar screw M6x50 TX30

0025060506

$3.08

22

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.05

14

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

15

screw M10x1.25x50 WS10

50304040100

$5.23

13

PRESS IN NUT M6 STEEL ZINC

54603055051

$2.05

18

Self locking nut M6 - 10

56509064100

$2.05

23

Swingarm pivot

A46004037000

$70.96

24

Nut with flange M16X1,5 WS=19

54804038000

$2.05

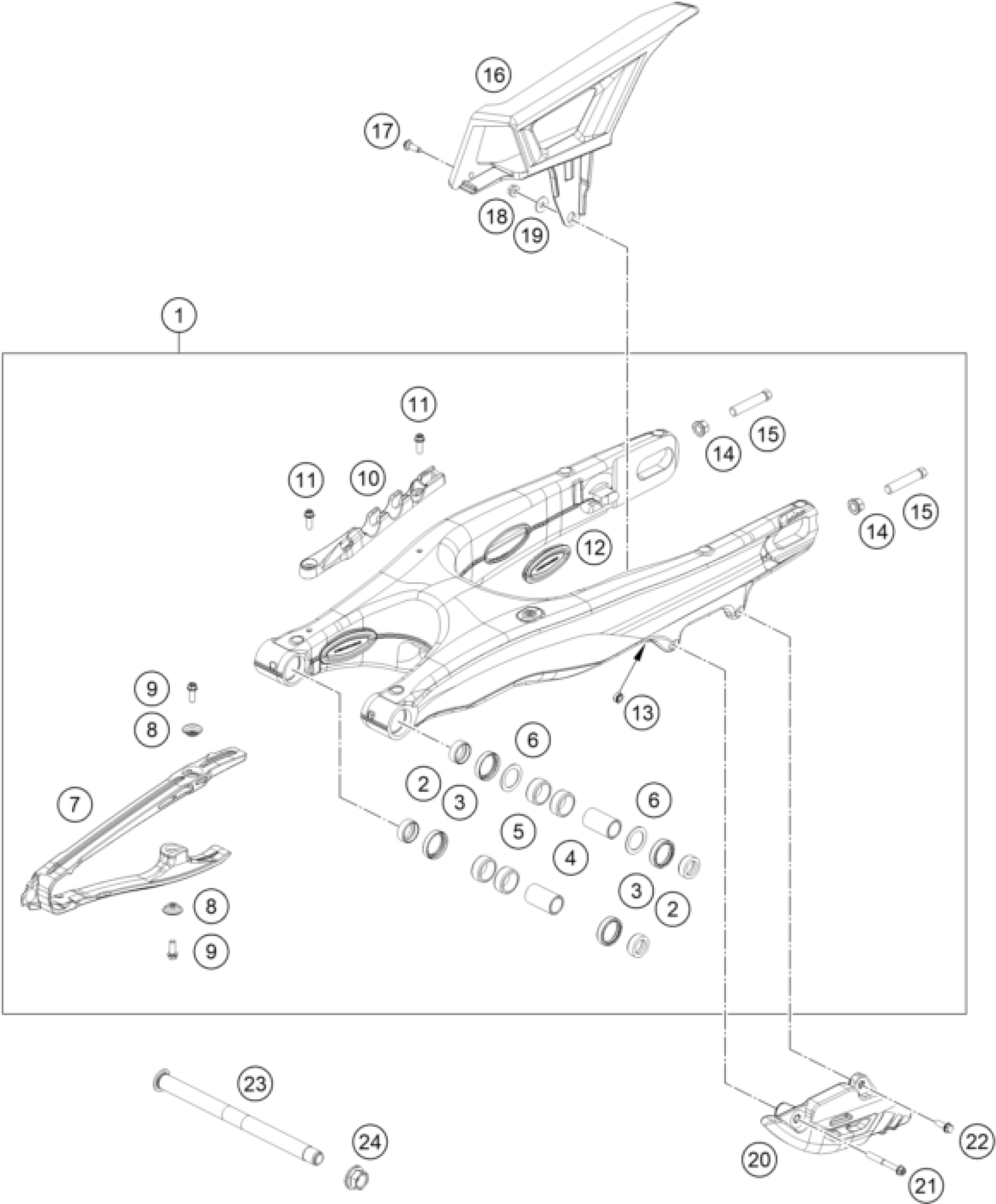

KTM KTM 450 RALLY REPLICA 2025 SWING ARM Diagram

Swingarm cmpl. Rallye 25

Bucket f. shaft seal ring 03

radial shaft seal 25x32x7

Bearing sleeve 17x22x38.7 03

Needle bushing HK2212V 22/28/1

STOP DISK 22,2X31,7X1

Chain slider, left

Chain slider bushing

SPECIAL SCREW M6X16 WS=8 10.9

Brake line guide

HH collar screw M6x16 TX30 SL

Locking cap swingarm

Chainguard

Washer DIN9021-A 6.4

SCREW FOR PLASTIC K60X20 SW6

Chainguide SX

HH collar screw M6x50 TX30

SPECIAL SCREW M6X16 WS=8 10.9

HH COLLAR NUT M10X1,25 WS=13

screw M10x1.25x50 WS10

PRESS IN NUT M6 STEEL ZINC

Self locking nut M6 - 10

Swingarm pivot

Nut with flange M16X1,5 WS=19
