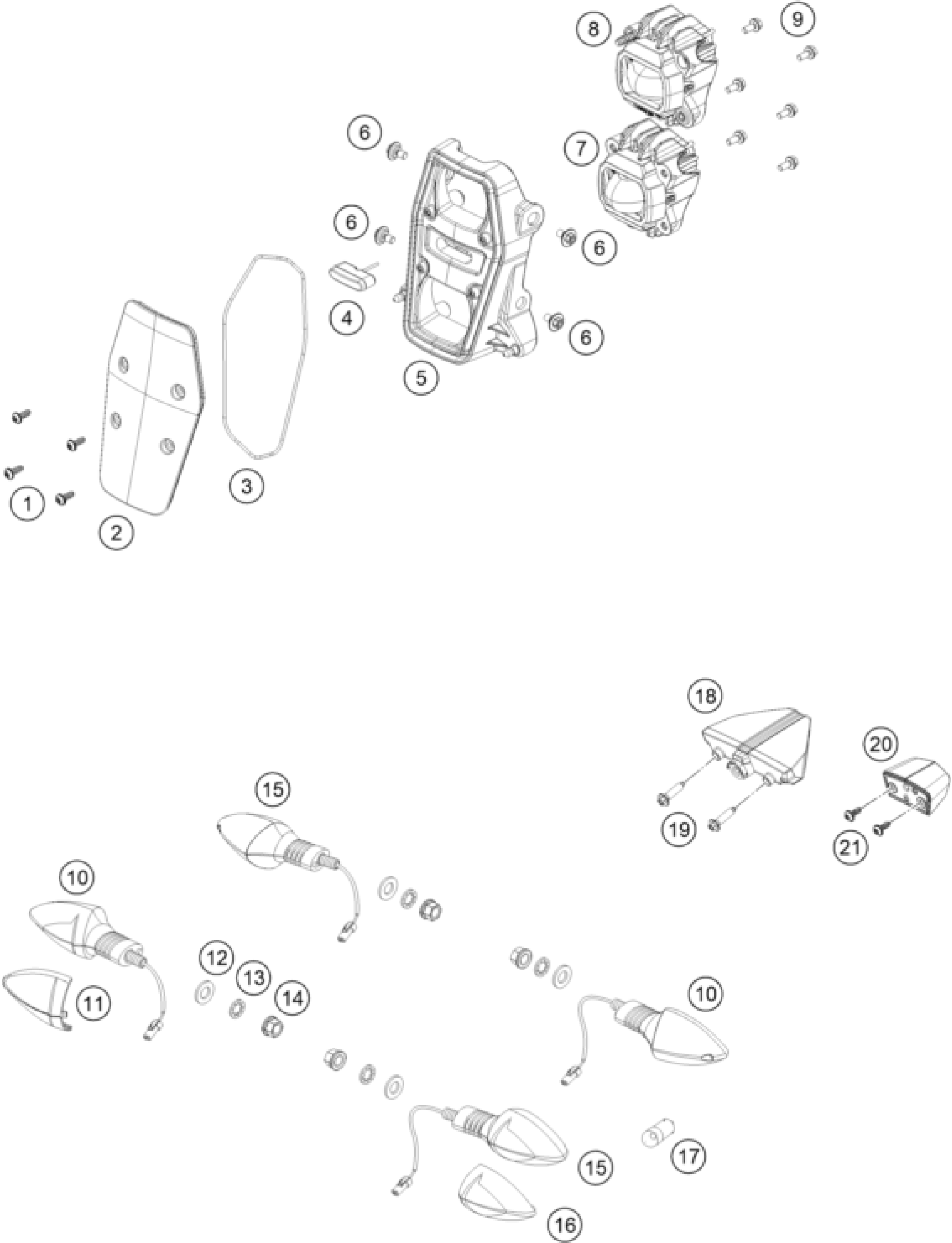

KTM KTM 450 RALLY REPLICA 2025 LIGHTING SYSTEM Diagram

#

Description
Price

1

EJOT PT screw K50x14

0081050141

$1.49

2

Headlight protection

A58014044100

Unavailable

3

Seal Line CR foamed DM 3

X1077001050

Unavailable

4

Position light

A58014004000

Unavailable

5

Headlight carrier

A58014010100

Unavailable

6

special screw M6x12x3

83008000012

$3.08

7

LED module high beam

T02914021000

Unavailable

8

LED module low beam

T02914020000

Unavailable

9

HH collar screw M5x12 TX30

0025050126

$3.08

10

FLASHER CPL.FRONT R/S REAR L/S

78114026000

$32.72

11

FLASHER LENS L/S R/S TRANSP.

78114028000

Unavailable

12

washer DIN 125 A 10.5

0125100003

$2.05

13

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

14

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

15

FLASHER CPL.FRONT L/S REAR R/S

78114025000

$32.72

16

FLASHER LENS FRO.L/S-REAR R/S

78114027000

Unavailable

17

BULB 12V ORANGE (RY10W)

60114027000

Unavailable

18

Tail light

79714040000

$92.74

19

EJOT PT SCREW K60X25-Z SW6

0017060255

$3.08

20

license plate lighting

60314047000

$35.62

21

EJOT PT screw K50x12

0081050121

$2.05
