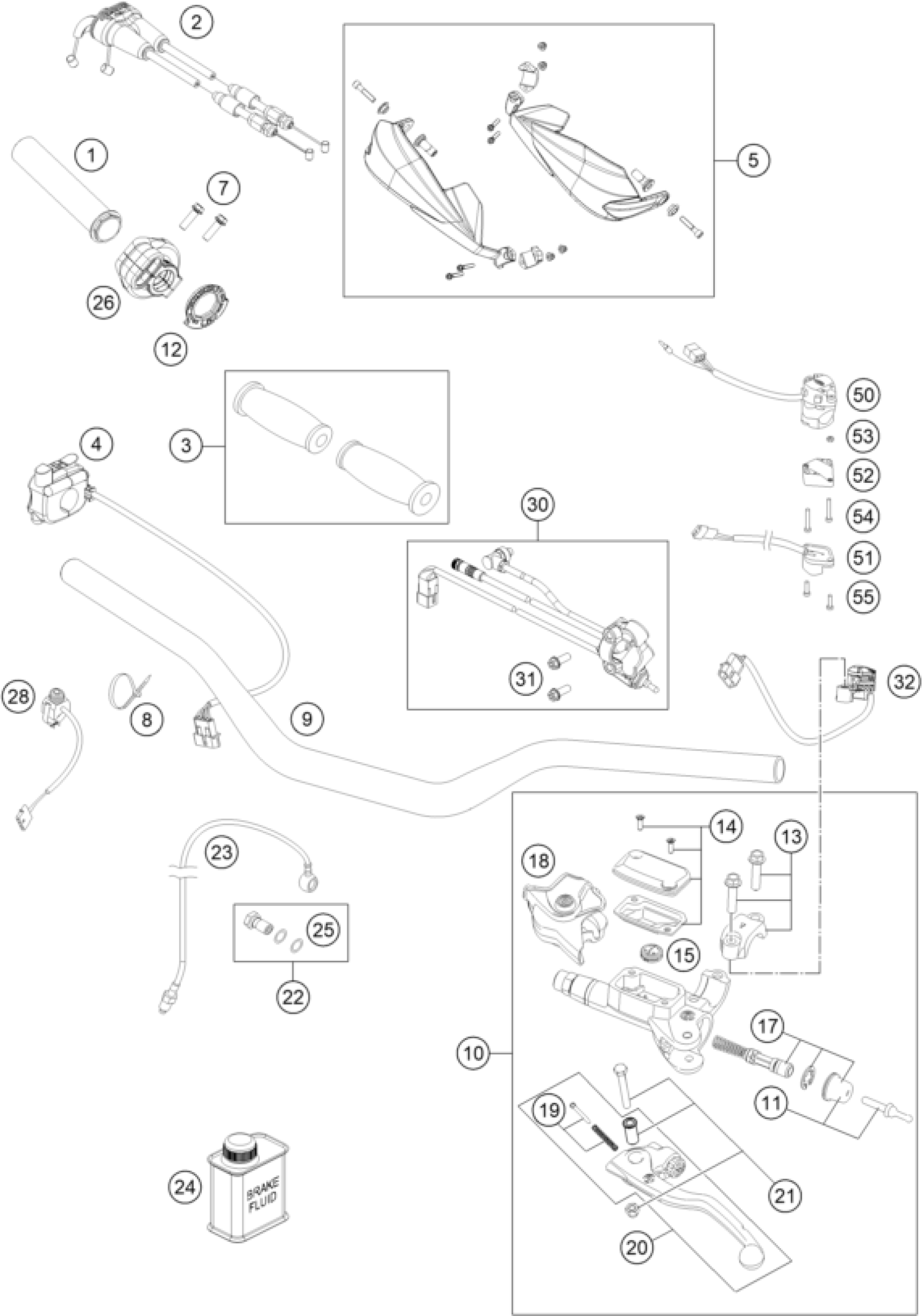

KTM KTM 450 RALLY REPLICA 2025 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

Throttle tube

76702013050

$21.24

2

Throttle cable complete 4 stro

A46002091000

$85.45

3

RUBBER GR. PRO GRIP 06

58502139044

$22.34

4

START-STOP SWITCH

77711074000

Unavailable

5

HANDGUARD CLOSED WHITE

7800207920028

$59.75

7

HH collar screw M6x20 TX30

0025060206

$3.08

8

Cable tie 200/4.6mm black

44011076200

$1.49

9

HANDLEBAR BLACK

7640210100030

Unavailable

10

MASTER CYLINDER CPL.

54802030144

$240.57

11

Push rod cmpl.

54802046000

$23.46

12

CAM 4-T 36 MM

79002014000

$2.40

13

CLAMP CPL. 06

54802005100

$25.80

14

COVER HYD. CLUTCH CPL. 2014

5480200310030

$35.52

15

VALVE

54802051000

$19.16

17

REP. KIT PISTON 06

54802032000

$49.92

18

PROTECTION CAP 06

54802037000

$20.94

19

BOLT KPL.

54802052000

$29.35

20

Clutch lever cmpl. BREMBO 06

54802031000

$45.15

21

Lever screw cmpl. 06

54802038100

$39.82

22

HOLLOW SCREW + COPPER GASKET

59032062000

$25.05

23

CLUTCH PIPE

78132063000

$107.14

24

Brake fluid DOT5.1 0,25L

00062030000

$12.52

25

COPPER GASKET

59413013050

$6.63

26

Housing throttle twist grip cp

A46002010025

$24.58

28

STARTER BUTTON GREY 13

78111074000

$42.91

30

Switch for roadbook and tripma

A58012075044

Unavailable

31

Hex collar screw M6x16 ISA

0025060163

Unavailable

32

Fuel pump switch cpl.

76711006044

Unavailable

50

Light switch

76711070000

$118.18

51

FLASHER SWITCH CEV '98

50311029000

$51.98

52

ADAPTER FOR FLASHER SWITCH '98

13011070060

$5.23

53

HEXAGON NUT DIN0934-M 4

0934040003

$1.49

54

CYL.HEAD SCREW DIN0084-M 4X22A

0084040223

$1.49

55

FLAT HEAD SCREW DIN7985-M 4X16

0985040163

$2.05
