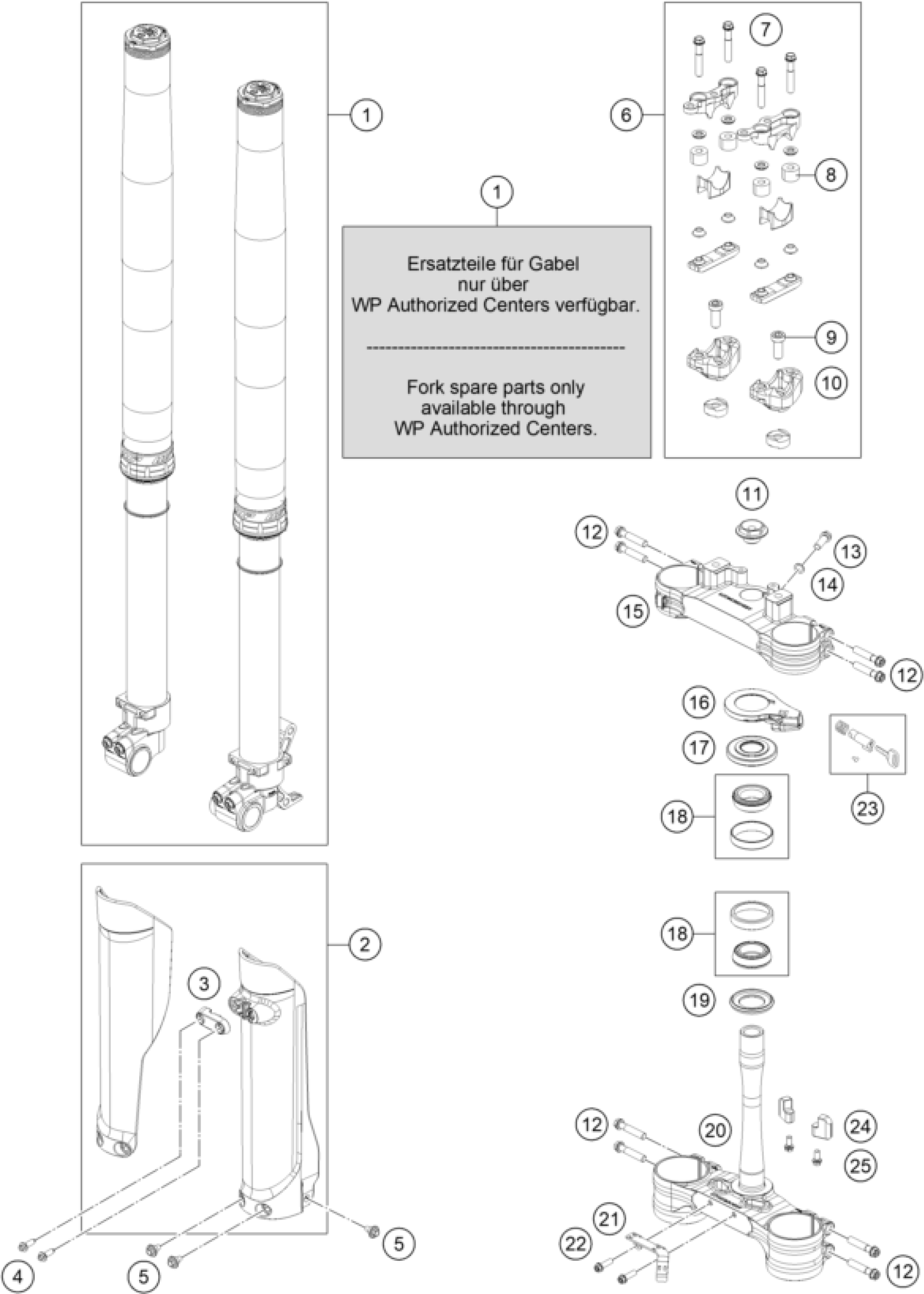

KTM KTM 450 RALLY REPLICA 2025 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

Fork Rally Replica 2025

A580C140Y403200

Unavailable

2

fork protection kit

A46001094000AB

Unavailable

3

Clamp for brake hose

77701085100AB

$2.05

4

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

5

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

6

Handlebar mount Rally cmpl.

76702004033

Unavailable

7

HH COLLAR SCREW M 8X45 WS=10

0015080453

$2.05

8

ELASTOMER GREEN/SOFT

SXS05125203

Unavailable

8

ELASTOMER YELLOW/MEDIUM

SXS05125204

$32.29

8

ELASTOMER RED/HARD

SXS05125205

Unavailable

9

AH SCREW DIN0912-M10X25 10.9

0912100256

$4.11

9

AH-COLLAR SCREW M10X35 ISA45

0032100356S

Unavailable

10

BASE SUPPORT

SXS07125206

$34.85

11

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

$11.21

12

HH COLLAR SCREW M8X40 TX40

0025080406

$4.11

13

HH COLLAR SCREW M8X25 WS=10

0015080256S

$3.08

14

LOCK WASHER 8MM

36003014000

$2.05

15

Top triple clamp X=23 mm

A5800103502304

Unavailable

16

Steering lock

A49002065000

$41.97

17

Steering head seal

A46001086000

$22.43

18

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

19

O-RING SUPPORT W. SEALING LIP

77701084000

$19.35

20

Bottom triple clamp X=23 mm

A5800103202304

Unavailable

21

Brake hose bracket

A58013026200

Unavailable

22

HH collar screw M6x20 TX30

0025060206

$3.08

23

Steering lock

78003035100

$20.94

24

Steering stop

A58001026000M01

Unavailable

25

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05
