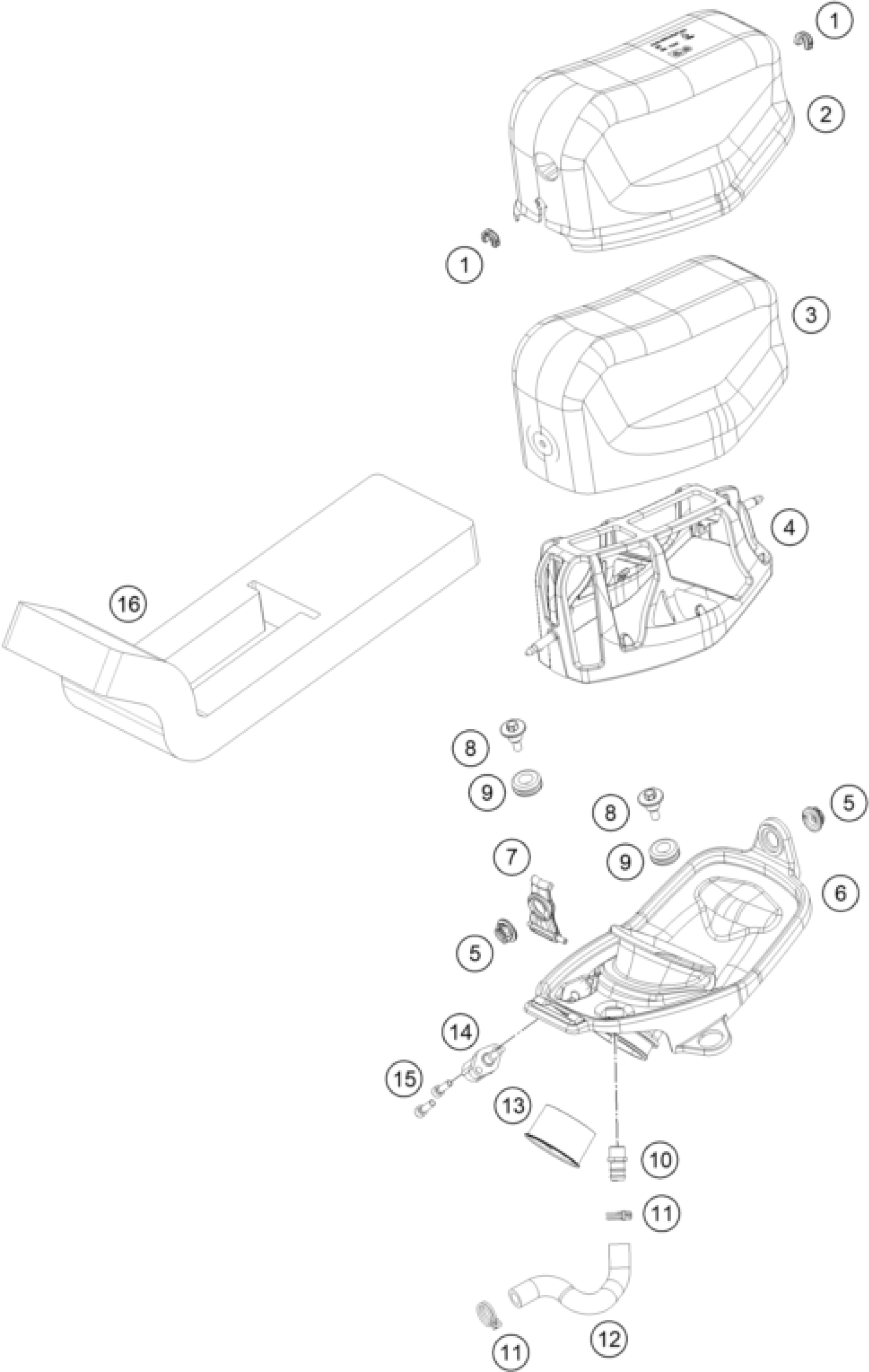

KTM KTM 450 RALLY REPLICA 2025 AIR FILTER Diagram

#

Description
Price

1

cable bushing mask carrier

64114010040

Unavailable

2

Air filter box lid

A58006017000

Unavailable

3

Airfilter

A58006115000A

Unavailable

4

Air filter box

A58006115020

Unavailable

5

quick release rubber grommet

47106003160

$4.11

6

Air filter support

A58006116000

Unavailable

7

Air filter holding bracket

A46006017000

$9.34

8

SPECIAL SCREW M6X21 WS=8

60035001000

$3.08

9

RUBBER SLEEVE D=12MM

41001052000

$4.11

10

BLEEDER FLANGE M12X1,5 WS=13

59030022100

$7.85

11

CLAMP YDNAC 10173 (18MM)

58431082300

$2.05

12

Engine vent hose

A58030087000

Unavailable

13

THROTTLE VALVE

78106012050

$2.05

14

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

$23.74

15

AH collar screw DIN 912 M5x16

0912050163

$1.49

16

Air filter soundproofing

A58006017050

Unavailable
