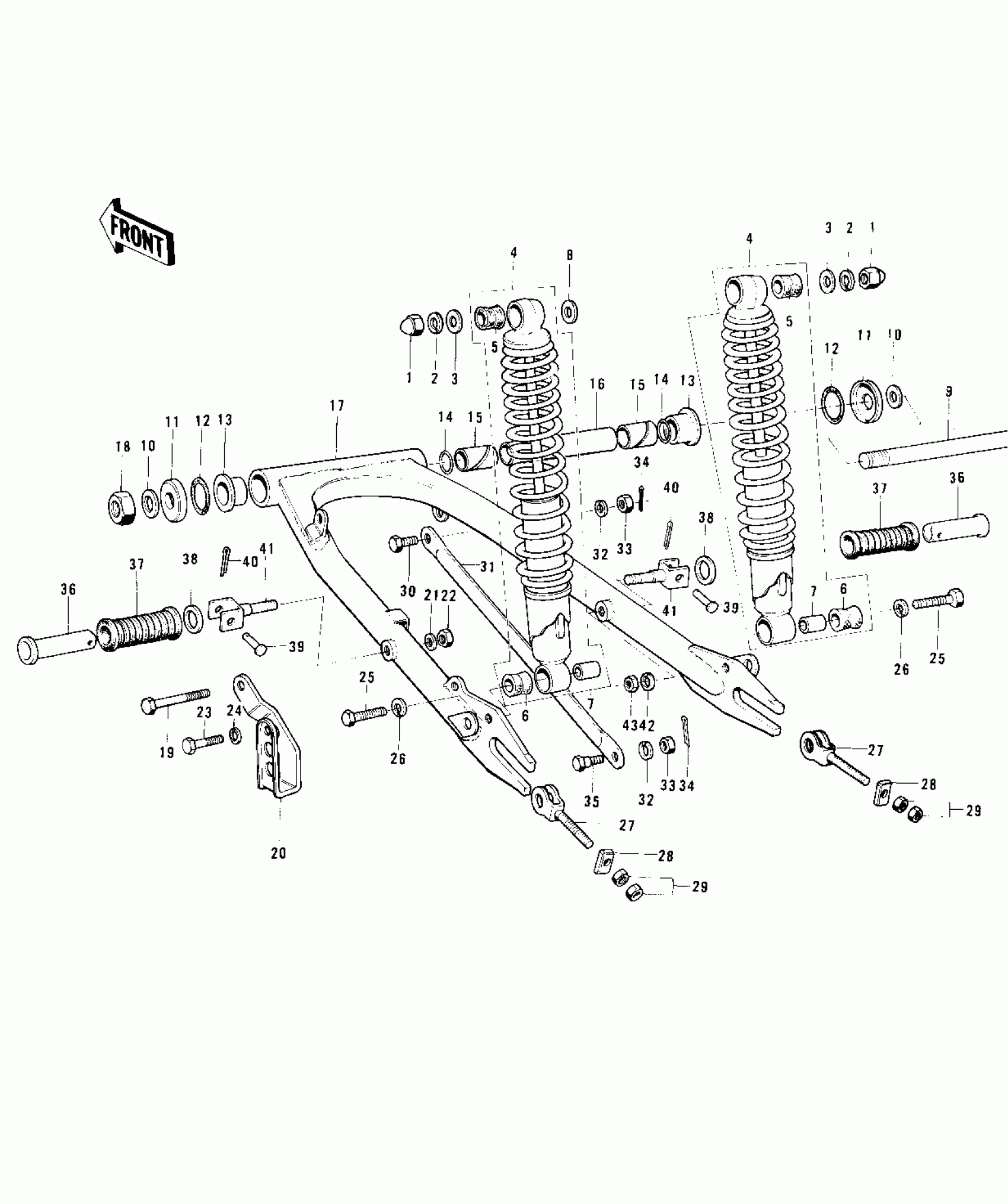

Kawasaki KS125-A SWING ARM/SHOCK ABSORBERS ('74-'75) Diagram

#

Description
Price

1

NUT,CAP,10MM

92020-003

$4.88

2

WASHER SPRING 10MM

461F1000

Unavailable

3

WASHER,10.5X26X2.3

92022-044

$2.99

4

SHOCK ABSBR RR

45014-113

$264.13

5

BUSH A-SHCK ABS RUBER

45017-010

Unavailable

6

DAMPER,SHOCKABSORBER

92075-1020

$4.34

7

COLLAR,SHOCKABSORBER

45016-003

$15.05

8

WASHER-PLAIN-SMALL,12MM

410B1200

Unavailable

9

SHAFT-SWING ARM

33032-034

$39.04

10

WASHER-PLAIN-SMALL,12MM

410B1200

Unavailable

11

CAP-SWINGING ARM

33035-005

Unavailable

12

"0" RING,30MM

671B2530

$3.85

13

BUSHING-SWING ARM

33033-009

$103.86

14

O RING,16MM

670B2016

$1.04

15

SLEEVE-SWINGING ARM

33034-016

$21.36

16

COLLAR,SWING ARM,LONG

33036-007

$9.49

17

ARM,SWINGING

33001-063

$170.76

18

NUT-LOCK,12MM

92019-009

$7.20

19

BOLT,HEX HEAD,10X50

92001-1254

$3.34

20

GUARD,CHAIN

55020-016

Unavailable

21

WASHER SPRING 10MM

461F1000

Unavailable

22

NUT-HEX-FINE,10MM

314B1000

Unavailable

23

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

24

WASHER SPRING 8MM

461F0800

Unavailable

25

BOLT HEX HEAD 10X35

113N1035

Unavailable

26

WASHER SPRING 10MM

461F1000

Unavailable

27

ADJUSTER,CHAIN

33040-057

Unavailable

28

PLATE,CHAIN ADJUSTER

33041-002

Unavailable

29

NUT,8MM

311B0800

Unavailable

30

BOLT,HEX HEAD,AX24

92003-143

Unavailable

31

TORQUE LINK,REAR BRK

43007-039

Unavailable

32

WASHER SPRING 8MM

461F0800

Unavailable

33

NUT,8MM

320B0800

Unavailable

34

PIN-COTTER,2.0X20

550D2020

Unavailable

35

BOLT,RR TORQUE LINK

92003-144

Unavailable

36

STEP,RR

34028-009

$24.51

37

RUBBER,REAR FOOTREST

92076-024

$20.16

38

WASHER-PLAIN (OPT)

92022-199

Unavailable

39

PIN,6X28

92043-1464

$6.18

40

PIN-COTTER,2.0X12

550D2012

$0.89

41

BRACKET,REAR FOOTREST

34029-013

Unavailable

42

WASHER SPRING 10MM

461F1000

Unavailable

43

NUT-HEX-FINE,10MM

314B1000

Unavailable
