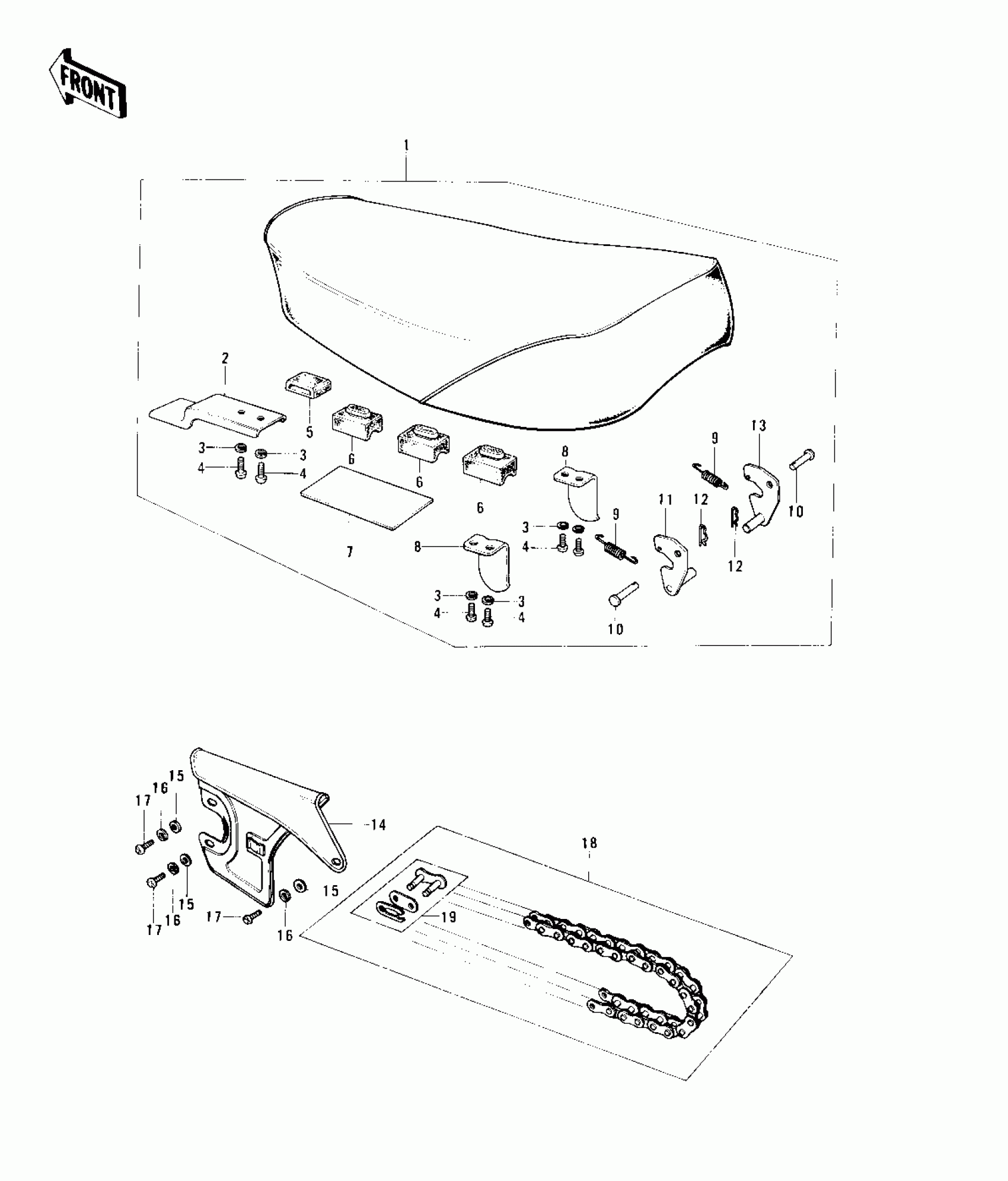

Kawasaki KS125-A SEAT/CHAIN COVER/CHAIN ('74-'75) Diagram

#

Description
Price

1

SEAT ASSY,DUAL

53002-068

$282.46

2

BRACKET,DUAL SEAT

53032-005

$10.61

3

WASHER SPRING 6MM

461F0600

Unavailable

4

SCREW-PAN-CROS,6X14

220B0614

$1.14

5

DAMPER,SEAT

92075-219

Unavailable

6

DAMPER,SEAT

92075-216

Unavailable

7

DAMPER RUBBER,BATERY

92075-224

Unavailable

8

STOPPER,SEAT

53059-001

$12.51

9

SPRING,HOOK

53012-013

Unavailable

10

PIN DUAL SEAT PIVOT

53011-001

$4.92

11

HOOK,SEAT,L.H

53008-028

$4.66

12

COTTER PIN

92041-003

$4.35

13

HOOK,SEAT,R.H

53008-029

$5.15

14

CASE-CHAIN,FR BLACK

36014-051-21

Unavailable

15

WASHER PLAIN

92022-024

$2.76

16

WASHER SPRING 6MM

461F0600

Unavailable

17

SCREW-PAN-CROS,6X14

220B0614

$1.14

18

DR CHAIN 428X118H

92057-030

$100.54

19

JOINT ASSY DRIVE CHAIN

92058-005

Unavailable
