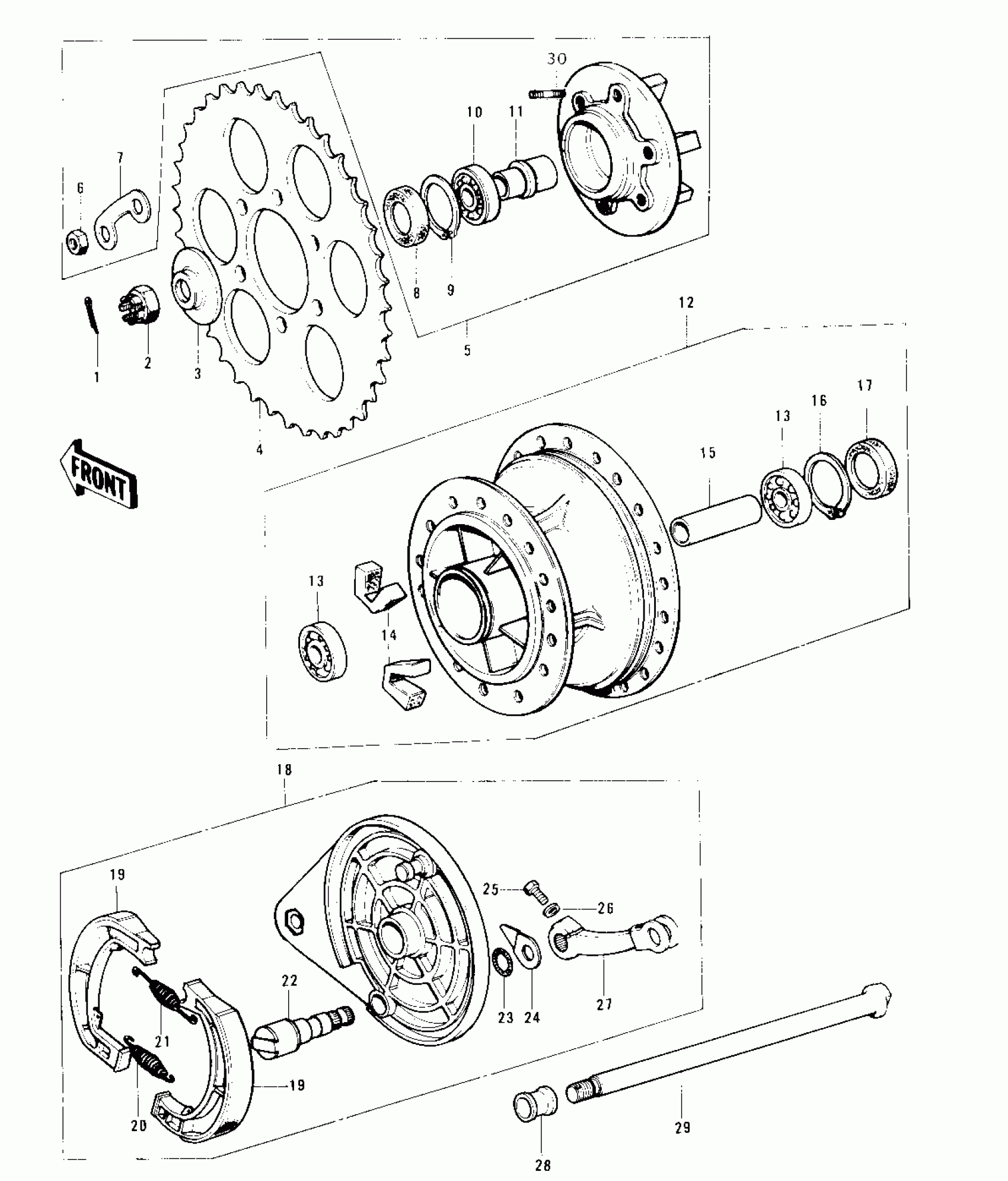

Kawasaki KS125-A REAR HUB/BRAKE ('74-'75) Diagram

#

Description
Price

1

PIN-COTTER,4.0X35

550D4035

$1.57

2

NUT,CASTLE,14MM

92103-006

$24.24

3

COLLAR,REAR AXLE,L.H

42032-048

$82.37

4

REAR SPROCKET.50T

42041-146

Unavailable

5

COUPLING ASSY,RR HUB

42008-031

$117.57

6

NUT,8MM

311B0800

Unavailable

7

WASHER,SPROCKET LOCK

92088-019

$5.42

8

SEAL-OIL,26X42X8

92050-060

$16.98

9

RING-SNAP,42MM

92033-1041

$4.64

10

BEARING-BALL,#6004C3

601B6004

$9.44

11

SLEEVE,RR HUB COUPLNG

42036-018

$23.42

12

DRUM ASY,RR BK,BUFF

42005-038-80

$231.38

13

BEARING-BALL,#6202C3

601B6202

$6.58

14

DAMPER,REAR HUB SHOCK

42014-023

Unavailable

15

SPACER,RR HUB BEARING

42010-029

$20.71

16

CIRCLIP-TYPE-C,35MM

481J3500

$1.42

17

OIL SEAL,22X35X8

654A223508

Unavailable

18

PANEL ASY,RR BK,BUFF

42006-044-80

$196.20

19

SHOE,BRAKE

42019-010

$33.96

20

SPRING,BRAKE SHOE

92081-1550

$9.20

21

SPRING,BRAKE SHOE

92081-1766

$6.13

22

CAM SHAFT,REAR BRAKE

42026-025

$16.97

23

RING-O,BRAKE CAM

92055-004

$4.25

24

INDICATOR,BRAKE SHOE

41085-002

$13.20

25

BOLT 6X22

112B0622

Unavailable

26

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

27

LEVER,REAR BRAKE CAM

42029-030

$78.66

28

COLLAR,REAR AXLE,R.H

42032-047

Unavailable

29

AXLE,REAR

42031-046

$72.59

30

STUD,8X17

92004-1015

$4.59
