1975 Kawasaki KS125-A Oil Pump Diagram

← All diagrams

Find the part on the Oil Pump diagram for your 1975 Kawasaki KS125-A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

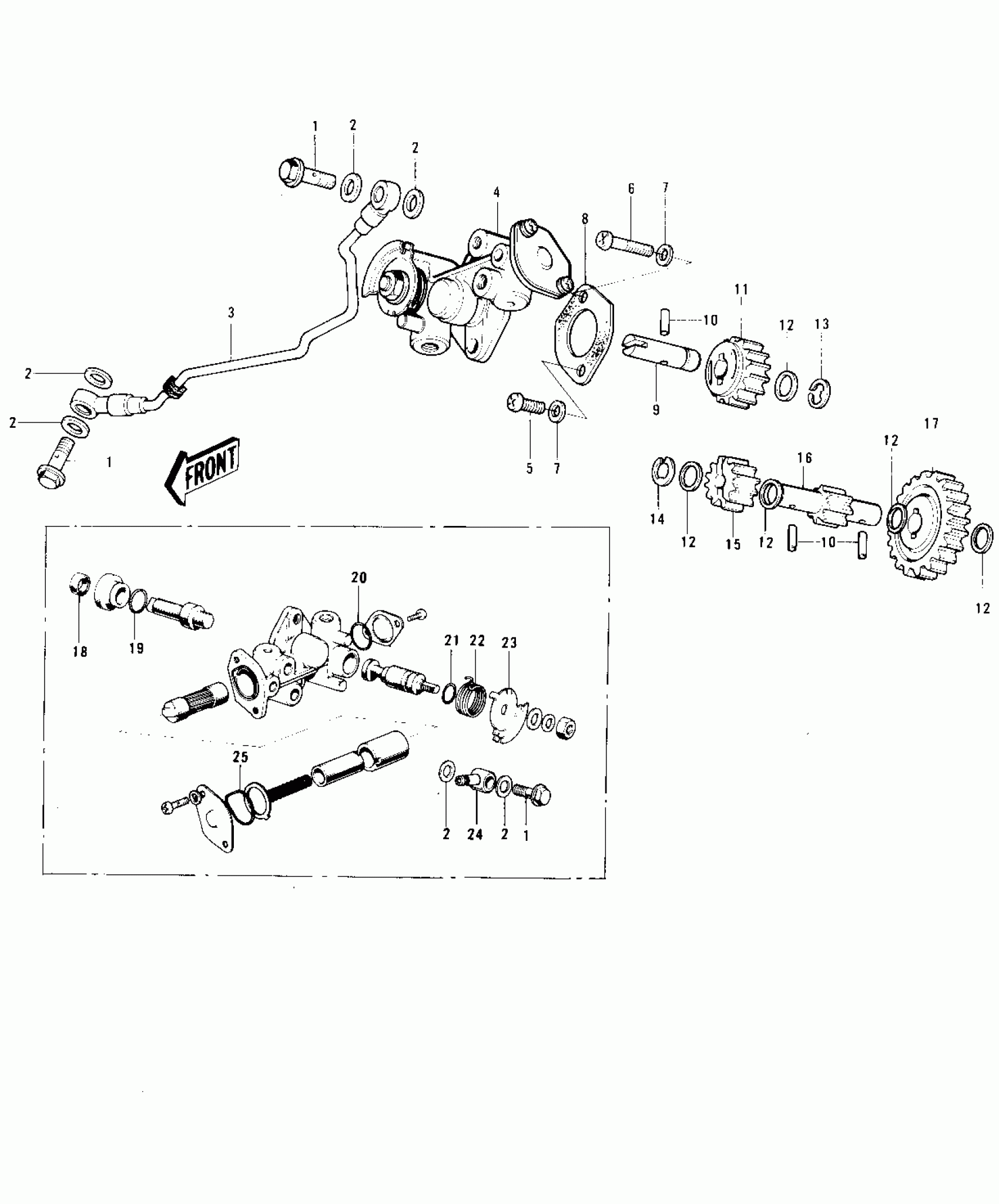

1975 Kawasaki KS125-A Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

WASHER OIL PUMP BANJO

92022-077

1
Out of stock

3

PIPE,OIL

16134-022

1
Out of stock

4

OIL PUMP ASSY

16082-069

1
Out of stock

4

OIL PUMP ASSY

16082-069

1
Out of stock

5

SCREW-PAN-CROS

220B0514

1
Out of stock

6

SCREW-PAN-CROS

220B0528

1
Out of stock

7

WASHER,5.5X10.5X0.8

92022-037

1
Out of stock

8

GASKET,OIL PUMP

11060-1160

1
Out of stock

9

SHAFT,OIL PUMP GEAR

16086-003

1
Out of stock

10

PIN,DOWEL

92042-035

1
Out of stock

11

GEAR,OIL PUMP

16085-021

1
Out of stock

12

WASHER,THRUST

92026-095

1
Out of stock

13

CIRCLIP-TYPE-E,7MM

482J7000

1
Out of stock

14

CIRCLIP-TYPE-E,6MM

482J6000

1
Out of stock

15

GEAR,OIL PUMP

16085-020

1
Out of stock

16

PINION,TACHOMETER

13224-010

1
Out of stock

17

GEAR,OIL PUMP

16085-022

1
Out of stock

18

SEAL-OIL,OIL PUMP SHAFT

16091-001

1
Out of stock

19

RING-O,OIL PUMP SHAFT

16090-002

1
Out of stock

20

"0" RING,LOWER CAP

16090-003

1
Out of stock

21

SEAL-OIL,CAMSHAFT,"X"TYPE

92049-1294

1
Out of stock

22

SPRING,OIL PUMP LEVER

16093-007

1
Out of stock

23

LEVER,OIL PUMP CABLE

16096-014

1
Out of stock

24

FITTING,BANJO

92061-009

1
Out of stock

25

RING-O,CAP,BANJO SIDE

16088-002

1
Out of stock
