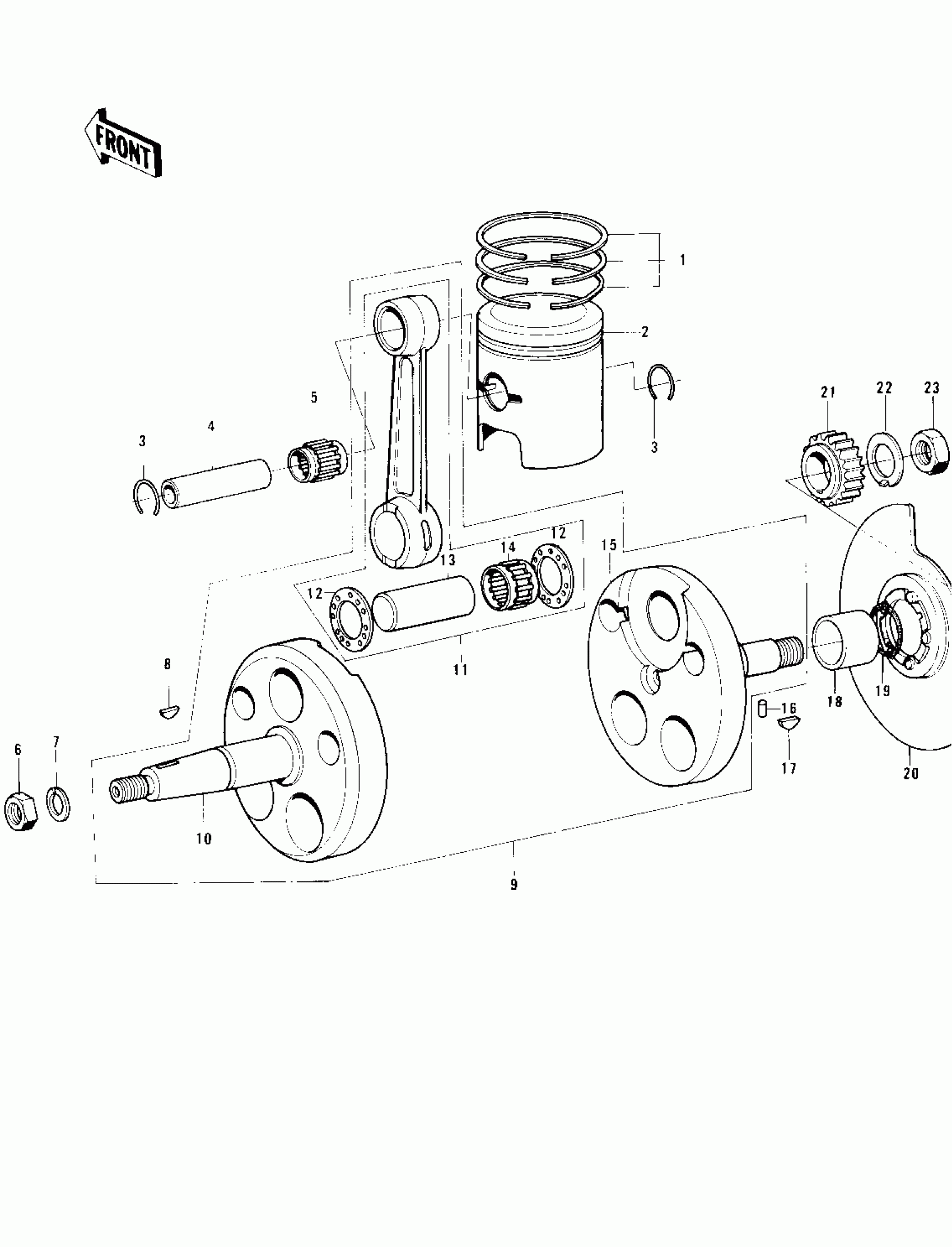

Kawasaki KS125-A CRANKSHAFT/PISTON/ROTARY VALVE ('74-'75) Diagram

#

Description
Price

1

RING SET,STD

13008-050

Unavailable

2

PISTON,STD

13001-072

Unavailable

3

RING-SNAP,PISTON PIN

92036-003

$0.55

4

PIN-PISTON

13002-1002

Unavailable

5

BRG,N,UR14/20AP-1

13033-035

Unavailable

6

NUT-HEX-FINE,10MM

314B1000

Unavailable

7

WASHER SPRING 10MM

461F1000

Unavailable

8

KEY-WOODRUFF

510A3200

$1.87

9

CRANK AND CONROD ASSY

13031-1003

Unavailable

10

CRANKSHAFT,L.H

13037-059

Unavailable

11

CONNECTING ROD SET

13044-5003

Unavailable

12

SHIM,20X34.5X1.0

92025-005

$8.63

13

CRANK PIN

13035-033

Unavailable

14

BRG,NEEDLE,KT202715EG

13034-1001

Unavailable

15

CRANKSHAFT,R.H.

13037-1084

Unavailable

16

ROLLER,4X10

610A0410

$3.29

17

KEY,WOODRUFF

92038-003

$3.89

18

COLLAR,R.H CRANKSHAFT

92027-220

$45.17

19

O RING,16MM

670B2016

$1.04

20

VALVE,ROTARY DISC

12001-025

Unavailable

21

GEAR,PRIMARY 22T

13097-1040

Unavailable

22

WASHER,CLAW,12.5X25X0.8

92024-003

Unavailable

23

NUT,12MM

92015-006

$4.92
