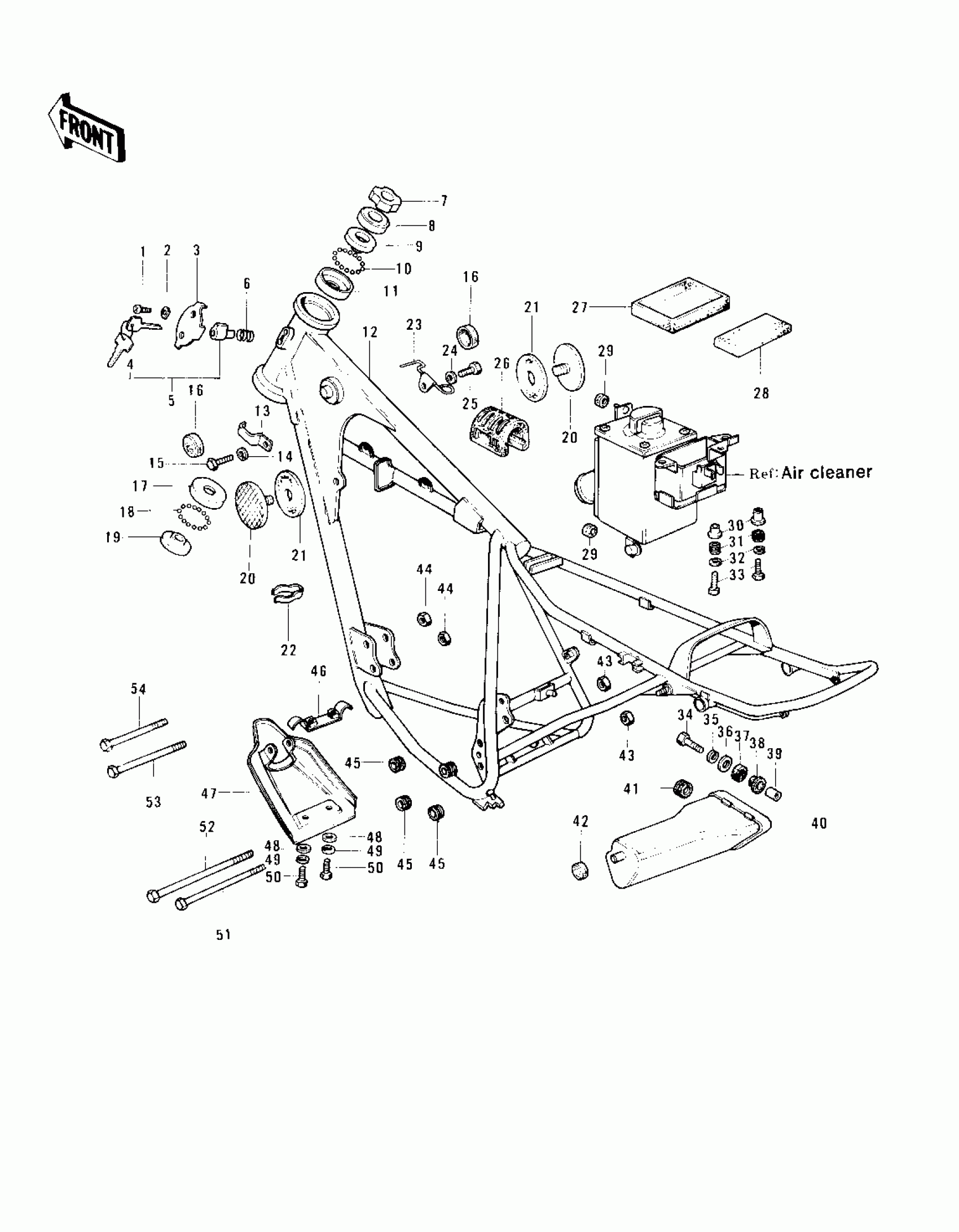

Kawasaki KS125-A FRAME/FRAME FITTINGS ('74-'75) Diagram

#

Description
Price

1

SCREW,3.51MM

92008-007

$3.14

2

WASHER,WAVE

92097-003

$3.43

3

CAP,STEERING LOCK

11012-1134

$5.95

4

KEY SET #431

27008-054-31

$19.97

4

KEY SET #432

27008-054-32

$14.51

4

KEY SET #433

27008-054-33

$14.32

4

KEY SET # 434

27008-054-34

Unavailable

4

KEY SET #435

27008-054-35

$19.93

4

KEY SET #436

27008-054-36

Unavailable

4

KEY SET #437

27008-054-37

Unavailable

4

KEY SET #438

27008-054-38

$19.97

4

KEY SET #439

27008-054-39

Unavailable

4

KEY SET #440

27008-054-40

$14.32

5

LOCK-ASSY,STEERING

27016-042

$46.56

6

SPRING,STEERING LOCK

27032-001

Unavailable

7

NUT,STEERING LOCK,25MM

92090-022

$20.25

8

CAP,STEERING STEM

46098-012

Unavailable

9

RACE,STEERING STEM BEARING

92047-014

$9.67

10

BALL-STEEL,3/16

600A0600

$1.02

11

RACE,STEERING STEM BEARING

92048-009

$10.71

12

FRAME

32002-074

$369.92

13

CLAMP-WIRE HARNESS

92037-086

$3.31

14

WASHER SPRING 6MM

461F0600

Unavailable

15

BOLT-UPSET 6X14

112B0614

Unavailable

16

DAMPER,FUEL TANK

92075-101

$4.67

17

RACE,STEERING STEM BEARING,LWR

92048-005

$11.83

18

BALL-STEEL,1/4

600A0800

$0.59

19

RACE,STEERING STEM BEARING

92047-010

$10.12

20

REFLECTOR,REFLEX,REAR

28012-009

$24.56

21

DAMPER,REFLECTOR

92094-011

$4.08

22

CLAMP

92037-093

$8.65

23

CLAMP,CABLE

92037-176

$5.73

24

WASHER PLAIN 6MM

411B0600

Unavailable

25

BOLT,6X10

112G0610

Unavailable

26

DAMPER RUBBER,FL TNK

92075-215

Unavailable

27

DAMPER,BATTERY BOTTOM

32103-023

Unavailable

28

DAMPER,BATTERY

32103-027

$11.41

29

DAMPER RUBBER,CLENER

92075-217

$3.92

30

COLLAR

92027-153

$4.67

31

DAMPER RUBBER

92075-051

$2.99

32

WASHER SPRING 6MM

461F0600

Unavailable

33

BOLT-UPSET,6X16

112G0616

Unavailable

34

BOLT-UPSET

112G0625

Unavailable

35

WASHER SPRING 6MM

461F0600

Unavailable

36

WASHER,7X24X1.6

92022-228

$2.99

37

DAMPER,FEMALE

92075-175

$3.35

38

RUBBER,FENDER COVER

92075-174

$3.65

39

COLLAR,6.8X10X12

92027-162

$4.93

40

CASE,TOOL

32098-022

Unavailable

41

DAMPER RUBBER-OIL TNK

92075-150

Unavailable

42

DAMPER RUBBER

92075-107

Unavailable

43

NUT,10MM

92015-1429

$5.15

44

NUT,LOCK,8MM

92015-1124

$4.10

45

GROMMET

92071-056

$3.25

46

BRACKET,ENGINE GUARD

55016-008

Unavailable

47

GUARD,ENGINE

55011-020

Unavailable

48

WASHER,6.5X20X1.6

92022-125

$1.08

49

WASHER SPRING 6MM

461F0600

Unavailable

50

BOLT-UPSET,6X16

112G0616

Unavailable

51

BOLT,HEX HEAD,10X117

92001-1246

$12.31

52

BOLT,HEX HEAD,10X130

92001-1249

$6.80

53

UNAVAILABLE IN PRICE BOOK

110B0871

Unavailable

54

BOLT,HEX HEAD,8X65

110B0865

Unavailable
