Description

Price

1

STEP-ASSY,FR,LH

34027-1114

$35.42

2

WASHER,25X36X2.3

92022-250

$5.00

3

PIN,8X31

92043-080

$5.52

4

BRACKET,FOTRST BAR,LH

34003-051

$52.16

5

PIN COTTER 2.5X16

550D2516

$2.79

6

WASHER SPRING 14MM

461F1400

Unavailable

7

NUT,14MM

314B1400

Unavailable

8

BRACKET,FOTRST BAR,RH

34003-052

$52.23

9

STEP-ASSY,FR,RH

34027-1115

$42.54

10

BOLT,HEX HEAD 10X35

92001-1252

Unavailable

11

SPRING-SIDE STAND

34025-004

$7.22

12

STAND-SIDE

34024-1043

$59.54

13

NUT-HEX-FINE,10MM

314B1000

$0.67

14

PEDAL,BRAKE

43001-058

Unavailable

15

DAMPER RUBBER,BK PDL

92075-220

Unavailable

16

CIRCLIP-TYPE-C,22MM

480J2200

$5.00

17

SCREW PAN HEAD 5X8

220B0508

$0.46

18

WASHER SPRING 5MM

461F0500

$0.69

19

PLATE

43081-002

Unavailable

20

SPRING BRAKE PEDAL

43005-032

Unavailable

21

COLLAR,BRAKE PEDAL

92027-210

$37.52

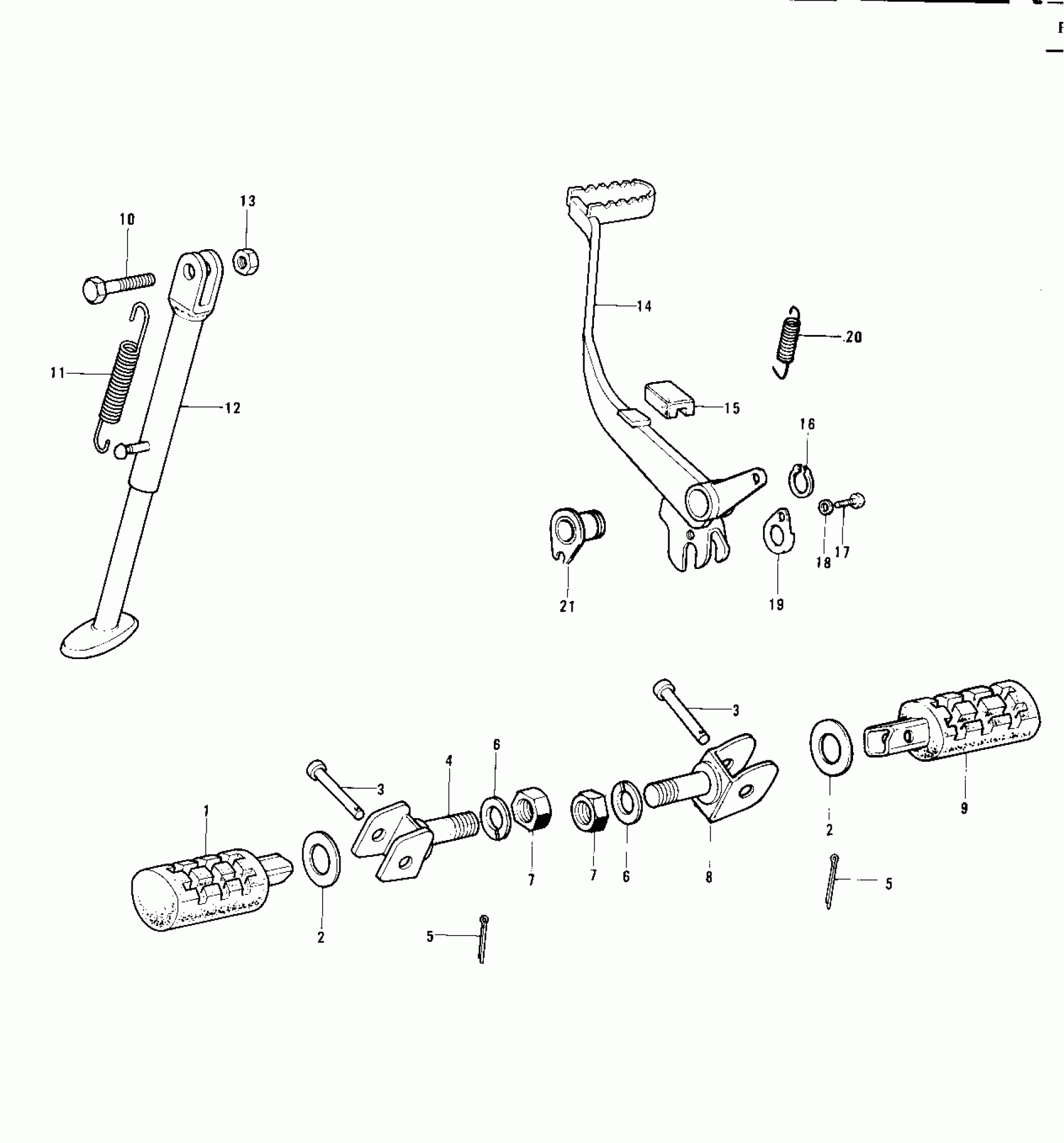

Kawasaki KS125-A FOOTRESTS/STAND/BRAKE PEDAL ('74-'75) Diagram

STEP-ASSY,FR,LH

WASHER,25X36X2.3

PIN,8X31

BRACKET,FOTRST BAR,LH

PIN COTTER 2.5X16

WASHER SPRING 14MM

NUT,14MM

BRACKET,FOTRST BAR,RH

STEP-ASSY,FR,RH

BOLT,HEX HEAD 10X35

SPRING-SIDE STAND

STAND-SIDE

NUT-HEX-FINE,10MM

PEDAL,BRAKE

DAMPER RUBBER,BK PDL

CIRCLIP-TYPE-C,22MM

SCREW PAN HEAD 5X8

WASHER SPRING 5MM

PLATE

SPRING BRAKE PEDAL

COLLAR,BRAKE PEDAL
