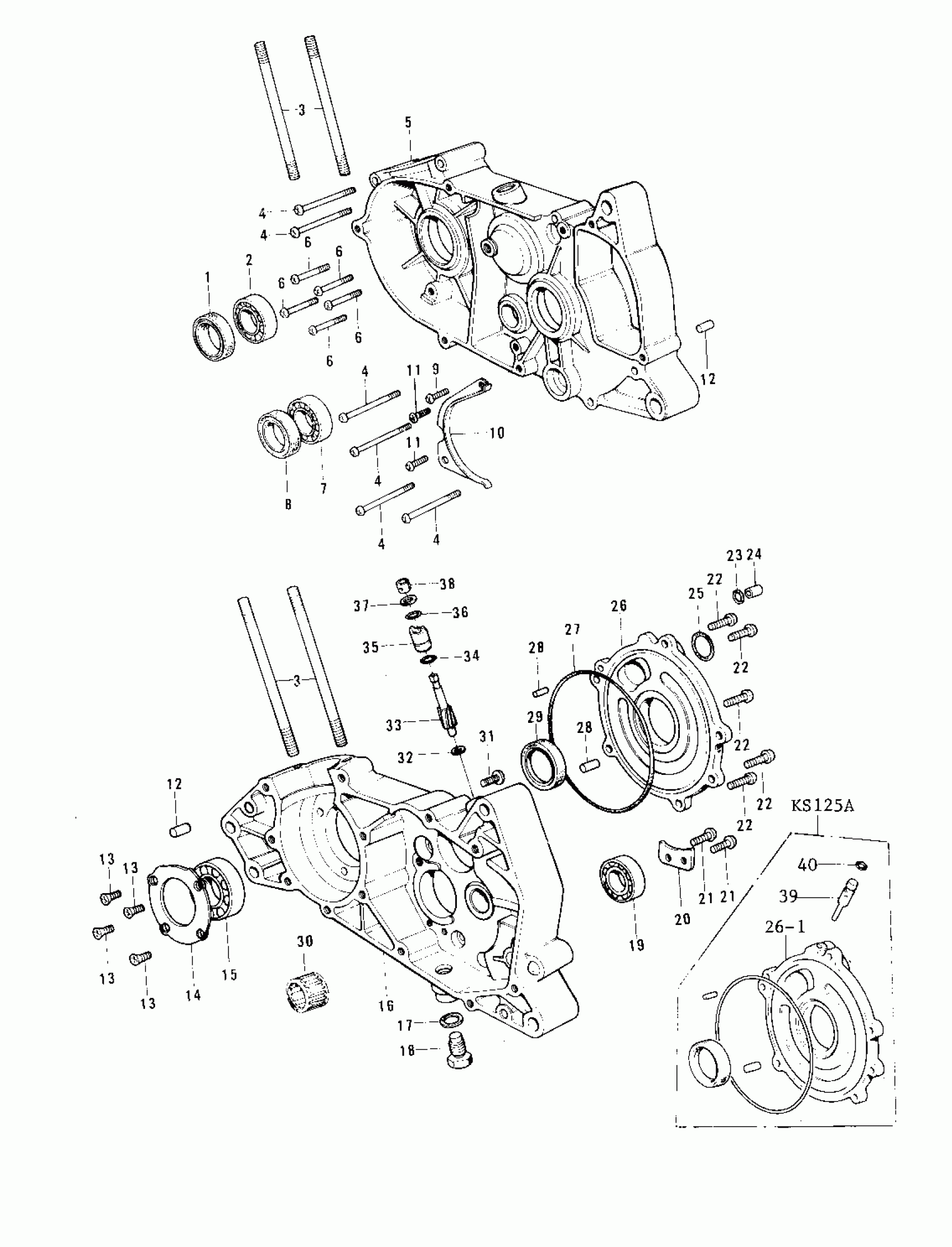

Kawasaki KS125-A CRANKCASE ('74-'75) Diagram

#

Description
Price

1

SEAL-OIL

92049-1240

$16.13

2

BEARING-BALL,#6204C3

601B6204

$13.65

3

STUD,8X70

172G0870

Unavailable

4

SCREW PAN HEAD 6X40

220B0640

Unavailable

5

SET-CRANKCASE,F.BLACK

14001-5149

Unavailable

6

SCREW PAN HEAD 6X40

220B0640

Unavailable

7

BEARING-BALL,#6004C3

601B6004

$12.47

8

SEAL-OIL,SC25376

92050-013

$14.23

9

SCREW-PAN-CROS,6X20,WHITE

220B0620

$5.82

10

GUIDE,CHAIN

14077-003

Unavailable

11

SCREW PAN HEAD 6X12

220B0612

Unavailable

12

PIN,DOWEL,10X14

92043-1037

$0.74

13

SCREW-CSK-CROS,6X16

221B0616

$0.59

14

PLATE,CRANK BEARING

14014-028

Unavailable

15

BEARING BALL #6304

601B6304

$36.85

16

CRANKCASE,R.H.,BLACK

14002-1040-21

Unavailable

17

GASKET,12.5X18X1,DRAIN PLUG

92065-073

$4.07

18

PLUG

92066-1240

Unavailable

19

BEARING-BALL,#6203C3

601B6203

$14.12

20

PLATE,MISSION BERNG

14014-029

Unavailable

21

SCREW PAN HEAD 6X12

220B0612

Unavailable

22

SCREW-PAN-CROS,6X20,WHITE

220B0620

$5.82

23

RING-O,7.8X3.5

92055-029

$4.39

24

PIN,DOWEL

92042-037

Unavailable

25

"O" RING,28MM

670B3028

$3.89

26

COVER ASY,ROTARY VLV

14019-054

Unavailable

26-1

COVER ASY,ROTARY VLV

14019-054

Unavailable

27

"O" RING,VALVE COVER

92055-057

Unavailable

28

ROLLER,5X12

610A0512

$4.78

29

SEAL-OIL

92049-1250

$18.74

30

BEARING,NEEDLE

92046-043

Unavailable

31

SCREW PAN HEAD 6X25

220B0625

$2.60

32

WASHER 22.1X30.7X2.0

92026-091

Unavailable

33

GEAR,TACHOMETER

13223-007

Unavailable

34

RING-O,10X1.5

92055-061

$4.78

35

BUSHING

92028-136

$13.74

36

"O" RING

92055-060

$4.42

37

WASHER,PLAIN

92022-275

$5.27

38

BUSHING,TACHOMETER

92028-140

$7.43

39

NOZZLE

92062-012

$13.75

40

"O" RING

92055-080

Unavailable
