1975 Kawasaki KS125-A Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1975 Kawasaki KS125-A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

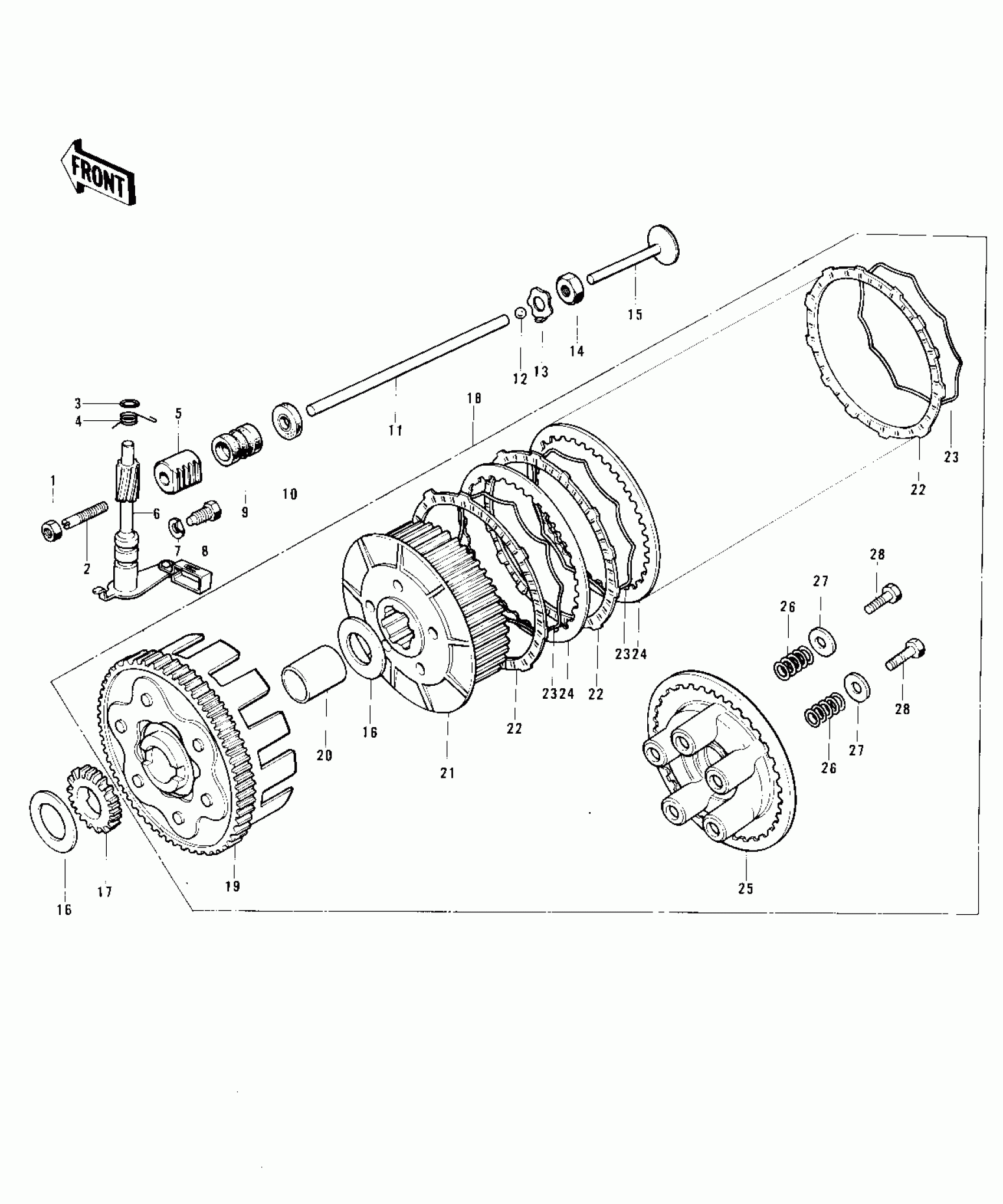

1975 Kawasaki KS125-A Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NUT 6MM

311B0600

1
Out of stock

1

NUT 6MM

311B0600

—
Out of stock

2

SCREW,SLOTTED,6X26

92014-015

1
Out of stock

3

O RING,10MM

670B2010

1

$1.31

In stock

4

SPRING,CLUTCH RELESE

92083-024

1
Out of stock

5

ROD,CLTCH RELESE PUSH

13116-026

1
Out of stock

6

SHAFT ASY,CLTCH RELES

13234-003

1
Out of stock

7

WASHER,LOCK

92031-009

1

$4.08

In stock

8

BOLT,CLUTCH RELEASE

92003-130

1
Out of stock

9

COLLAR

92027-207

1
Out of stock

10

OIL SEAL,PUSH ROD

92050-058

1
Out of stock

11

ROD,CLUTCH PUSH,LONG

13116-027

1
Out of stock

12

BALL-STEEL,7/32"

600A0700

1

$1.44

In stock

13

WASHER-LOCK,14MM

92024-046

1
Out of stock

14

NUT-HEX-FINE,14MM

315B1400

1
Out of stock

15

PUSHER-CLTCH SPRG PLT

13116-016

1
Out of stock

16

WASHER,17.3X30X1.4

92022-270

1
Out of stock

17

PINION,KICKSTARTER

13075-010

1
Out of stock

18

CLUTCH-ASSY

13081-1053

1
Out of stock

18

CLUTCH-ASSY

13081-1053

1
Out of stock

19

HOUSING CLUTCH

13095-1034

1
Out of stock

19

HOUSING CLUTCH

13095-1034

1
Out of stock

20

BUSHING,CLUTCH

92028-138

1

$28.77

In stock

21

HUB,CLUTCH

13087-038

1
Out of stock

22

PLATE-FRICTION

13088-1015

1

$19.58

In stock

23

RING-CLUTCH STEEL

13229-002

1
Out of stock

24

PLATE CLUTCH STEEL

13089-003

1

$11.25

In stock

25

PLATE-CLUTCH SPRING

13187-004

1
Out of stock

26

SPRING,CLUTCH

92081-123

1
Out of stock

27

WASHER-PLAIN,5MM

92022-167

1
Out of stock

28

BOLT,5X18

92003-078

1
Out of stock
