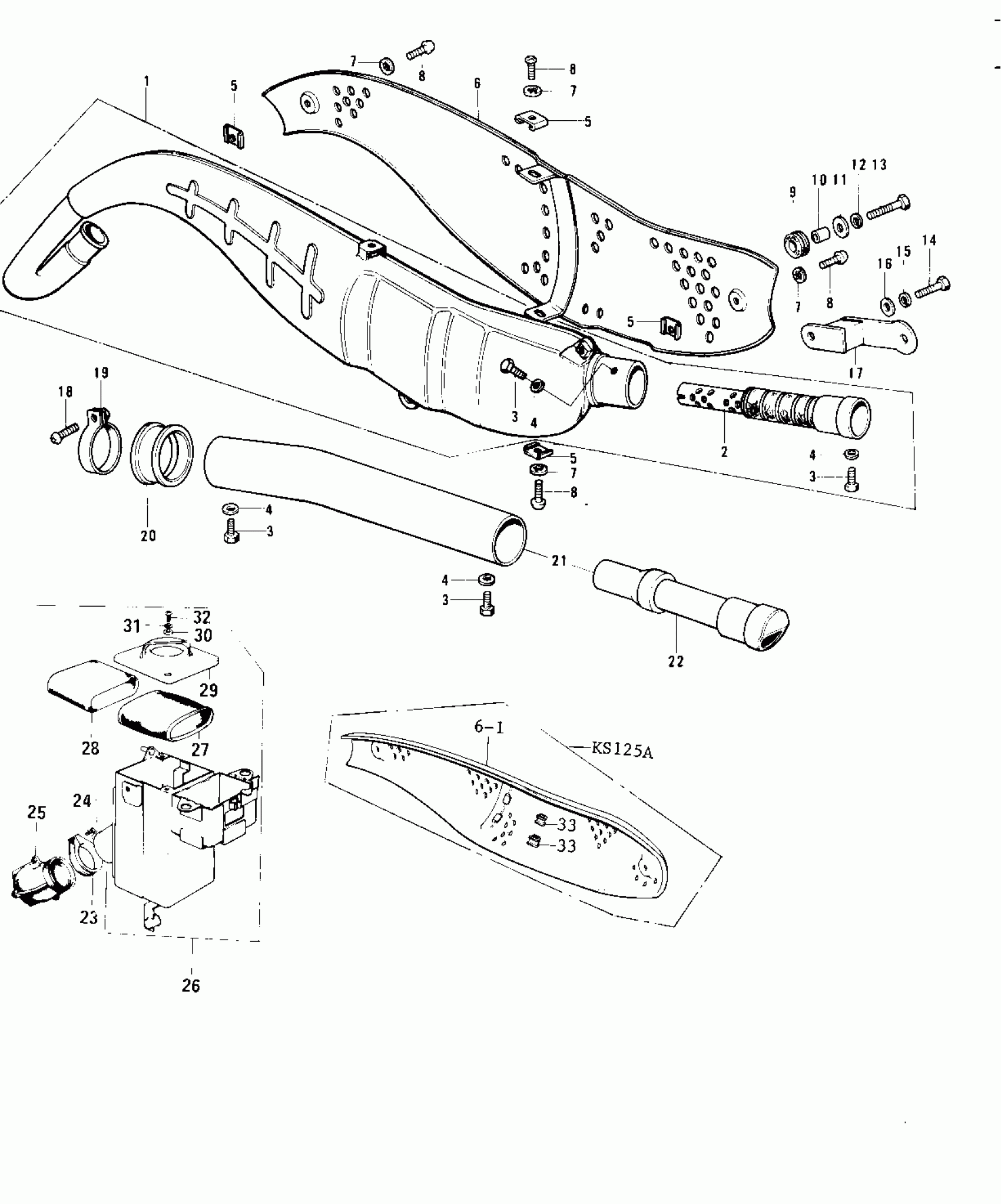

Kawasaki KS125-A AIR CLEANER/MUFFLER ('74-'75) Diagram
#
Description
Price
1
MUFFLER ASSY
18001-154
Unavailable
1
MUFFLER ASSY
18001-154
Unavailable
2
BAFFLE TUBE
18033-077
Unavailable
3
BOLT-UPSET,6X12
112G0612
$1.45
4
WASHER-PLAIN
92022-183
$3.92
5
INSULATOR,HEAT
18065-010
$5.03
5
INSULATOR,HEAT
18065-010
$5.03
6
COVER,MUFFLER
18064-011
Unavailable
6-1
COVER,MUFFLER
18064-016
Unavailable
7
WASHER LOCK 6MM
463H0600
Unavailable
8
SCREW PAN HEAD 6X12
220B0612
Unavailable
9
DAMPER RUBBER-MUFFLER
18063-005
$5.21
10
COLLAR
92027-102
$1.08
11
WASHER,8X26X2.3
92022-1564
$4.31
12
WASHER SPRING 8MM
461F0800
$0.40
13
BOLT-SMALL-UPSET,8X30
115G0830
$6.34
14
BOLT-UPSET,6X16
112G0616
$1.10
15
WASHER SPRING 6MM
461F0600
$0.69
16
WASHER PLAIN 6MM
411B0600
$2.84
17
BRACKET,MUFFLER
18061-046
$22.94
18
SCREW,PAN HEAD,5X30
92011-032
Unavailable
19
CLAMP,SPARK ARRESTOR
92037-122
Unavailable
20
CONNECTOR,BAFFLETUBE
92093-1042
Unavailable
21
ARRESTER,SPARK
18077-001
Unavailable
22
BAFFLE TUBE,ARESTOR
18033-086
$72.07
23
CLAMP,AIR CLEANER
92037-129
$16.69
24
SCREW-PAN-CROS,6X35,B
220C0635
$5.38
25
CONNECTOR,AIR CLEANER
14073-1004
Unavailable
26
AIR CLEANER ASY,BLACK
11010-071-21
Unavailable
27
HOLDER,CLENER ELEMENT
11014-011
Unavailable
28
ELEMENT,AIR CLNR
11013-1033
Unavailable
29
CAP,AIR CLEANER,BLACK
11012-039-21
Unavailable
30
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
31
WASHER SPRING 6MM
461F0600
$0.69
32
SCREW PAN HEAD 6X12
220B0612
Unavailable
33
INSULATOR
18065-007
$5.59
