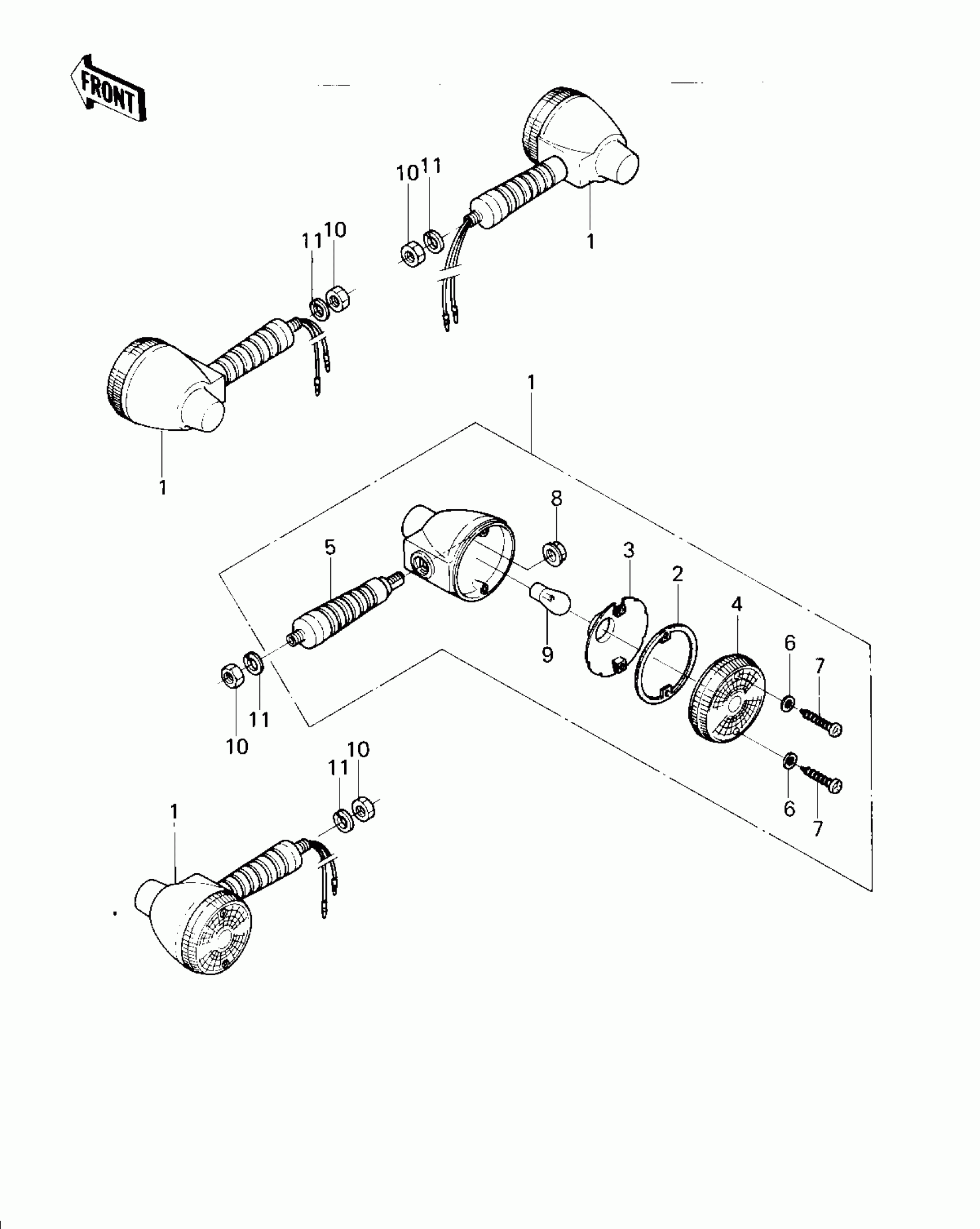

Kawasaki KM100 TURN SIGNALS (KM100-A6/A7) Diagram

#

Description

Price

1

LAMP-ASSY-SIGNAL,RR

23037-1087

$69.77

2

GASKET,TURN SIGNAL LAMP LENS

11009-1128

$5.54

3

REFLECTOR,SIGNAL LAMP

23035-1003

$14.34

4

LENS-SIGNAL LAMP

23048-1076

$9.75

5

BRACKET,SIGNAL LAMP

23051-1033

Unavailable

6

WASHER,PLAIN,4MM

23058-002

$2.49

7

SCREW,TAPPING,4X30

92009-1056

$4.38

8

NUT,SIGNAL LAMP

92015-1072

$3.51

9

BULB,6V 21CP

92069-056

Unavailable

10

NUT-HEX-FINE,10MM

315B1000

$0.58

11

WASHER SPRING 10MM

461F1000

$0.67
