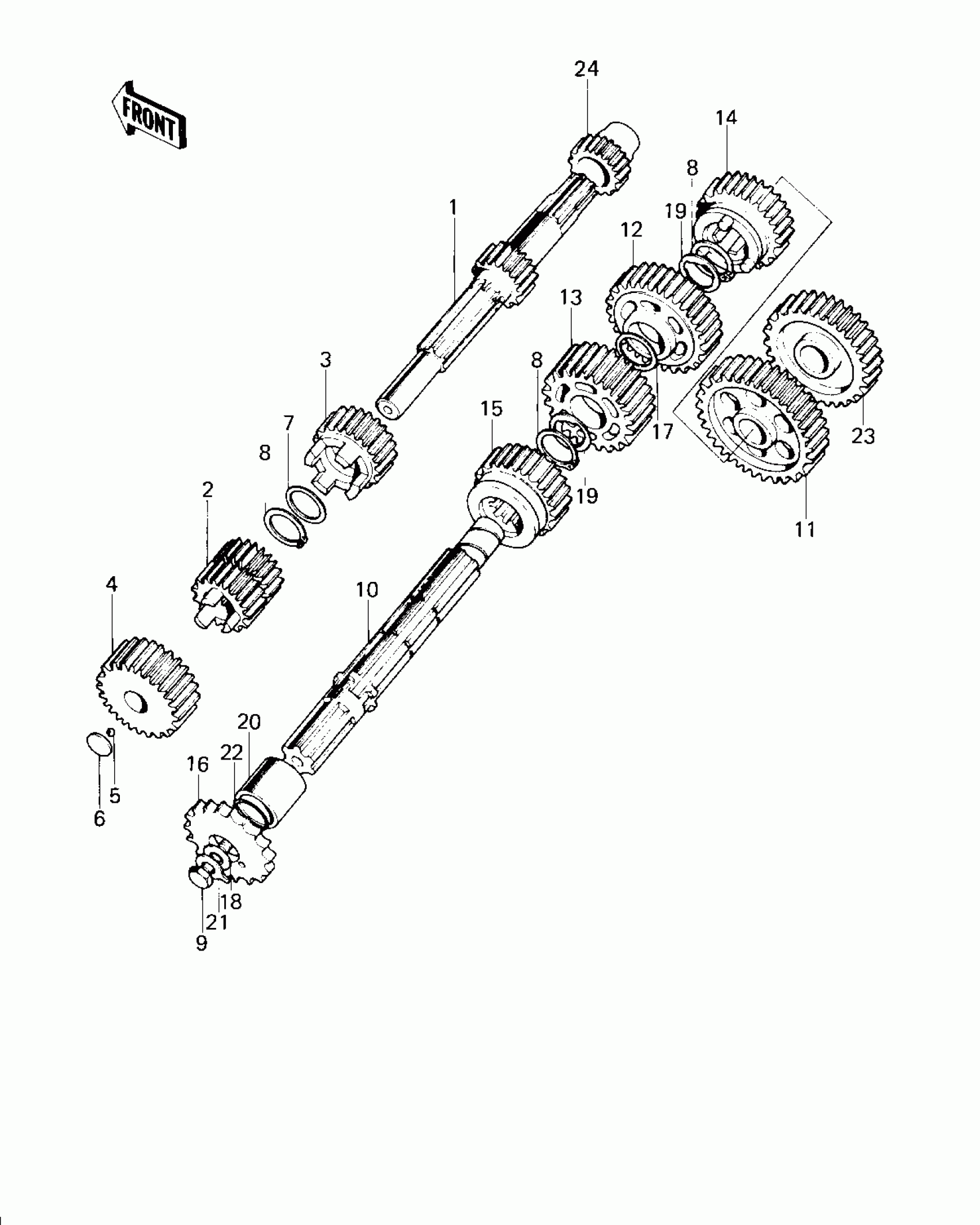

Kawasaki KM100 TRANSMISSION (KM100-A6/A7) Diagram
#
Description
Price
1
SHAFT-TRANSMISSION INPUT
13127-1017
Unavailable
2
2ND&3RD GEAR,DRIVE
13129-1052
Unavailable
3
4TH GEAR,DRIVE
13129-1053
Unavailable
4
GEAR,INPUT TOP,24T
13129-1927
Unavailable
5
BALL-STEEL,7/32"
600A0700
$1.64
6
WASHER,THRUST
92022-115
$4.39
7
WASHER,18.5X23X1.2
92022-118
$4.69
8
RING-SNAP,16MM
92033-014
$5.17
9
BOLT-SMALL-UPSET,8X16
115G0816
$0.68
9
BOLT,8X16
92001-1368
$4.76
10
SHAFT-TRANSMISSION OUTPUT
13128-021
Unavailable
11
GEAR,OUTPUT LOW,35T
13129-010
$87.77
12
2ND GEAR OUTPUT SHAFT
13131-008
Unavailable
13
3RD GEAR OUTPUT SHAFT
13133-005
Unavailable
14
GEAR,OUTPUT 4TH,24T
13129-1708
$92.35
15
TOP GEAR OUTPUT SHAFT
13137-012
Unavailable
16
SPROCKET-OUTPUT,14T
13144-1058
Unavailable
16
ENGINE SPROCKET,13T
13144-053
Unavailable
16
SPROCKET-OUTPUT,15T
13144-054
Unavailable
17
WASHER,THRUST,18.5X23X1.6
92022-146
$8.21
18
WASHER,T=2.3
92022-266
$5.23
19
WASHER,TOOTHED,18.5X23X1.2
92024-030
$6.15
20
COLLAR,ENGINE SPROCKET,L=13.7
92027-1595
$18.83
21
WASHER,CLAW,8X22X1.2
92030-012
$5.23
22
RING-O,17.5X1.5
92055-022
$6.22
23
GEAR-SPUR,KICKSTARTER.IDLE,30T
13073-004
$74.27
24
GEAR-SPUR,KICKSTARTER PINION
13075-004
$52.38
