Description

Price

1

CAP,OIL TANK

52003-024

$14.38

2

TANK,OIL

52001-1005

Unavailable

3

CLAMP,TUBE

92037-010

$3.92

4

TUBE-VINYL,5X400

700Q05400

Unavailable

5

WASHER,6.5X20X1.6

92022-125

$1.40

6

SCREW-PAN-CROS,6X16

220B0616

$2.84

7

WASHER SPRING 6MM

461F0600

$0.69

8

TUBE,4.5X9X380

92059-1691

Unavailable

9

BRACKET,L.H.SIDE COVR

11034-1620

Unavailable

10

COVER,L.H.SIDE,YELLOW

36001-1083-6R

Unavailable

10

COVER,L.H.SIDE,F.RED

36001-1083-6L

Unavailable

10

COVER,L.H.SIDE,F.RED

36001-1083-6L

Unavailable

10

COVER-SIDE,LH,S.B.YLW

36001-1083-6G

Unavailable

11

SCREW,6X14,WHITE

92009-1287

$2.55

12

BRACKET,R.H.SIDE COVR

11034-1621

Unavailable

13

COVER,R.H.SIDE,YELLOW

36001-1084-6R

Unavailable

13

COVER,R.H.SIDE,F.RED

36001-1084-6L

Unavailable

13

COVER,R.H.SIDE,F.RED

36001-1084-6L

Unavailable

13

COVER-SIDE,RH,S.B.YLW

36001-1084-6G

Unavailable

14

EMBLEM,SIDE COVER

56018-1141

Unavailable

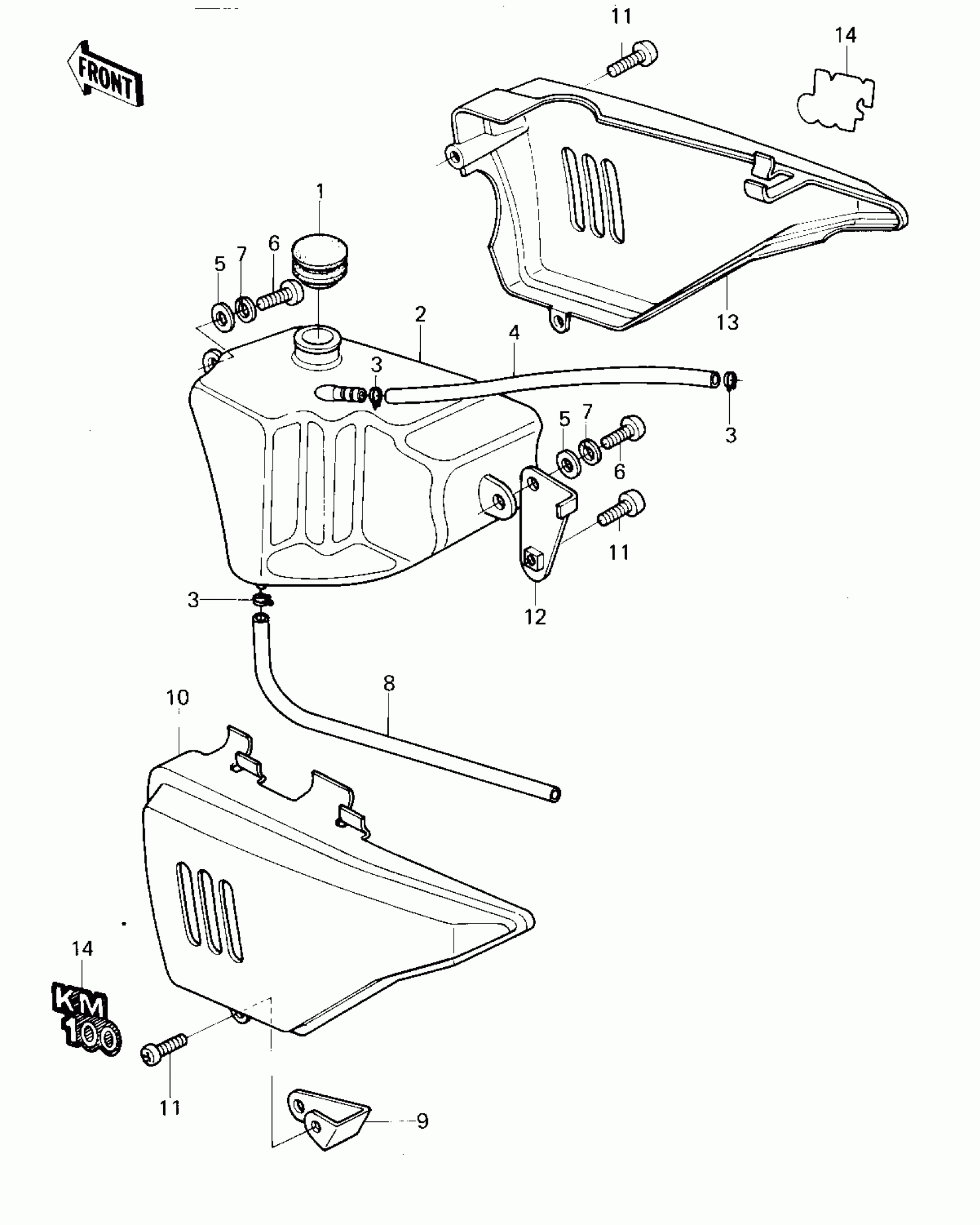

Kawasaki KM100 SIDE COVERS/OIL TANK (KM100-A6/A7) Diagram

CAP,OIL TANK

TANK,OIL

CLAMP,TUBE

TUBE-VINYL,5X400

WASHER,6.5X20X1.6

SCREW-PAN-CROS,6X16

WASHER SPRING 6MM

TUBE,4.5X9X380

BRACKET,L.H.SIDE COVR

COVER,L.H.SIDE,YELLOW

COVER,L.H.SIDE,F.RED

COVER,L.H.SIDE,F.RED

COVER-SIDE,LH,S.B.YLW

SCREW,6X14,WHITE

BRACKET,R.H.SIDE COVR

COVER,R.H.SIDE,YELLOW

COVER,R.H.SIDE,F.RED

COVER,R.H.SIDE,F.RED

COVER-SIDE,RH,S.B.YLW

EMBLEM,SIDE COVER
