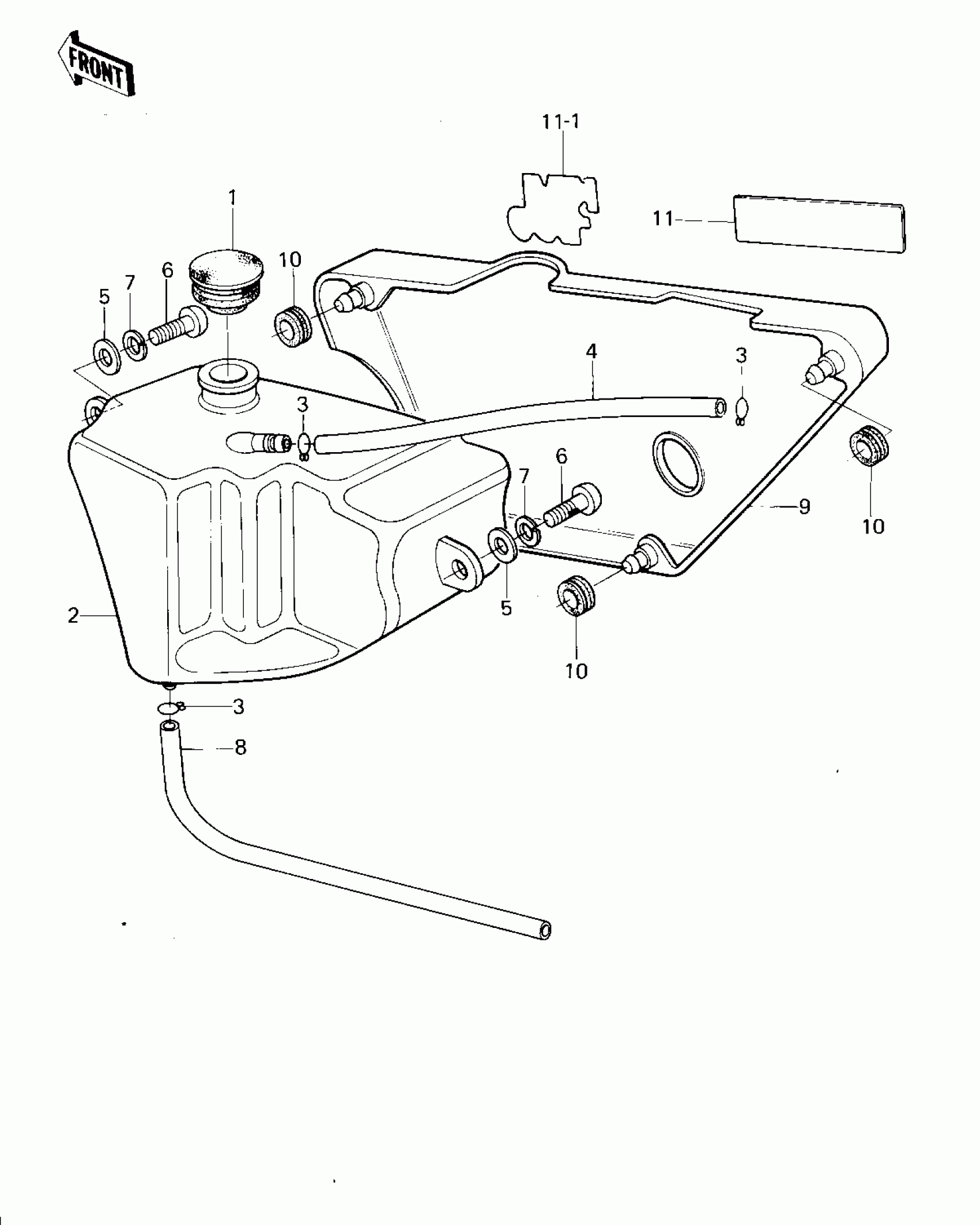

Kawasaki KM100 SIDE COVER/OIL TANK (KM100-A1~A4) Diagram

#

Description
Price

1

CAP,OIL TANK

52003-024

$14.38

2

TANK,OIL

52001-1005

Unavailable

2

TANK,OIL

52001-1005

Unavailable

3

CLAMP,TUBE

92037-010

$3.92

4

TUBE VINYL 5X470, ACTUAL L=400MM

700Q05470

Unavailable

4

TUBE-VINYL,5X400

700Q05400

Unavailable

5

WASHER,6.5X20X1.6

92022-125

$1.40

6

SCREW-PAN-CROS,6X16

220B0616

$2.84

7

WASHER SPRING 6MM

461F0600

$0.69

8

TUBE,4.5X9X380

92059-1691

Unavailable

9

COVER, SIDE,BLACK

36001-1042-6Z

$14.14

9

COVER, SIDE,BLACK

36001-1042-6Z

$14.14

10

GROMMET

92071-056

$4.26

11

EMBLEM,SIDE COVER

56018-241

$9.98

11-1

EMBLEM,SIDE COVER

56018-1042

$20.16
