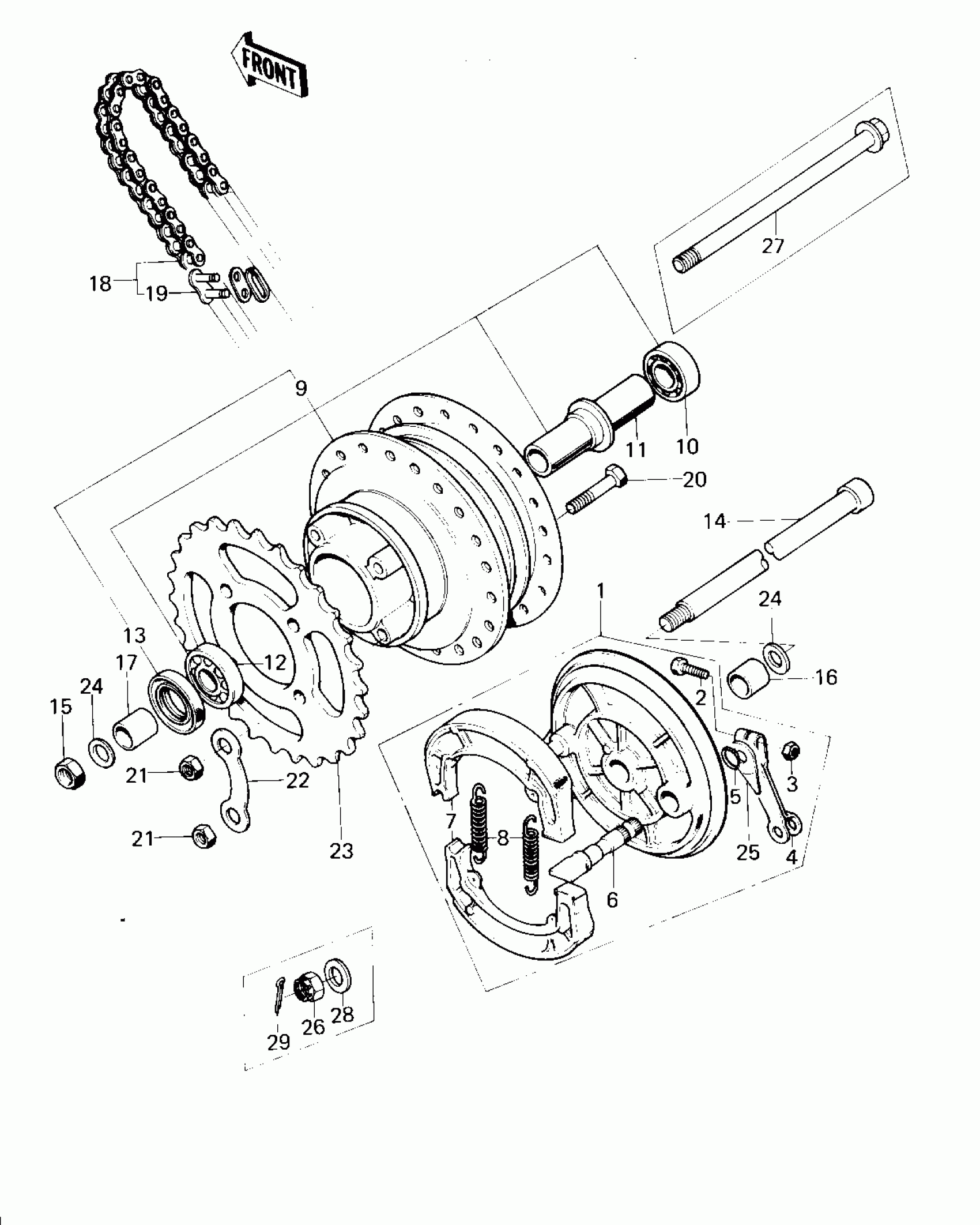

Kawasaki KM100 REAR HUB/BRAKE/CHAIN Diagram
#
Description
Price
1
PANEL-ASY,RR BRK,BUFF
42006-063-80
Unavailable
2
BOLT-UPSET
112G0630
$1.36
3
NUT,6MM
41072-007
$3.92
4
LEVER,REAR BRAKE PANL
42029-027
Unavailable
5
RING-O,BRAKE CAM
92055-004
$4.80
6
CAM-BRAKE
42026-018
$33.87
7
SHOE-BRAKE
41048-1085
$22.53
8
SPRING,BRAKE SHOE
92081-1766
$8.03
9
DRUM-ASSY,RR BRK,BUFF
41034-1002-80
$290.44
9
DRUM-ASSY,RR BRK,BUFF
41034-1002-80
$290.44
10
BEARING BALL #6301Z
601B6301Z
$14.46
11
SPACER RR HUB BEARING
42010-003
Unavailable
12
BEARING BALL #6301
601B6301
$12.36
13
OIL SEAL RR BRK DRUM
92052-001
Unavailable
14
AXLE,12X206
41068-1091
Unavailable
15
NUT-HEX-FINE
314B1200
$2.87
16
COLLAR-REAR HUB R.H
42032-002
Unavailable
17
COLLAR,REAR AXLE
42032-044
Unavailable
18
CHAIN,DRIVE,EK428 96L
92057-1089
$46.14
19
JOINT-CHAIN,EK428-G
92058-1014
$6.60
20
BOLT REAR SPROCKET
92001-021
$5.59
21
NUT,8MM
311B0800
$0.67
22
WASHER RR SPRCKT LOCK
92088-003
Unavailable
23
REAR SPROCKET 36T
42041-022
$90.37
23
REAR SPROCKET 34T
42041-019
Unavailable
24
WASHER PLAIN 12MM
411B1200
$0.93
25
INDICATOR,BRAKE SHOE
41085-003
$14.51
26
NUT CASTLE 12MM
321B1200
$3.86
27
AXLE,12X206
41068-1091
Unavailable
28
WASHER PLAIN 12MM
411B1200
$0.93
29
PIN-COTTER,3.0X25
550D3025
$0.58
