Description

Price

1

BOLT,NEUTRAL POSITION

92001-182

$18.66

2

WASHER,16.5X23X2

92022-324

$5.23

3

PIN,NEUTRAL POSITIONG

92043-131

Unavailable

3-1

BALL-STEEL,13/32"

600A1300

$0.94

4

SPRING

92081-112

$6.16

5

BOLT-UPSET,6X20

112G0620

$2.12

6

LEVER-ASSY-CHANGE

13242-004

$40.04

7

DAMPER,CHANGE PEDAL

13157-004

Unavailable

8

LEVER-COMP CHANGE

13161-5001

Unavailable

8

LEVER-COMP CHANGE

13161-5001

Unavailable

9

SPRING,CHANGE LEVER

92144-1720

$4.74

10

BOLT,RETURN SPRING

92001-1401

$4.69

10

BOLT,RETURN SPRING

92001-1401

$4.69

11

COLLAR,12X18X11.5

92027-121

$9.23

12

SPRING,TENSION

92081-1129

$9.43

13

LEVER,GEAR CHANGE DRUM

13168-1046

$5.71

14

BOLT,CHANGE DRUM LEVER

92150-1450

$5.35

15

SPRING,CHANGE DRUM LEVER

92083-012

$4.65

16

PLATE,GEAR CHANGE DRM

13169-1201

Unavailable

16

PLATE,GEAR CHANGE

13169-1253

Unavailable

17

SCREW PAN HEAD 6X12

220B0612

Unavailable

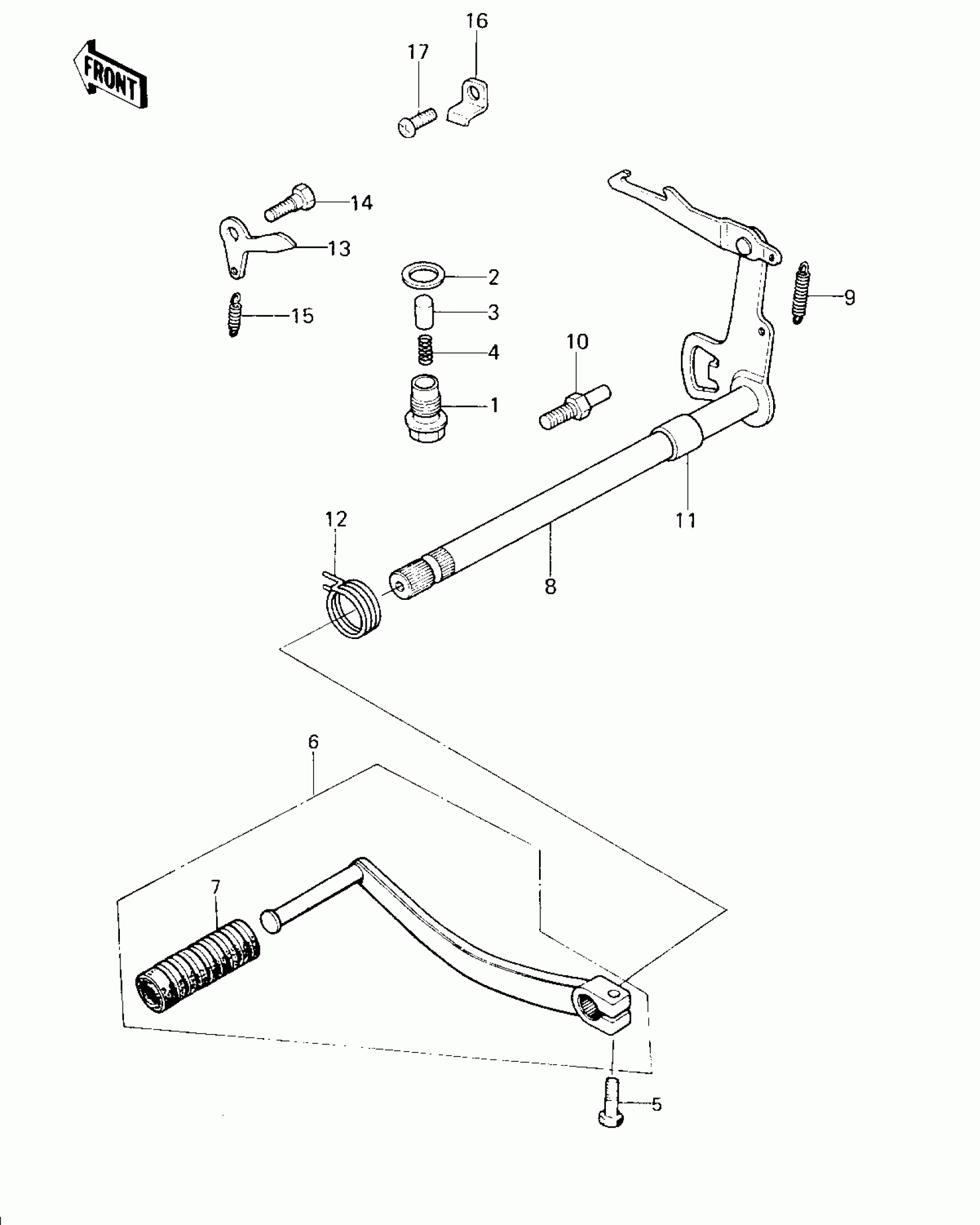

Kawasaki KM100 GEAR CHANGE MECHANISM (KM100-A6/A7) Diagram

BOLT,NEUTRAL POSITION

WASHER,16.5X23X2

PIN,NEUTRAL POSITIONG

BALL-STEEL,13/32"

SPRING

BOLT-UPSET,6X20

LEVER-ASSY-CHANGE

DAMPER,CHANGE PEDAL

LEVER-COMP CHANGE

LEVER-COMP CHANGE

SPRING,CHANGE LEVER

BOLT,RETURN SPRING

BOLT,RETURN SPRING

COLLAR,12X18X11.5

SPRING,TENSION

LEVER,GEAR CHANGE DRUM

BOLT,CHANGE DRUM LEVER

SPRING,CHANGE DRUM LEVER

PLATE,GEAR CHANGE DRM

PLATE,GEAR CHANGE

SCREW PAN HEAD 6X12
