Description

Price

1

PISTON 0.020' O.S

13029-014

Unavailable

2

DRUM-ASSY-CHANGE

13239-5001

Unavailable

2

DRUM-ASSY-CHANGE

13239-1034

$134.32

3

HOLDER,GEAR CHANG DRM

13091-1059

Unavailable

3

HOLDER,CHANGE DRUM

13091-1077

$35.90

4

PLATE CHANGE DRUM PIN

13142-008

Unavailable

4

HOLDER,CHANGE DRUM PIN

13142-014

$20.79

5

SCREW PAN HEAD 6X30

220B0630

$3.41

5

BOLT-SOCKET,6X30

120P0630

$5.59

6

PIN,DOWEL,4X14.8

92042-042

$4.39

7

BEARING-BALL,#6905

92045-036

$27.88

7

BEARING-BALL,#6004C3

601B6004

$12.47

8

ROLLER,4X6

610A0406

$4.31

9

ROTOR,TOP & NEUTRAL

21007-1003

$7.62

10

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

11

SCREW-PAN-CROS,6X16

220B0616

$2.84

12

FORK-SHIFT,LOW&2ND

13140-1026

$82.35

13

FORK-SHIFT,3RD

13140-1027

$94.69

14

FORK-SHIFT,4TH&TOP

13140-1028

Unavailable

15

GASKET,NEUTRAL SWITCH

13146-002

$4.35

16

SWITCH-COMP,NEUTRAL

13151-1002

$16.92

17

SCREW-PAN-CROS,6X16

220B0616

$2.84

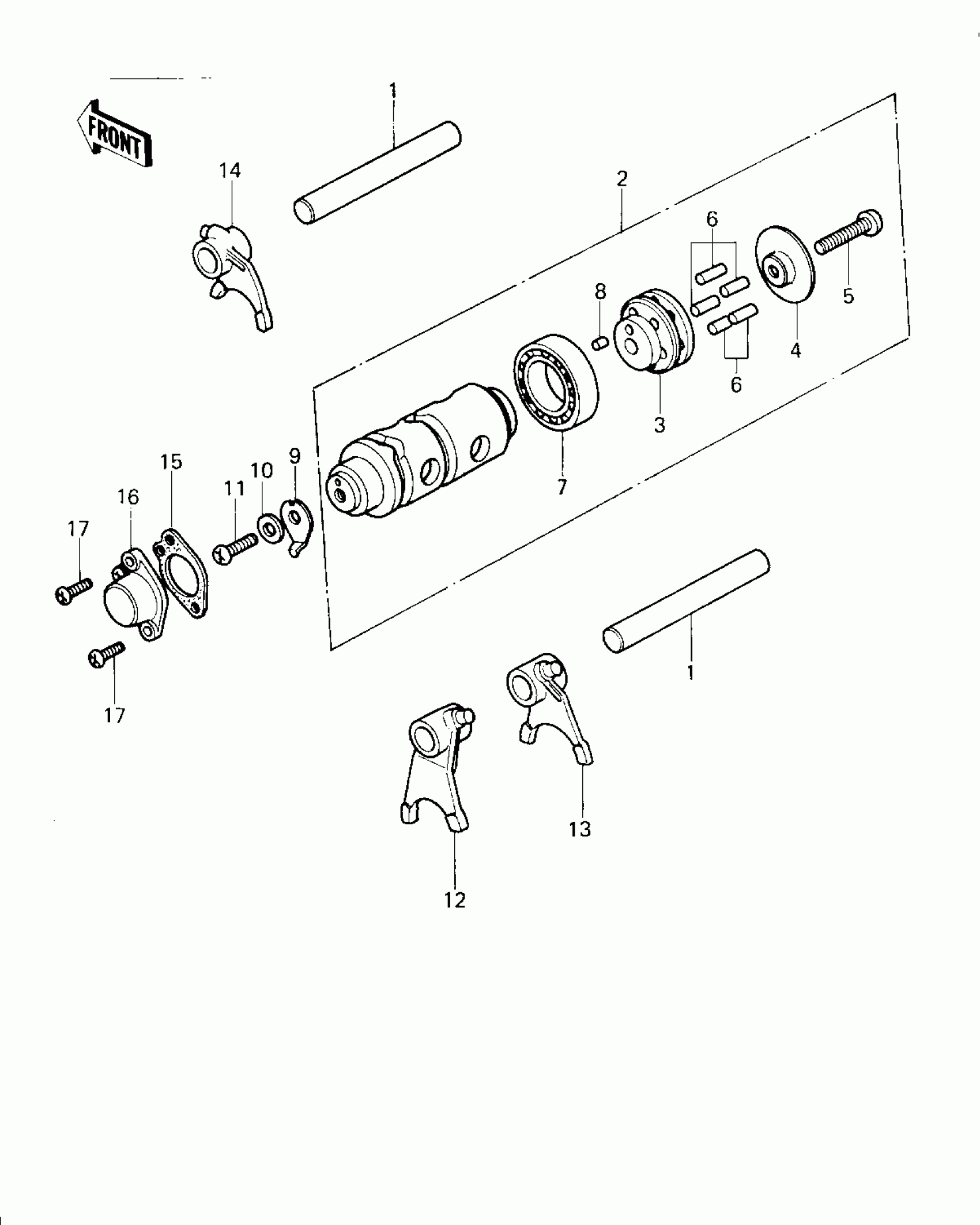

Kawasaki KM100 GEAR CHANGE DRUM & FORKS (KM100-A6/A7) Diagram

PISTON 0.020' O.S

DRUM-ASSY-CHANGE

DRUM-ASSY-CHANGE

HOLDER,GEAR CHANG DRM

HOLDER,CHANGE DRUM

PLATE CHANGE DRUM PIN

HOLDER,CHANGE DRUM PIN

SCREW PAN HEAD 6X30

BOLT-SOCKET,6X30

PIN,DOWEL,4X14.8

BEARING-BALL,#6905

BEARING-BALL,#6004C3

ROLLER,4X6

ROTOR,TOP & NEUTRAL

WASHER-PLAIN-SMALL,6MM

SCREW-PAN-CROS,6X16

FORK-SHIFT,LOW&2ND

FORK-SHIFT,3RD

FORK-SHIFT,4TH&TOP

GASKET,NEUTRAL SWITCH

SWITCH-COMP,NEUTRAL

SCREW-PAN-CROS,6X16
