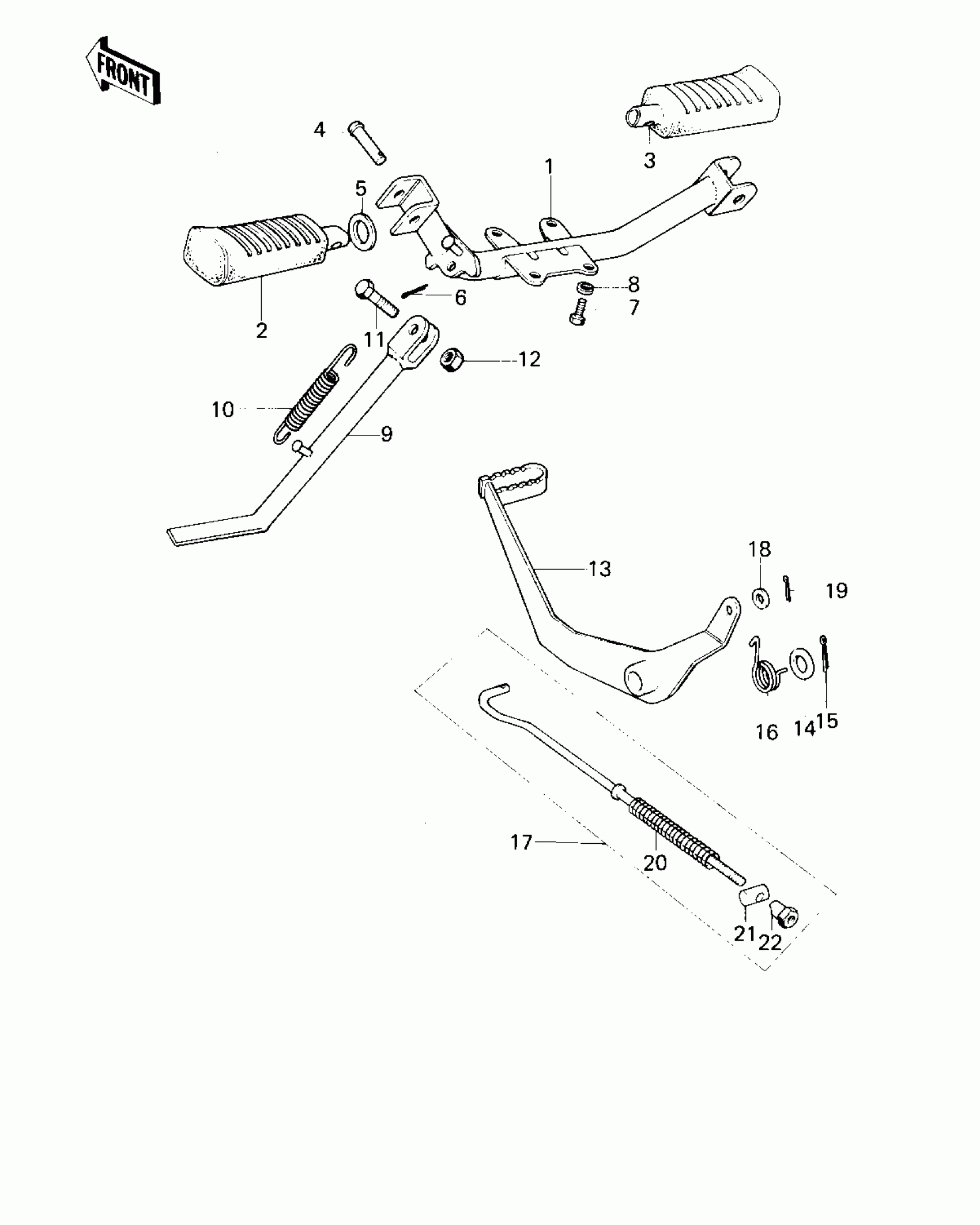

Kawasaki KM100 FOOTRESTS/STAND/BRAKE PEDAL Diagram
#
Description
Price
1
BAR,FOOTREST
34002-047
$124.45
2
STEP-ASSY,FR,LH
34027-1114
$35.42
3
STEP-ASSY,FR,RH
34027-1115
$42.54
4
PIN,8X31
92043-080
$5.52
5
WASHER PL 22.5X36X2.3
92022-204
Unavailable
5
WASHER,25X36X2.3
92022-250
$5.00
6
PIN COTTER 2.0X15
550D2015
$1.04
7
BOLT-SMALL-UPSET,8X18
115G0818
$5.23
8
WASHER SPRING 8MM
461F0800
$0.40
9
STAND-SIDE
34024-1013
Unavailable
9
STAND-SIDE
34024-1013
Unavailable
10
SPRING MAIN STAND
34023-005
$10.92
11
BOLT,HEX HEAD,10X25
113G1025
Unavailable
11
BOLT,10X28
113G1028
$5.98
12
NUT-HEX-FINE,10MM
314B1000
$0.67
13
PEDAL,BRAKE
43001-062
Unavailable
14
WASHER BRAKE PEDAL
92022-085
$3.92
15
PIN-COTTER,3.0X30
550D3030
$2.51
16
SPRING-BRAKE PEDAL
43005-020
Unavailable
17
ROD ASSY,REAR BRAKE
43010-5004
Unavailable
17
ROD ASSY,REAR BRAKE
43010-5004
Unavailable
18
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
19
PIN COTTER 2.0X15
550D2015
$1.04
20
SPRING,BRAKE ROD
43012-001
$4.65
21
PIN,BRAKE ROD
92043-039
$6.38
22
NUT,BRAKE ROD
92015-042
$6.22
22
NUT,BRAKE ROD
92015-042
$6.22
