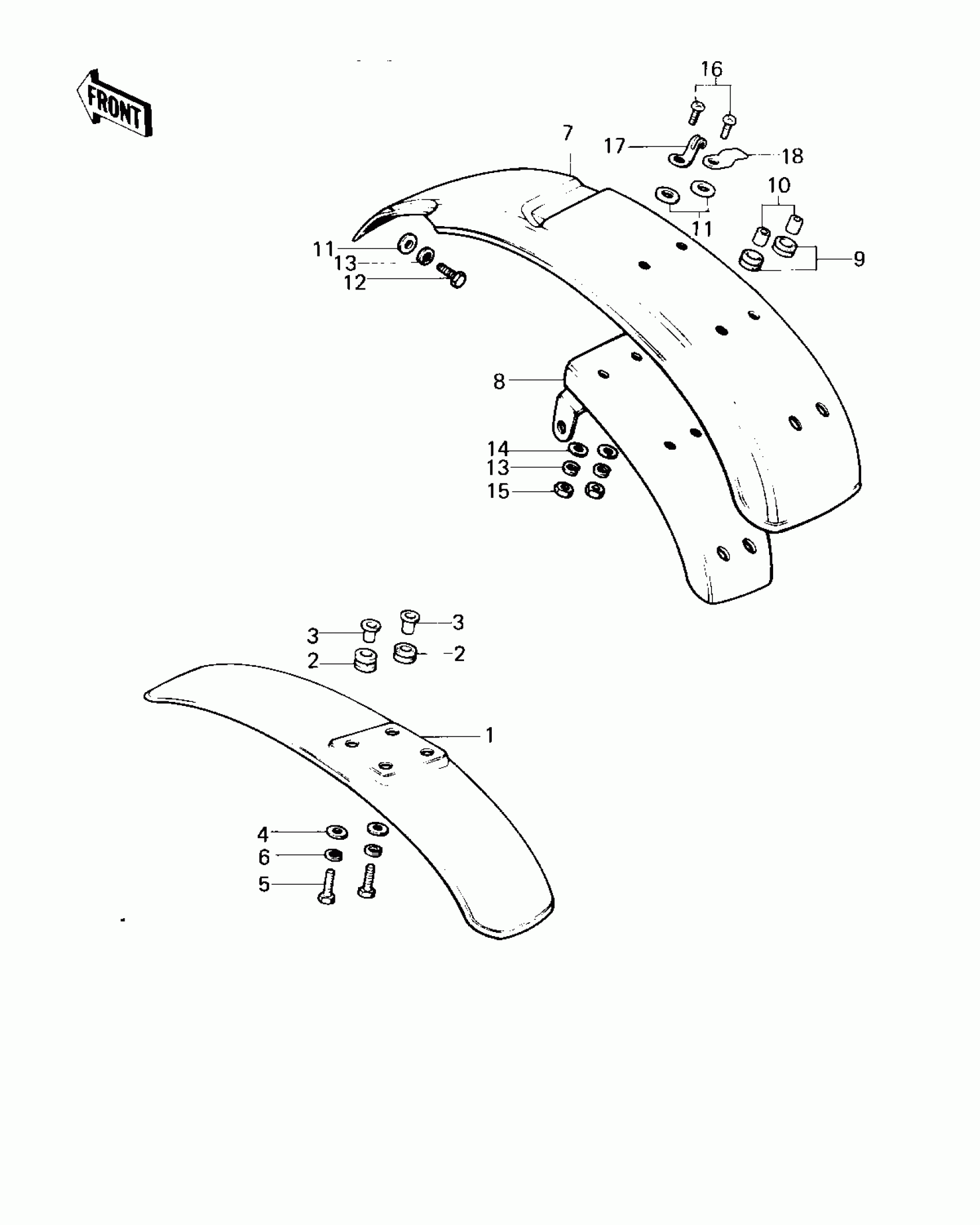

Kawasaki KM100 FENDERS (KM100-A1~A4) Diagram

#

Description
Price

1

FENDER-FR,BLACK

35004-080-10

Unavailable

1

FENDER-FR,GRAY

35004-109-6Y

Unavailable

1

FENDER-FR,WHITE

35004-109-6V

Unavailable

1

FENDER-FR,S.YELLOW

35004-109-6R

Unavailable

2

DAMPER RUBBER

92075-103

$3.35

3

COLLAR

92027-153

$4.67

4

WASHER,6.5X20X1.6

92022-125

$1.08

5

BOLT-UPSET

112G0618

Unavailable

6

WASHER SPRING 6MM

461F0600

Unavailable

7

FENDER,REAR,BLACK

35022-094-10

Unavailable

7

FENDER-RR,BLACK

35022-162-6Z

$27.51

7

FENDER-RR,GRAY

35022-162-6Y

$36.61

7

FENDER-RR,WHITE

35022-162-6V

Unavailable

7

FENDER-RR,S.YELLOW

35022-162-6R

Unavailable

8

GUSSET,REAR FENDER

35034-019

$39.90

9

DAMPER RUBBER,RR FENR

92075-209

$3.57

10

COLLAR

92027-169

$4.64

11

WASHER,6.5X20X1.6

92022-125

$1.08

12

BOLT-UPSET 6X14

112B0614

Unavailable

13

WASHER SPRING 6MM

461F0600

Unavailable

14

WASHER PLAIN 6MM

411B0600

Unavailable

15

NUT 6MM

311B0600

Unavailable

16

SCREW-PAN-CROS,6X16

220B0616

Unavailable

17

CLIP WIRING HARNESS

35024-002

Unavailable

18

CLAMP CABLE

92037-020

Unavailable
