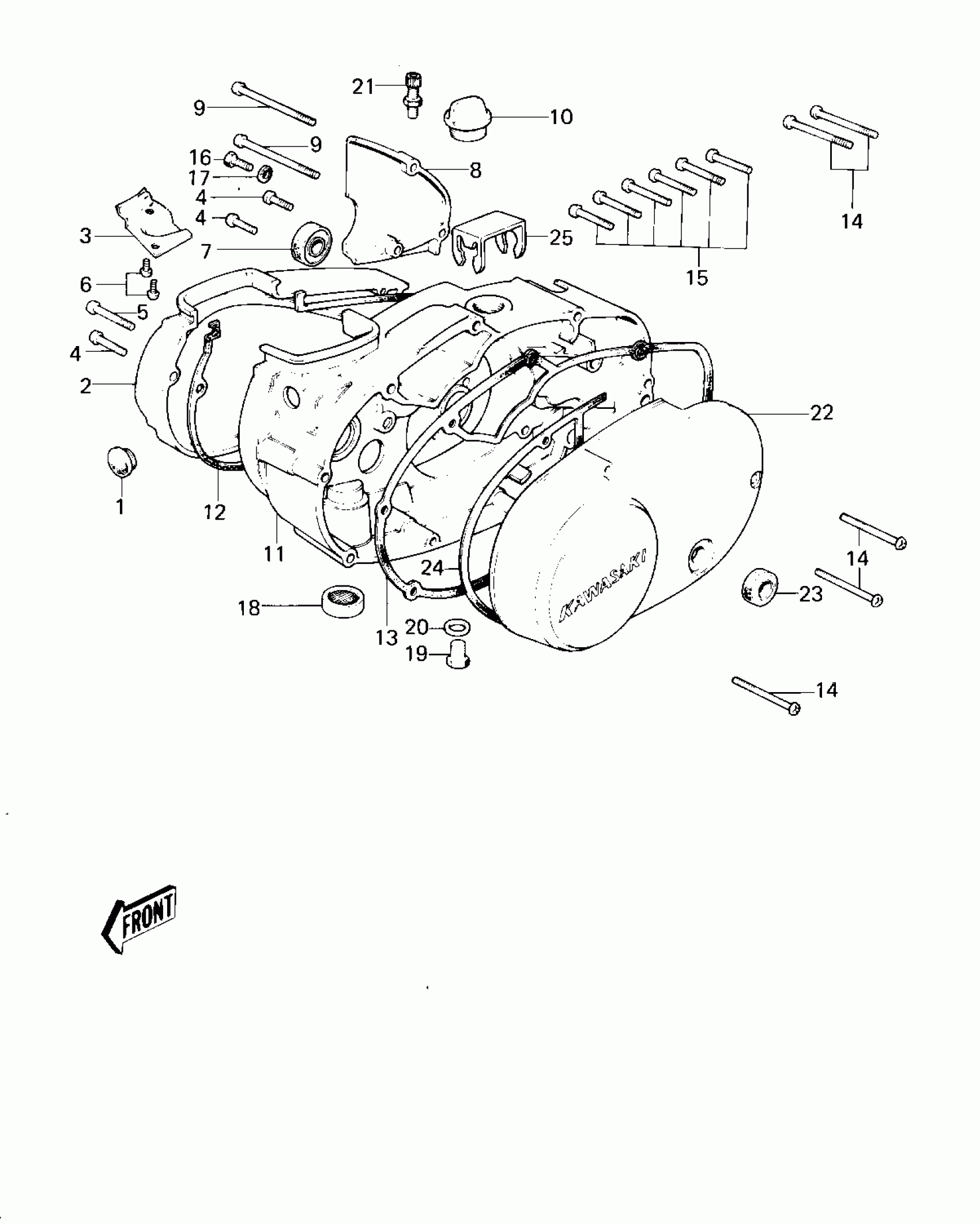

Kawasaki KM100 ENGINE COVERS Diagram
#
Description
Price
1
CAP,RUBBER
14039-001
$4.74
2
COVER,CARB BARREL
14030-1005
Unavailable
2
COVER,CARB BARREL
14030-1005
Unavailable
2
COVER,CARB BARREL
14030-1005
Unavailable
2
COVER-CARBURETOR
14030-1011
Unavailable
3
COVER,DRAIN PLUG
14025-1137
$10.53
3
COVER,DRAIN PLUG
14025-1137
$10.53
4
SCREW-PAN-CROS,6X20,WHITE
220B0620
$5.82
5
SCREW PAN HEAD 6X35
220B0635
$1.63
6
SCREW PAN HEAD 6X12
220B0612
Unavailable
7
OIL SEAL TB14257
653B142507
$21.16
8
COVER,OIL PUMP,BUFF
14030-050-80
Unavailable
8
COVER,OIL PUMP
14025-1185
Unavailable
9
SCREW-PAN-CROS,6X75
220B0675
$4.66
10
CAP-OIL FILLER
16115-018
$10.56
11
COVER,R.H,ENG,BARREL
14032-1017
Unavailable
11
COVER,R.H,ENG,BARREL
14032-1017
Unavailable
11
COVER,R.H.ENGINE
14032-1029
Unavailable
12
GASKET,CARBURETOR COVER
11060-1201
$28.70
13
GASKET,CLUTCH COVER
11060-1198
$26.22
14
SCREW PAN HEAD 6X45
220B0645
$1.71
15
SCREW PAN HEAD 6X30
220B0630
$3.41
16
BOLT,HEX HEAD,6X14
92001-121
$4.39
17
WASHER OIL PUMP BANJO
92022-077
$3.99
18
PLUG,25X12
16116-006
$15.74
19
PLUG,DRAIN,10X12
92067-001
$4.41
20
GASKET,10.5X16X1
92065-058
$3.96
21
ADJUSTER-CABLE
16002-012
$11.69
22
COVER,L.H ENG.BUFF
14031-078-80
Unavailable
22
COVER,L.H.ENGINE
14031-1029
Unavailable
22
COVER,L.H.ENGINE
14031-1029
Unavailable
22
COVER-GENERATOR
14031-1043
Unavailable
23
SEAL-OIL,SB12205
92049-004
$9.58
24
GASKET,GENERATOR COVER
14045-020
$23.41
25
CLAMP,OIL PUMP CABLE
92037-1107
$4.51
