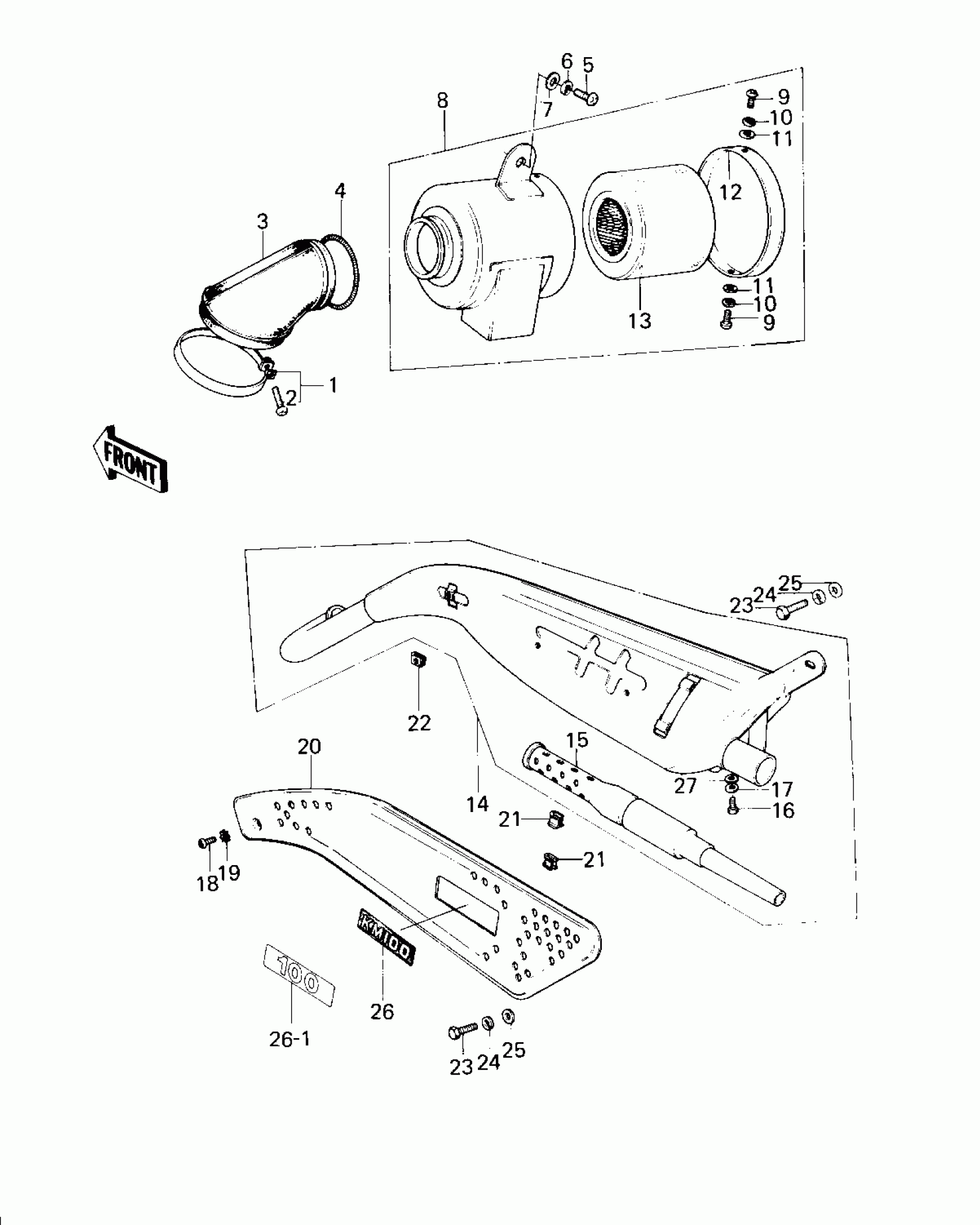

Kawasaki KM100 AIR CLEANER/MUFFLER (KM100-A1~A4) Diagram

#

Description
Price

1

CLAMP

92037-068

$11.91

2

SCREW PAN HEAD 6X35

220B0635

$1.63

3

CONNECTOR,AIR CLEANER

11026-009

Unavailable

3

DUCT,AIR CLEANER

14073-1007

$14.66

4

SPRING COIL

92081-047

$11.29

5

SCREW PAN HEAD 6X12

220B0612

Unavailable

6

WASHER SPRING 6MM

461F0600

$0.69

7

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

8

AIR CLEANER ASY,BLACK

11010-068-10

Unavailable

8

AIR CLEANER ASSY

11010-1016-10

Unavailable

9

SCREW PAN HEAD 5X8

220B0508A

$0.47

9

SCREW PAN HEAD 5X10

220B0510

$0.69

10

WASHER SPRING 5MM

461F0500

$0.69

11

WASHER PLAIN 5MM

410B0500

$0.46

12

CAP,AIR CLEANER

11012-041

Unavailable

12

CAP,AIR CLEANER

11012-1028

Unavailable

13

ELEMENT,AIR,CLNR

11013-044

Unavailable

13

ELEMENT,AIR CLNR

11013-1009

Unavailable

14

MUFFLER ASSY,F.BLACK

18001-167-21

Unavailable

15

BAFFLE TUBE

18033-096

Unavailable

16

BOLT,6X10

112G0610

$0.58

17

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

18

SCREW PAN HEAD 6X12

220E0612

$4.60

19

WASHER LOCK 6MM

463H0600

Unavailable

20

COVER,MUFFLER

18064-018

Unavailable

21

INSULATOR

18065-007

$5.59

22

INSULATOR-HEAT

18065-009

$4.62

23

BOLT-SMALL-UPSET,8X16

115G0816

$0.68

24

WASHER SPRING 8MM

461F0800

$0.40

25

WASHER PLAIN 8MM

411B0800

$0.93

26

EMBLEM,SIDE COVER

56018-241

$9.98

26-1

EMBLEM,MUFFLER COVER

56018-1043

Unavailable

27

WASHER-PLAIN

92022-183

$3.92
