1995 Kawasaki KLX650R Shock Absorber Diagram

← All diagrams

Find the part on the Shock Absorber diagram for your 1995 Kawasaki KLX650R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

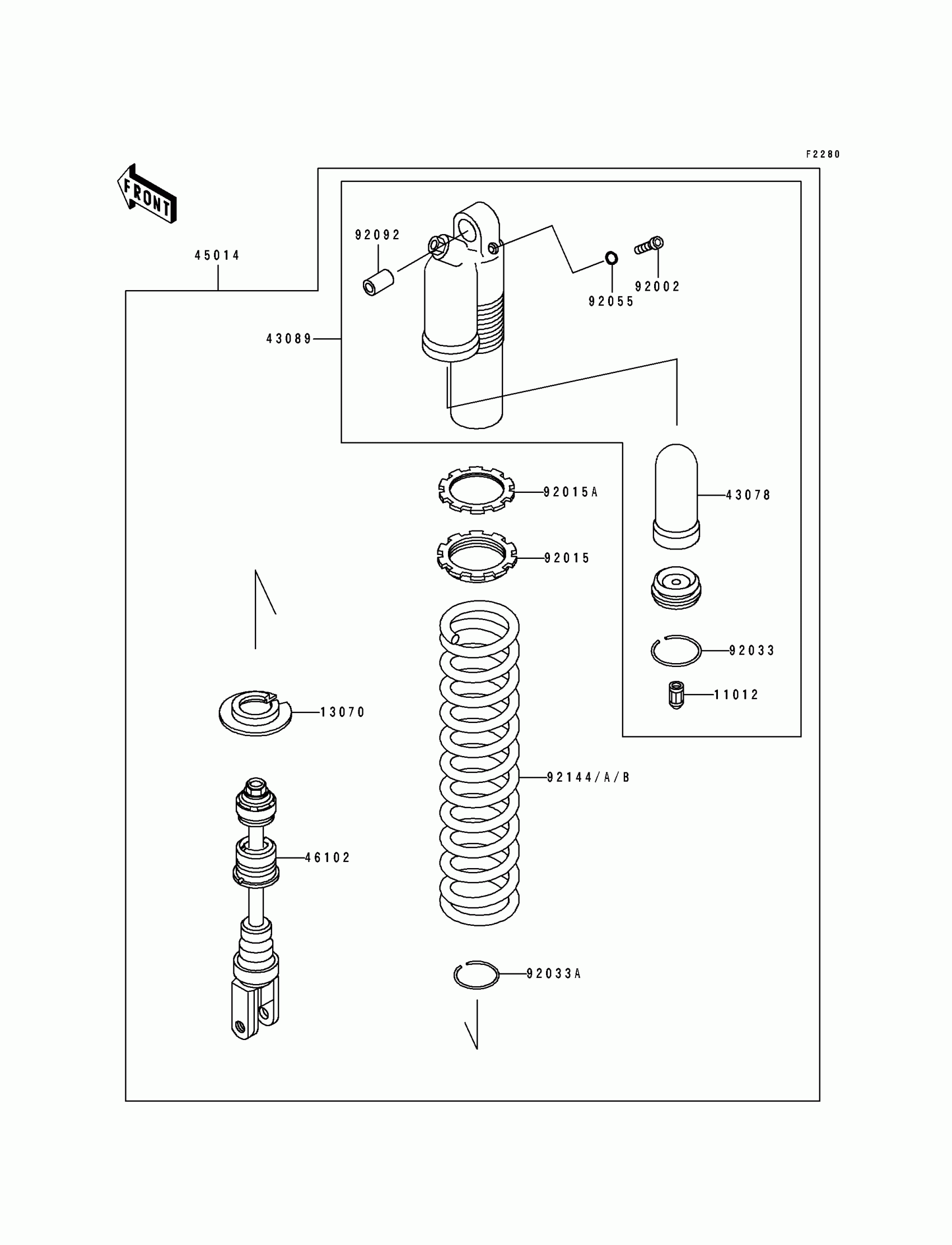

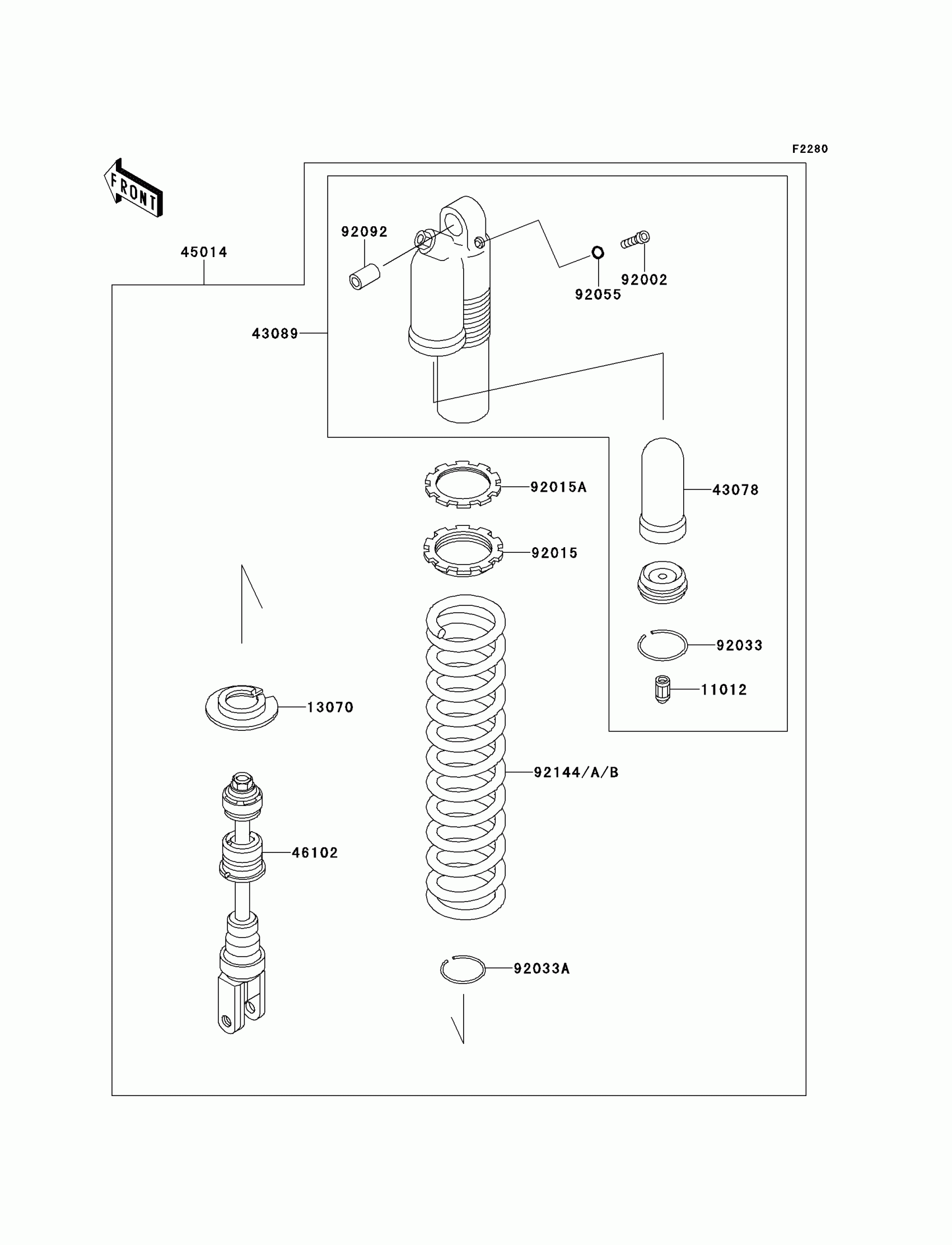

1995 Kawasaki KLX650R Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,VALVE AIR

11012-1391

1

$5.02

In stock

13070

GUIDE,SPRING

13070-1165

1

$36.09

In stock

43078

1

$125.95

In stock

43089

CYLINDER-SHOCKABSORBER

43089-1151

1
Out of stock

45014

SHOCKABSORBER,YELLOW

45014-1545-VP

1
Out of stock

46102

ROD,SHOCKABSORBER

46102-1343

1
Out of stock

92002

BOLT,DRAIN

92002-1955

1
Out of stock

92015

NUT,SPRING ADJUST

92015-1703

1

$41.28

In stock

92015A

1

$38.81

In stock

92033

RING-SNAP

92033-1209

1

$7.31

In stock

92033A

1

$4.39

In stock

92055

RING-O

92055-1383

1

$3.27

In stock

92092

1

$29.37

In stock

92144

SPRING,SHOCKABSORBER,K=7.4,YEL

92144-1692-VP

1
Out of stock

92144A

SPRING,SHOCKABSORBER,K=7.2,YEL

92144-1747-VP

1
Out of stock

92144B

SPRING,SHOCKABSORBER,K=7.6,YEL

92144-1748-VP

1
Out of stock
