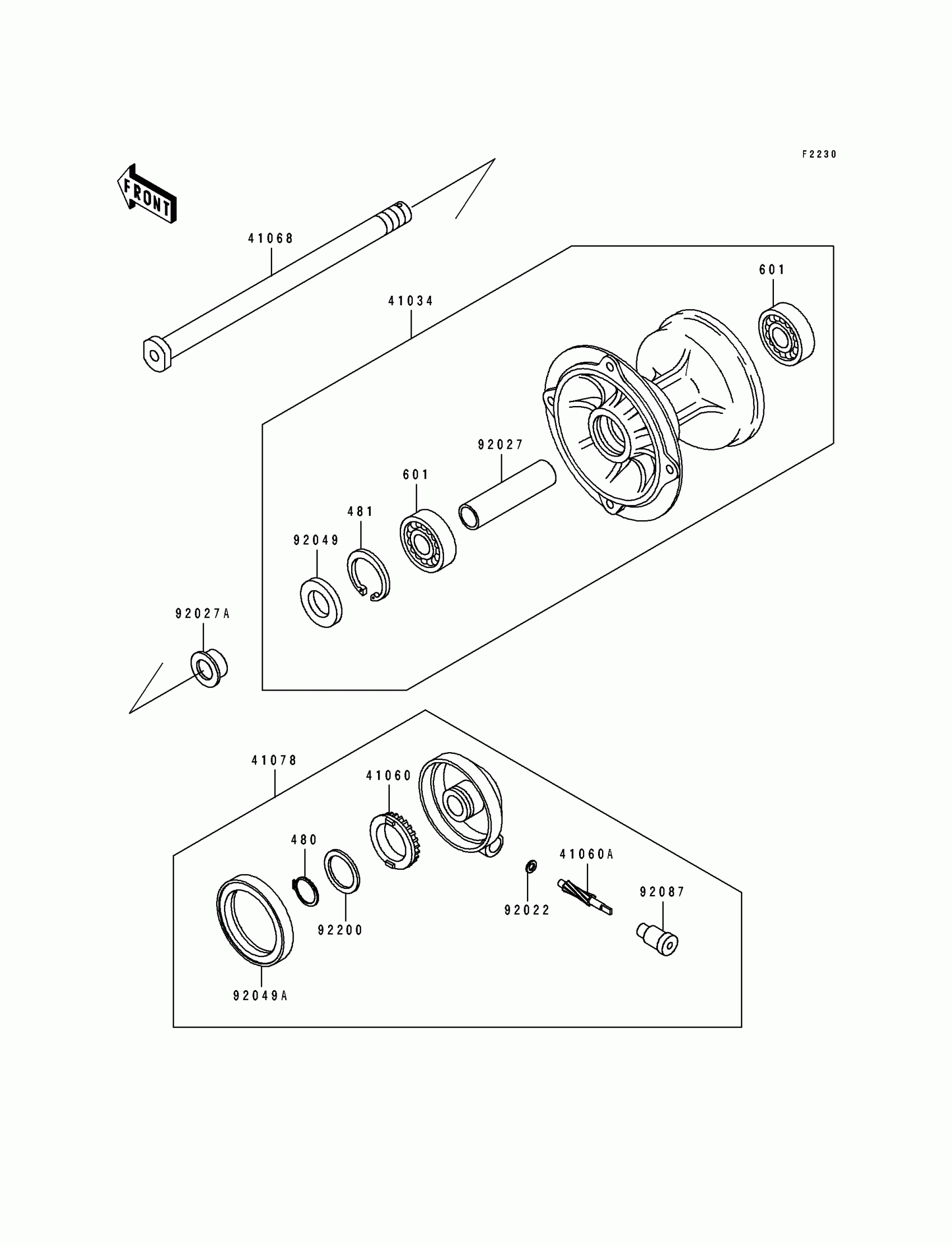

Kawasaki KLX650R Front Hub Diagram

Description

Price

41034

DRUM-ASSY,FRONT BRAKE

41034-1219

$603.90

41060

GEAR-METER SCREW,25T

41060-1143

$31.48

41060A

GEAR-METER SCREW,8T

41060-1144

$15.19

41068

AXLE,FR

41068-1352

$119.70

41078

CASE-ASSY-METER GEAR

41078-1095

$121.46

92022

WASHER,5X9.5X0.8

92022-1511

$3.66

92027

COLLAR,15.2X22.2X75

92027-1958

$41.65

92027A

COLLAR,L=12

92027-1959

$15.76

92049

SEAL-OIL,MH20354.5

92049-1176

$14.24

92049A

SEAL-OIL,SDD 50 62 7

92049-1399

$18.76

92087

BUSHING-METER GEAR

92087-1060

$18.19

92200

WASHER,24X31X0.8

92200-1137

$4.25

480

CIRCLIP-TYPE-C,24MM

480J2400

$4.65

481

CIRCLIP-TYPE-C,35MM

481J3500

$1.42

601

BEARING-BALL,#6202UG

601B6202UG

$15.51
