Description

Price

13107

SHAFT,SUSPENSION ARM

13107-1307

Unavailable

39007

ARM-SUSP,UNI TRAK

39007-1225

Unavailable

42036

SLEEVE,20X28X60

42036-1207

$34.48

42036A

SLEEVE,15X22X57

42036-1245

$21.29

42036B

SLEEVE,10X16X19

42036-1248

$9.91

46102

ROD,SUSPENSION

46102-1348

Unavailable

92001

BOLT,FLANGED,10X44

92001-1499

$5.52

92015

NUT,FLANGED,16MM

92015-1316

$24.01

92015A

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92022

WASHER,16X32X3.2

92022-1701

$4.69

92025

SHIM,15.3X27.5X0.6

92025-1135

$4.38

92046

BEARING-NEEDLE,BM2817

92046-1111

$21.86

92046A

BEARING-NEEDLE,F-2220

92046-1162

$21.24

92046B

BEARING-NEEDLE,16BM2212

92046-1192

$18.21

92049

SEAL-OIL,28X34X5.7

92049-1181

$9.28

92049A

SEAL-OIL,MHA22 28 5.7F

92049-1254

$9.28

92049B

SEAL-OIL

92049-1330

$12.29

92150

BOLT,ROD,12X93

92150-1337

$29.71

92150A

BOLT,FLANGED,10X40

92150-1711

$12.35

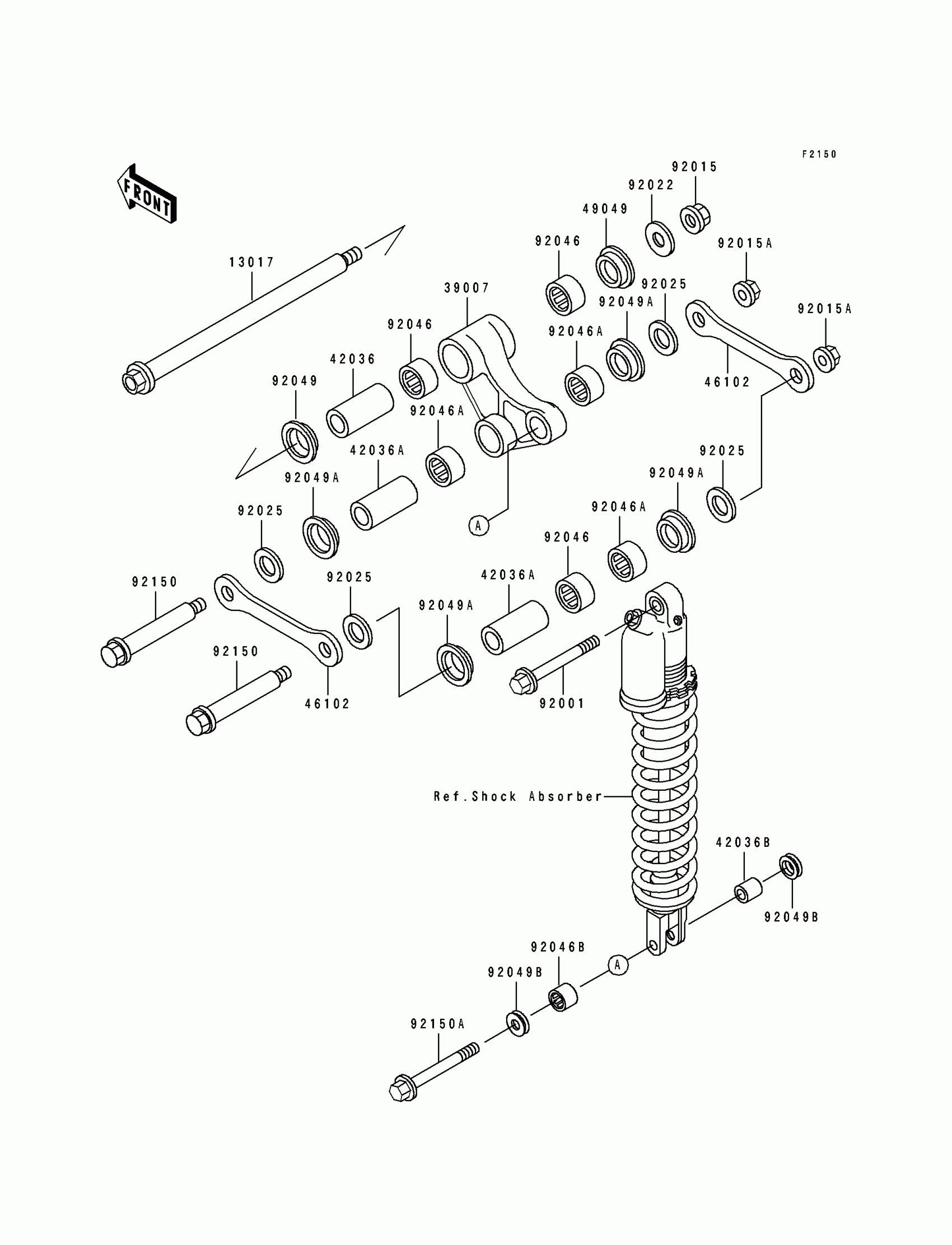

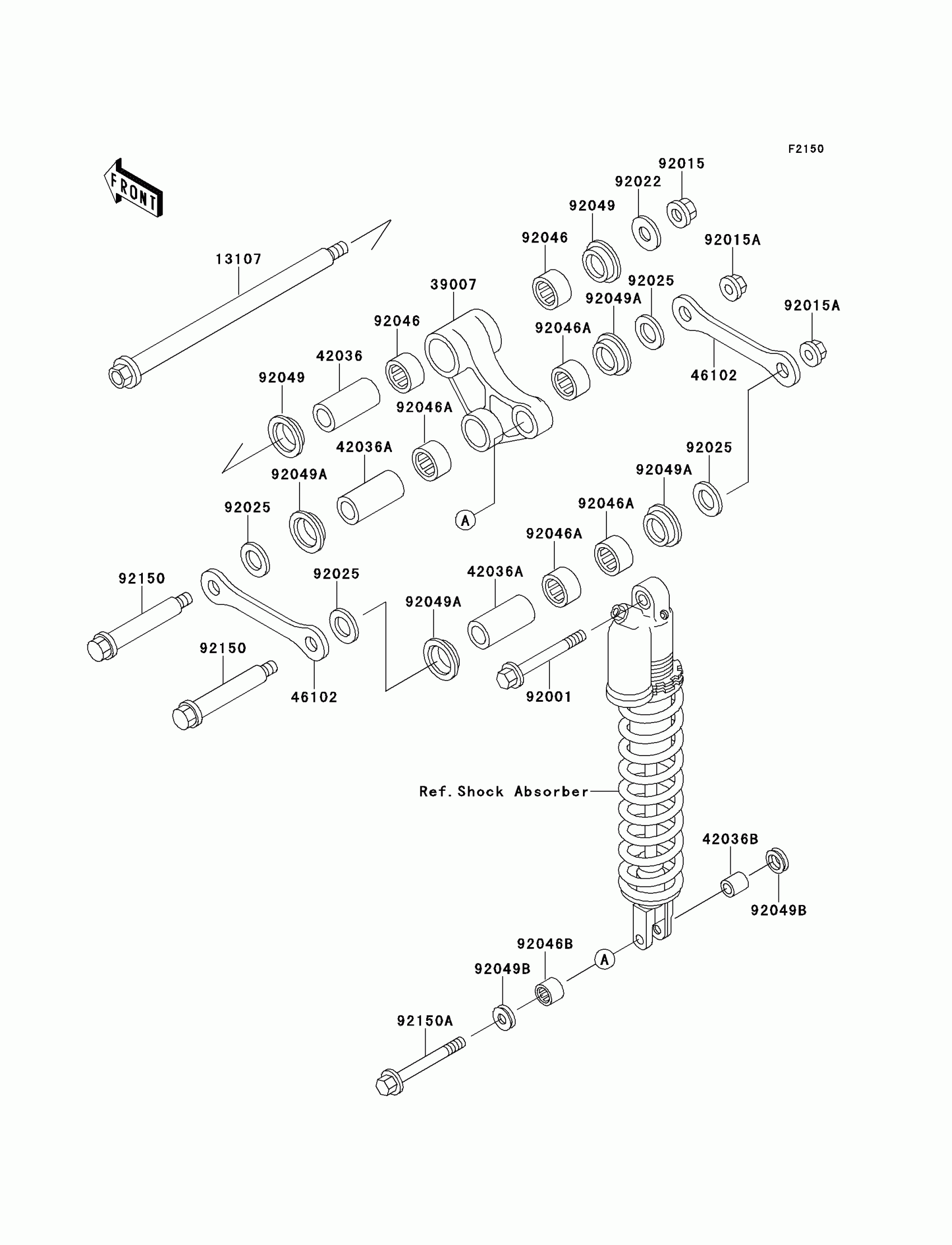

Kawasaki KLX650R Rear Suspension Diagram

SHAFT,SUSPENSION ARM

ARM-SUSP,UNI TRAK

SLEEVE,20X28X60

SLEEVE,15X22X57

SLEEVE,10X16X19

ROD,SUSPENSION

BOLT,FLANGED,10X44

NUT,FLANGED,16MM

NUT,LOCK,FLANGED,12MM

WASHER,16X32X3.2

SHIM,15.3X27.5X0.6

BEARING-NEEDLE,BM2817

BEARING-NEEDLE,F-2220

BEARING-NEEDLE,16BM2212

SEAL-OIL,28X34X5.7

SEAL-OIL,MHA22 28 5.7F

SEAL-OIL

BOLT,ROD,12X93

BOLT,FLANGED,10X40
