Description

Price

13070

GUIDE,HOSE

13070-1144

$8.03

13159

CONNECTOR

13159-1056

$14.10

43010

ROD-ASSY-BRAKE

43010-1068

$51.24

43015

CYLINDER-ASSY-MASTER,RR

43015-1469

Unavailable

43020

PISTON-COMP-BRAKE

43020-1057

$65.22

43026

CAP-BRAKE

43026-1075

$13.61

43028

DIAPHRAGM

43028-1067

$18.72

43059

HOSE-BRAKE

43059-1561

$15.50

43059A

HOSE-BRAKE,RR

43059-1757

$80.20

43067

WASHER,10.5X15X1.5

43067-001

$2.15

43078

RESERVOIR

43078-1122

$30.34

92002

BOLT,OIL,L=23

92002-1888

$5.48

92009

SCREW,6X14,WHITE

92009-1287

$2.55

92009A

SCREW,4X40

92009-1596

$3.94

92022

WASHER,8.5X13X1

92022-1028

$3.92

92022A

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$4.96

92037

CLAMP

92037-1710

$9.91

92043

PIN

92043-1039

$9.91

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92081

SPRING,MASTER CYLINDER

92081-1737

$12.23

92150

BOLT,FLANGED,6X25

92150-1507

$4.80

221

SCREW-CSK-CROS,6X16

221B0616

$0.59

550

PIN COTTER 2.0X15

550D2015

$1.04

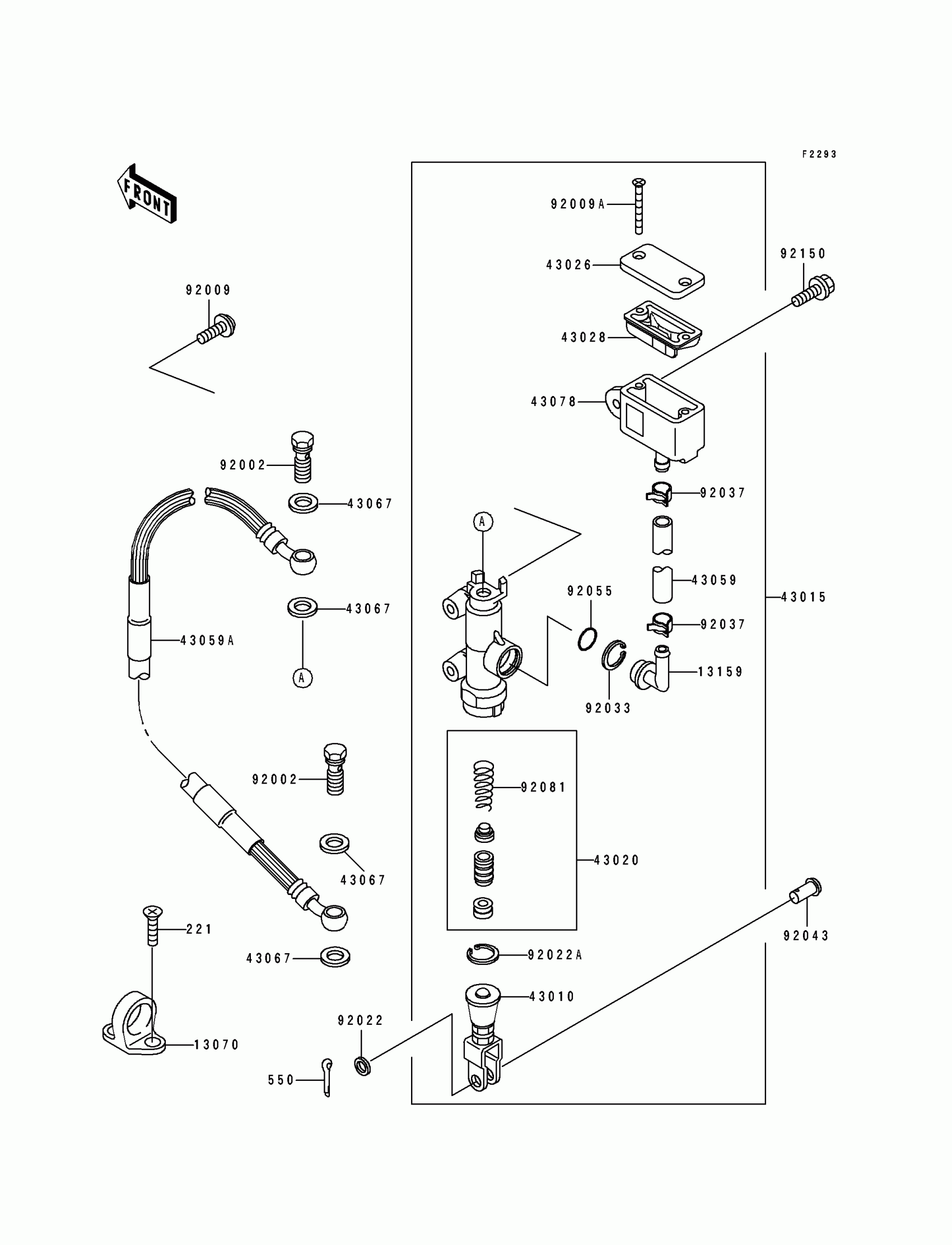

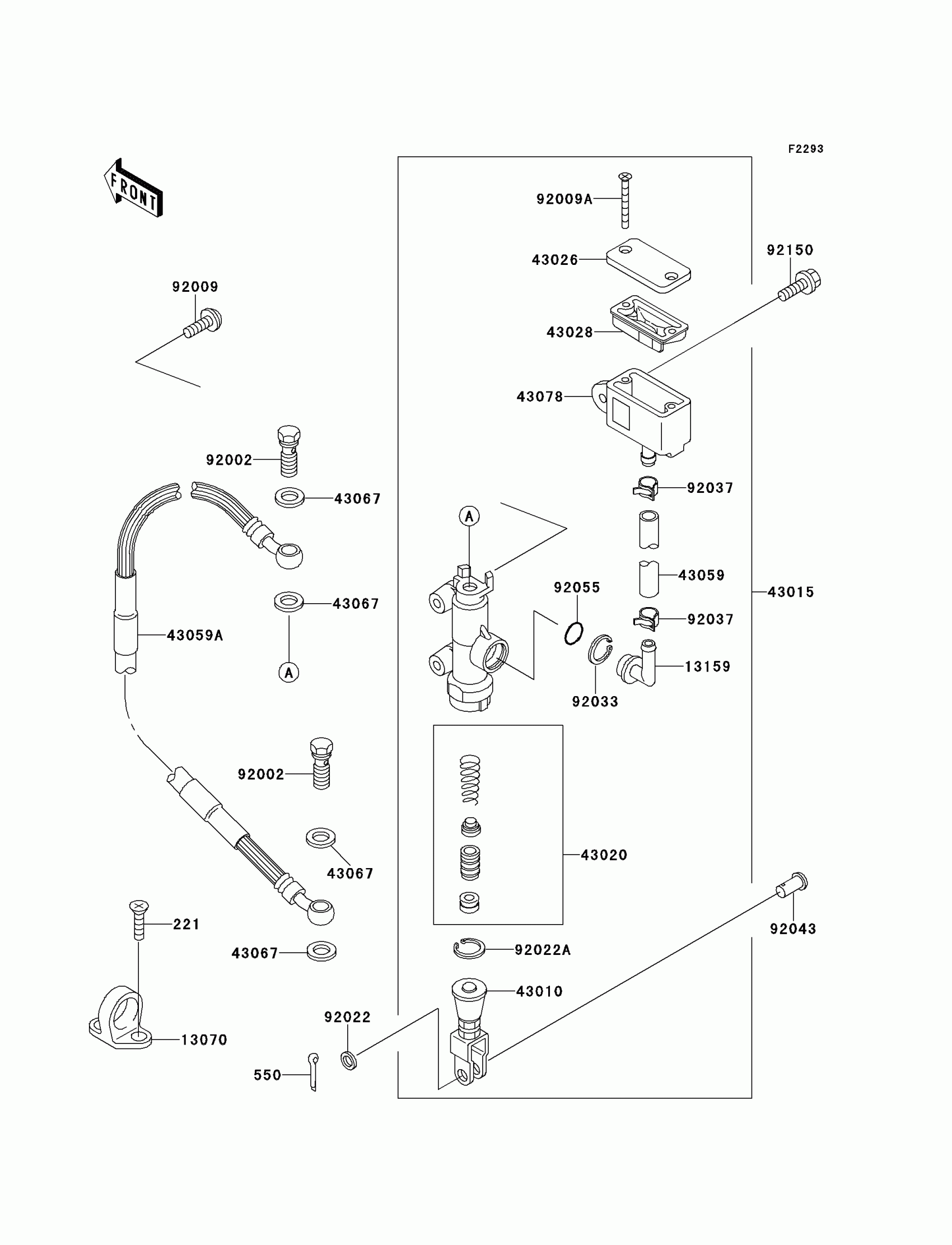

Kawasaki KLX650R Rear Master Cylinder Diagram

GUIDE,HOSE

CONNECTOR

ROD-ASSY-BRAKE

CYLINDER-ASSY-MASTER,RR

PISTON-COMP-BRAKE

CAP-BRAKE

DIAPHRAGM

HOSE-BRAKE

HOSE-BRAKE,RR

WASHER,10.5X15X1.5

RESERVOIR

BOLT,OIL,L=23

SCREW,6X14,WHITE

SCREW,4X40

WASHER,8.5X13X1

WASHER,CIRCRIP

RING-SNAP,20.5MM

CLAMP

PIN

RING-O,MASTER CYLINDER

SPRING,MASTER CYLINDER

BOLT,FLANGED,6X25

SCREW-CSK-CROS,6X16

PIN COTTER 2.0X15
