Description

Price

11012

CAP,AXLE

11012-1581

$6.51

41034

DRUM-ASSY,REAR BRAKE

41034-1216

$622.02

41068

AXLE,RR

41068-1340

Unavailable

42041

SPROCKET-HUB,46T

42041-1381

$73.98

42041A

SPROCKET-HUB,47T

42041-1382

$73.98

42041B

SPROCKET-HUB,48T,STEEL

42041-1383

$73.98

42041C

SPROCKET-HUB,49T,STEEL

42041-1384

$73.98

42041D

SPROCKET-HUB,50T,STEEL

42041-1408

$70.97

42041E

SPROCKET-HUB,45T

42041-1413

$73.98

92015

NUT,8MM

92015-1432

$6.57

92015A

NUT,LOCK,20MM

92015-1770

$28.25

92033

RING-SNAP,42MM

92033-1041

$6.16

92045

BEARING-BALL,6004X8JRLLX2/3A

92045-1239

$32.87

92049

SEAL-OIL,BJNC2 25425

92049-1203

$17.91

92057A

CHAIN,DID520VL2X110L,ENDLESS

92057-1410

$182.82

92143

COLLAR,RR AXLE,L=22

92143-1259

$35.43

92143A

COLLAR,RR BRAKE DRUM,L=105

92143-1402

$17.09

92150

BOLT,SOCKET,8X28

92150-1196

$8.58

92200

WASHER,20.2X36X2

92200-1146

$5.00

410

WASHER PLAIN 8MM

410B0800

$0.93

550

PIN-COTTER,3.0X25

550D3025

$0.58

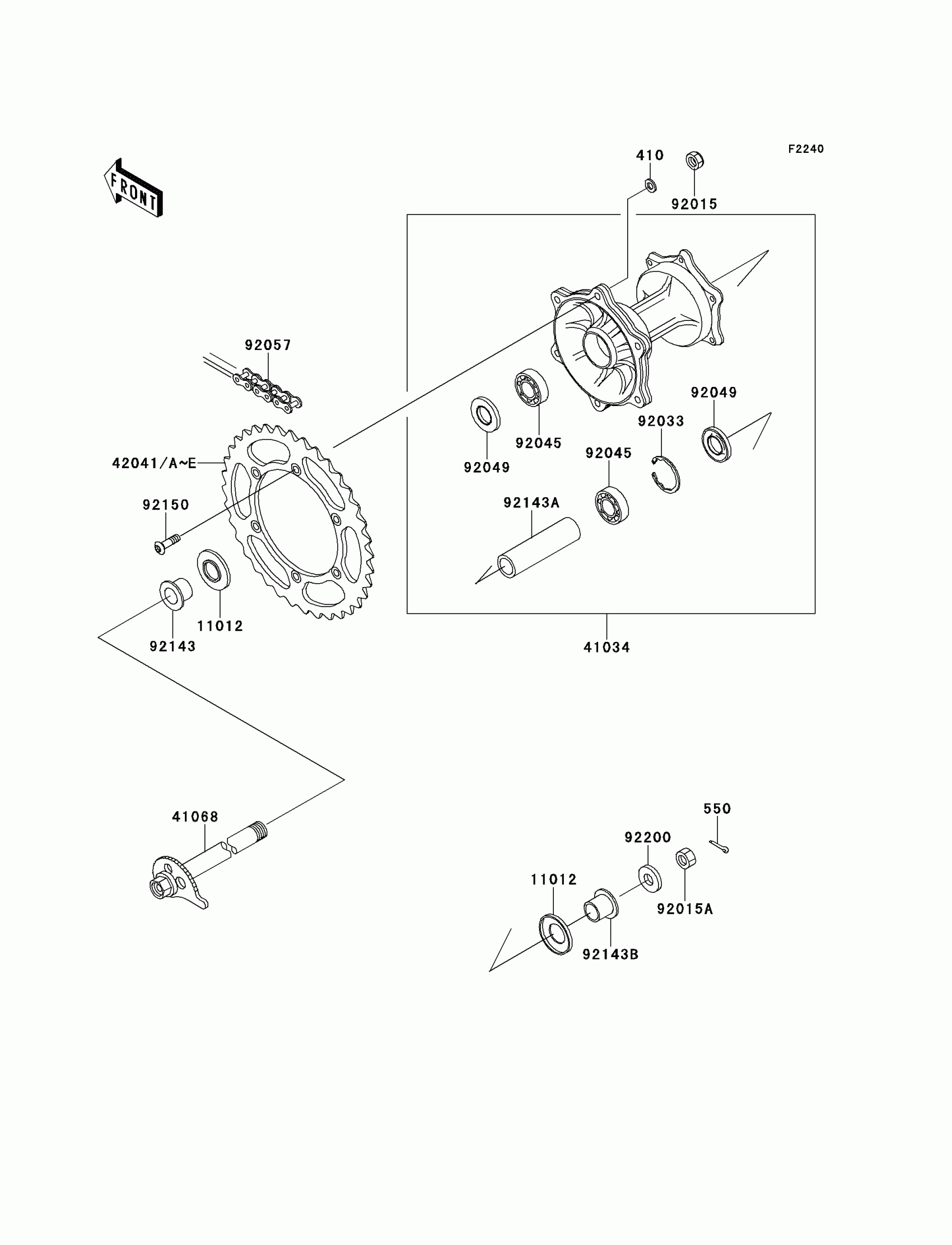

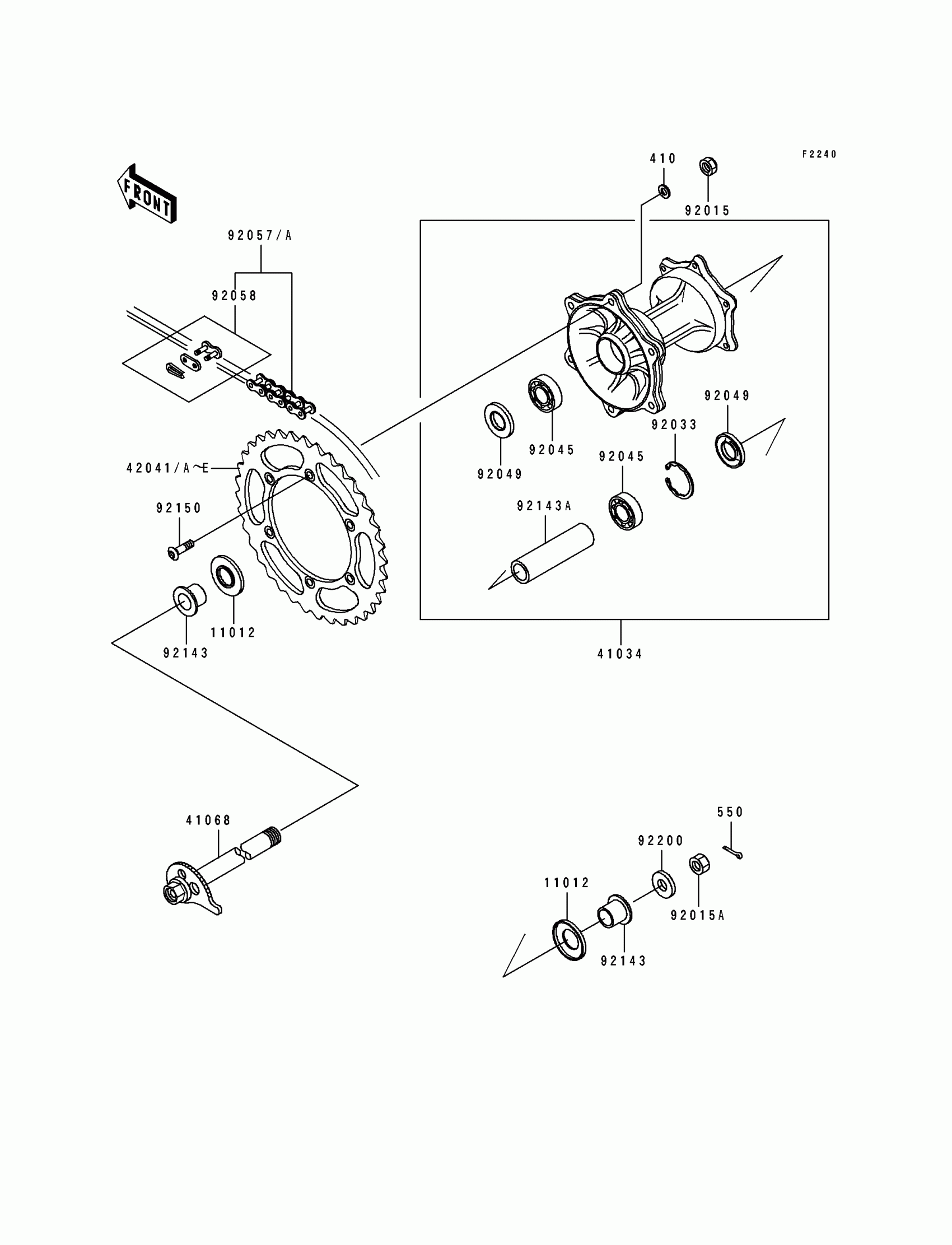

Kawasaki KLX650R Rear Hub Diagram

CAP,AXLE

DRUM-ASSY,REAR BRAKE

AXLE,RR

SPROCKET-HUB,46T

SPROCKET-HUB,47T

SPROCKET-HUB,48T,STEEL

SPROCKET-HUB,49T,STEEL

SPROCKET-HUB,50T,STEEL

SPROCKET-HUB,45T

NUT,8MM

NUT,LOCK,20MM

RING-SNAP,42MM

BEARING-BALL,6004X8JRLLX2/3A

SEAL-OIL,BJNC2 25425

CHAIN,DID520VL2X110L,ENDLESS

COLLAR,RR AXLE,L=22

COLLAR,RR BRAKE DRUM,L=105

BOLT,SOCKET,8X28

WASHER,20.2X36X2

WASHER PLAIN 8MM

PIN-COTTER,3.0X25
