Description

Price

11012

CAP,OIL FILTER

11012-1826

$65.53

11060

GASKET,OIL PUMP

11060-1115

$5.18

13107

SHAFT,OIL PUMP

13107-1304

Unavailable

13216

GEAR-COMP,OIL PUMP

13216-1139

Unavailable

16082

PUMP-ASSY-OIL

16082-1129

$206.84

16097

FILTER-ASSY-OIL

16097-1001

$12.23

16099

ELEMENT-OIL FILTER

16099-004

$9.26

16130

VALVE-ASSY-RELIEF

16130-1001

Unavailable

16142

COVER-PUMP

16142-1078

$38.08

16142A

COVER-PUMP

16142-1121

$39.41

16154

ROTOR-PUMP,INNER

16154-1069

$34.82

16154A

ROTOR-PUMP,OUTER

16154-1070

$34.82

16154B

ROTOR-PUMP,OIL

16154-1101

$36.08

16156

PISTON-ASSY,VALVE,BY-PASS

16156-002

$23.25

16160

BODY

16160-1137

$35.74

92027

COLLAR,13X20X9

92027-1695

$9.91

92042

PIN,DOWEL,4X15.8

92042-014

$0.43

92042A

PIN,DOWEL,4X12.8

92042-041

$6.57

92043

PIN,SPRING,2.2X13.5

92043-123

$4.69

92071

GROMMET,OIL STRAINER

92071-100

$5.46

92071A

GROMMET,OIL FILTER

92071-101

$5.46

92081

SPRING,PISTON

92081-043

$5.46

92136

VALVE

92136-002

$4.65

120

BOLT-SOCKET,6X16

120P0616

$2.33

132

BOLT-FLANGED-SMALL,6X20

132Y0620

$3.84

220

SCREW-PAN-CROS,6X14

220B0614

$1.48

220A

SCREW PAN HEAD 6X25

220B0625

$2.60

551

PIN-DOWEL,6X8

551A0608

$3.92

671

O RING,55MM

671B2555

$6.22

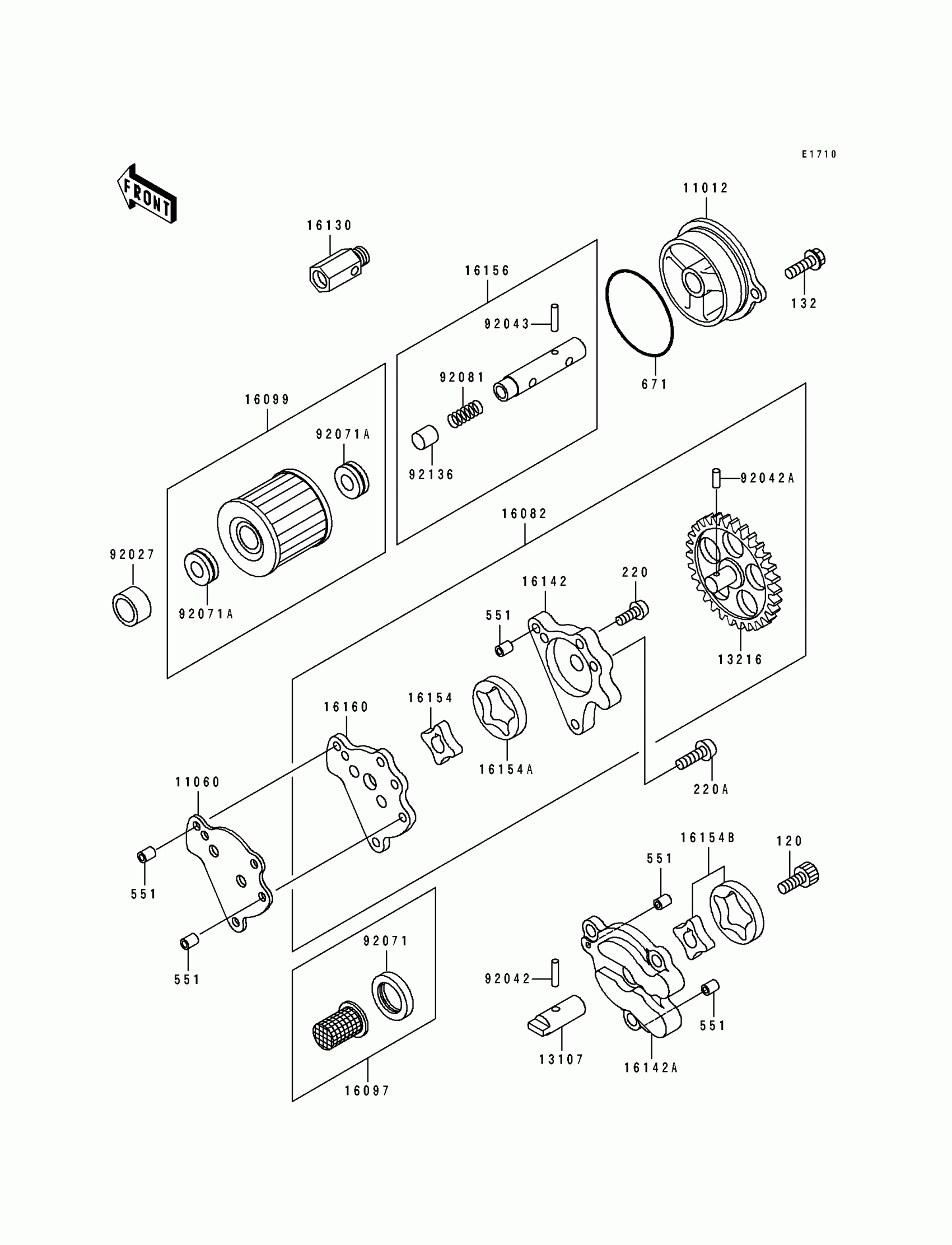

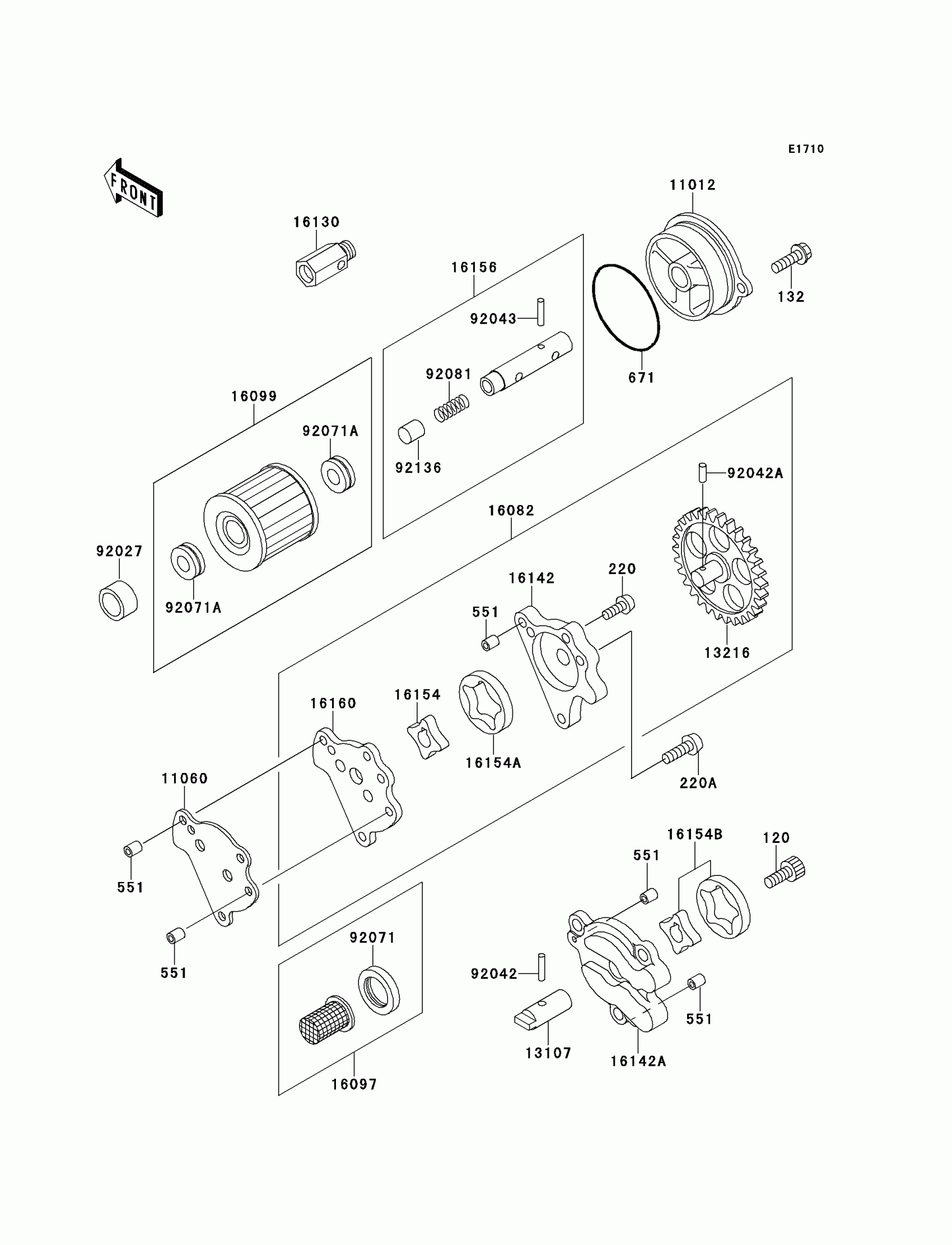

Kawasaki KLX650R Oil Pump Diagram

CAP,OIL FILTER

GASKET,OIL PUMP

SHAFT,OIL PUMP

GEAR-COMP,OIL PUMP

PUMP-ASSY-OIL

FILTER-ASSY-OIL

ELEMENT-OIL FILTER

VALVE-ASSY-RELIEF

COVER-PUMP

COVER-PUMP

ROTOR-PUMP,INNER

ROTOR-PUMP,OUTER

ROTOR-PUMP,OIL

PISTON-ASSY,VALVE,BY-PASS

BODY

COLLAR,13X20X9

PIN,DOWEL,4X15.8

PIN,DOWEL,4X12.8

PIN,SPRING,2.2X13.5

GROMMET,OIL STRAINER

GROMMET,OIL FILTER

SPRING,PISTON

VALVE

BOLT-SOCKET,6X16

BOLT-FLANGED-SMALL,6X20

SCREW-PAN-CROS,6X14

SCREW PAN HEAD 6X25

PIN-DOWEL,6X8

O RING,55MM
