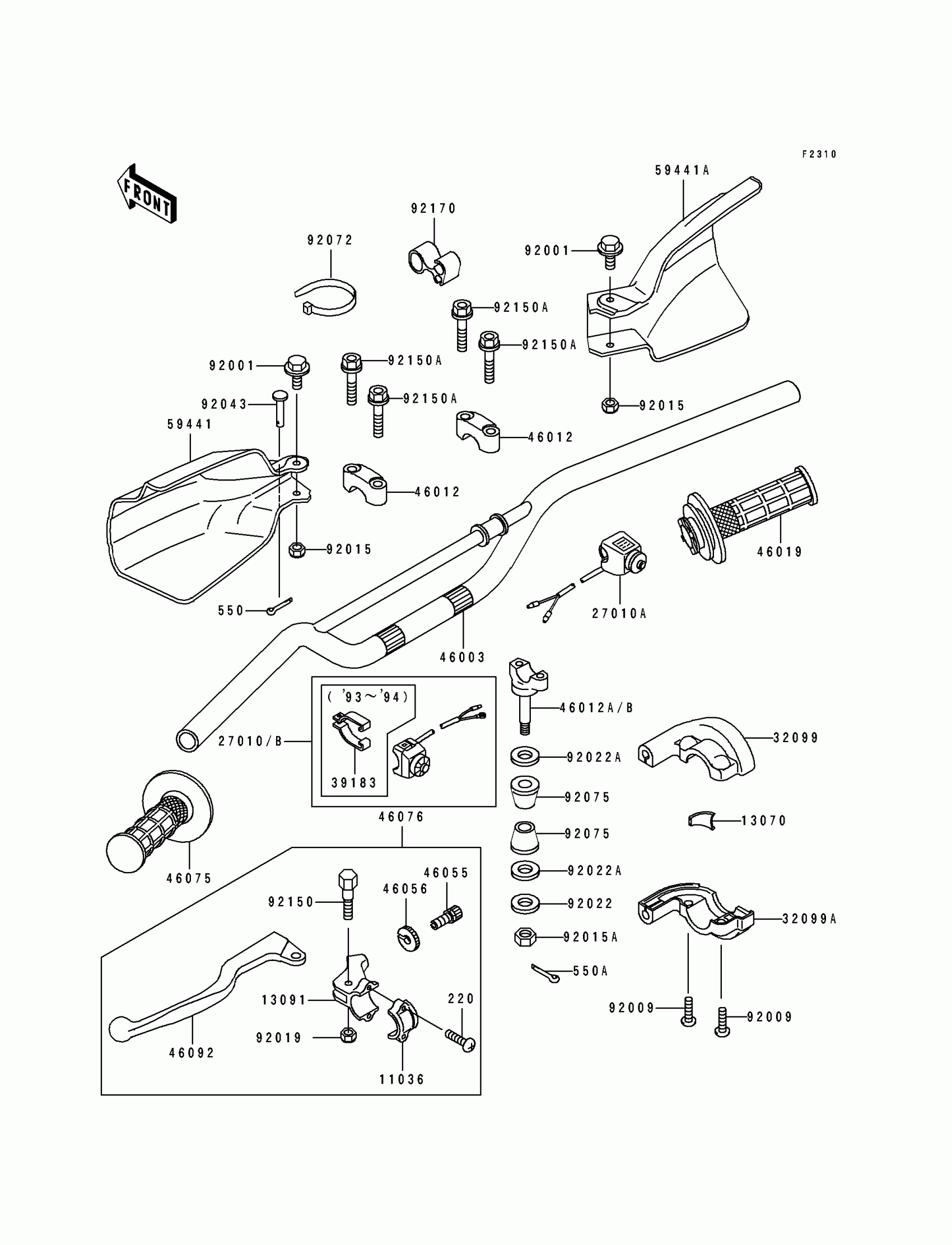

Kawasaki KLX650R Handlebar Diagram
#
Description
Price
11036
BRACKET-A,LEVER HOLDER
11036-1297
Unavailable
13070
GUIDE,THROTTLE CABLE
13070-1270
$5.18
13091
HOLDER,CLUTCH LEVER
13091-1131
$46.92
27010A
SWITCH,LIGHTING
27010-1279
$76.66
27010B
SWITCH,ENGINE STOP
27010-1350
$56.15
32099
CASE,THROTTLE,UPP
32099-1143
$34.48
32099A
CASE,THROTTLE,LWR
32099-1144
$34.48
46003
HANDLE,SILVER NO.25
46003-1379-CE
$124.71
46012
HOLDER-HANDLE,UPP
46012-1191
$33.90
46012B
HOLDER-HANDLE,LWR
46012-1263
Unavailable
46019
GRIP-ASSY,THROTTLE
46019-1078
$37.37
46055
SCREW,CABLE ADJUST,8MM
46055-009
$19.07
46056
NUT,CABLE ADJUST
46056-006
$8.94
46075
GRIP,LH
46075-1107
$29.17
46076
LEVER-ASSY-GRIP,CLUTCH
46076-1163
$53.43
46092
LEVER-GRIP,CLUTCH
46092-1110
$26.28
59441
COVER-HANDLE,LH,L.GREEN
59441-1094-6W
$26.13
59441A
COVER-HANDLE,RH,L.GREEN
59441-1108-6W
$26.13
92001
BOLT,FLANGED,6X10
92001-1034
$10.28
92009
SCREW,5X16
92009-1699
$3.98
92015
NUT,LOCK,FLANGED,6MM
92015-1603
$4.69
92015A
NUT,LOCK,10MM
92015-1962
$6.11
92019
NUT,LOCK,6MM
92019-008
$4.26
92022
WASHER,10.2X28X2
92022-1088
$4.69
92022A
WASHER
92022-1737
$5.52
92043
PIN,5X27.5
92043-1434
$9.21
92072
BAND,L=140
92072-1293
$7.11
92075
DAMPER
92075-1776
$8.76
92150
BOLT
92150-1291
$24.02
92150A
BOLT,FLANGED,8X35
92150-1696
$6.16
92170
CLAMP,BRAKE HOSE
92170-1255
$9.05
220
SCREW-PAN-CROS
220C0514
$1.81
550
PIN COTTER 1.2X10
550D1210
$2.65
550A
PIN-COTTER,2.0X20
550D2020
$0.96
