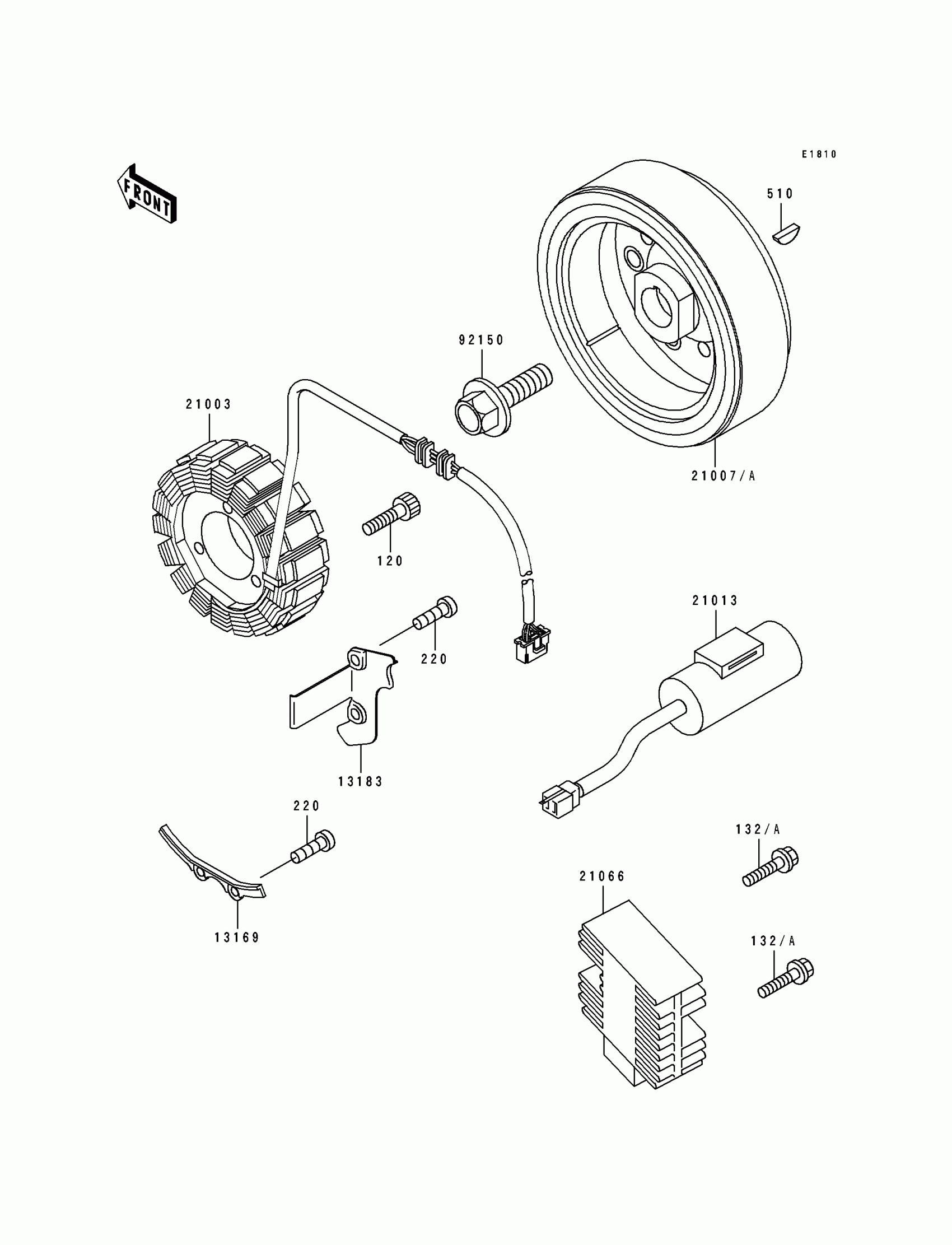

Kawasaki KLX650R Generator Diagram

Description

Price

120

BOLT-SOCKET,5X30

120P0530

$5.14

132

BOLT-FLANGED-SMALL

132G0620

$2.33

220

SCREW PAN HEAD 5X8

220B0508

$0.46

510

KEY-WOODRUFF

510A3100

$2.70

13169

PLATE,PULSING COIL LEAD

13169-1882

$8.86

13183

PLATE

13183-1871

Unavailable

21003

STATOR

21003-1252

Unavailable

21013

CONDENSER

21013-1051

Unavailable

21066

REGULATOR-VOLTAGE

21066-1088

Unavailable

92150

BOLT,12X50

92150-1708

$7.34

21007

ROTOR,MAGNETO

21007-1269

$552.05

21007A

ROTOR,MAGNETO

21007-1270

Unavailable
