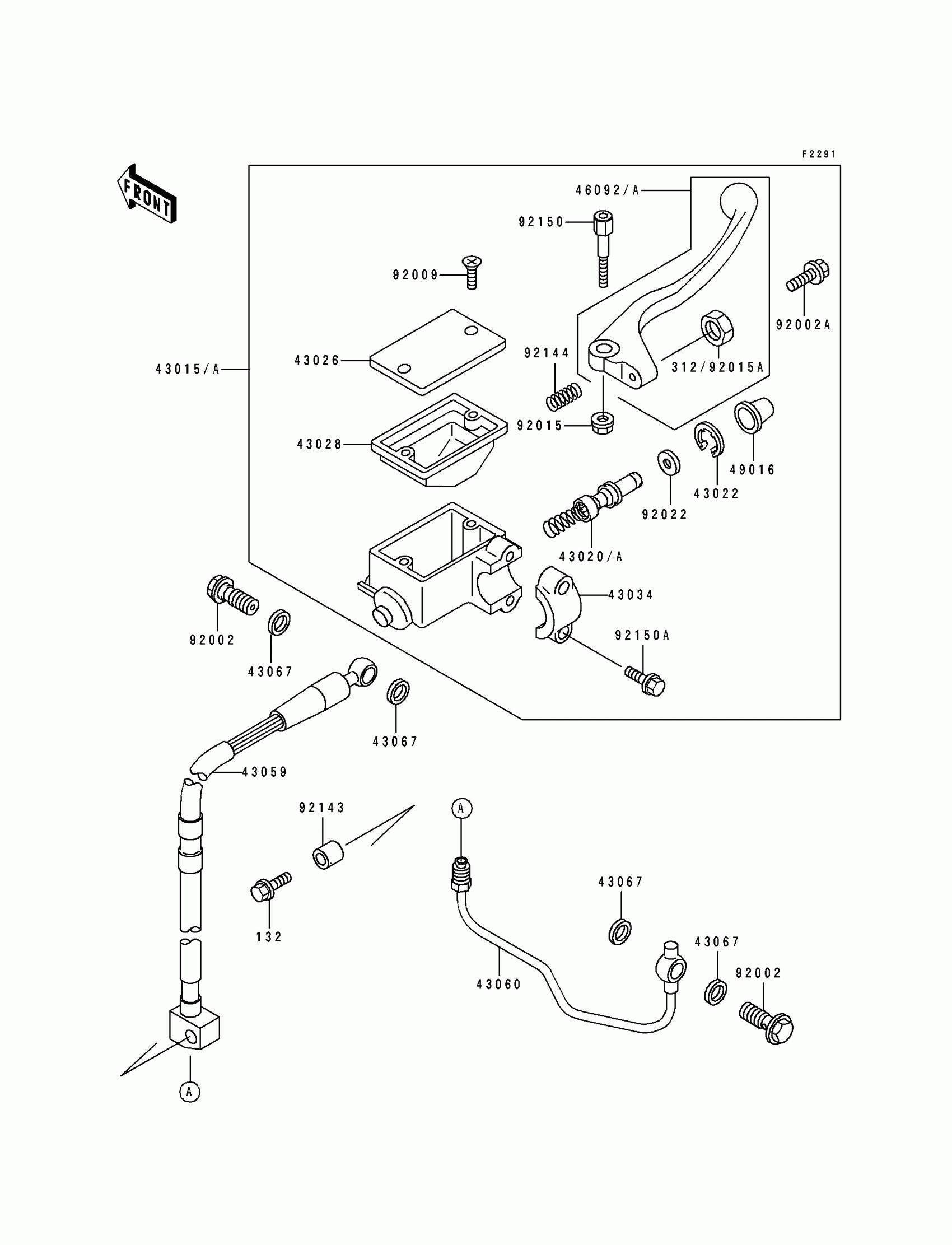

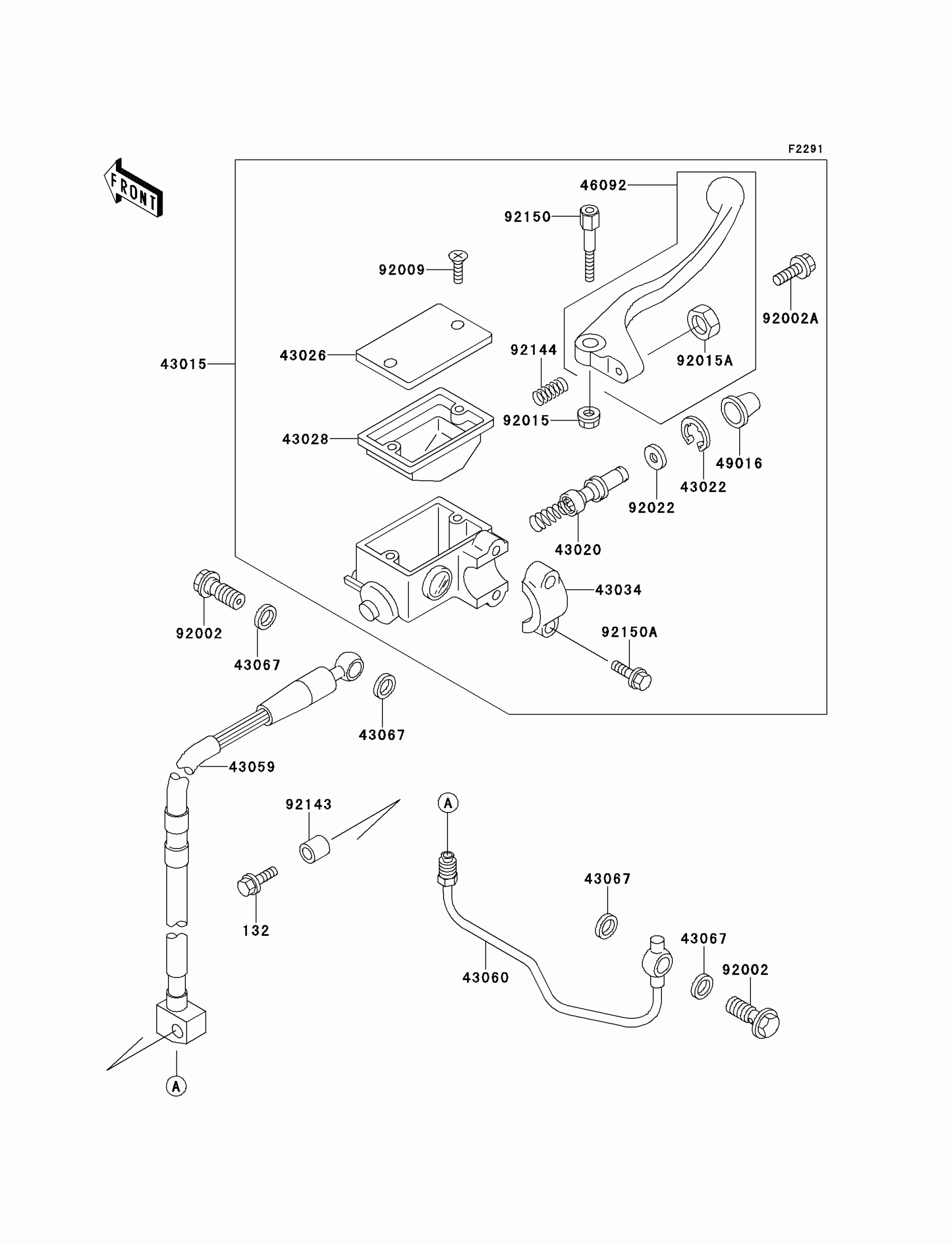

Kawasaki KLX650R Front Master Cylinder Diagram

Description

Price

43015A

CYLINDER-ASSY-MASTER,FR

43015-1553

$323.07

43020A

PISTON-COMP-BRAKE

43020-1109

$57.35

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-1075

$13.61

43028

DIAPHRAGM

43028-1067

$18.72

43034

HOLDER-BRAKE

43034-1110

$19.45

43059

HOSE-BRAKE,FR

43059-1693

$178.47

43060

PIPE-BRAKE,FR

43060-1092

Unavailable

43067

WASHER,10.5X15X1.5

43067-001

$2.15

46092A

LEVER-GRIP,FRONT BRAKE

46092-1186

$24.35

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

92002

BOLT,OIL,L=23

92002-1888

$5.48

92002A

BOLT,ADJUST

92002-1893

$7.45

92009

SCREW,4MM

92009-1458

$3.21

92015

NUT,FLANGED,6MM

92015-1528

$5.52

92015A

NUT,ADJUST

92015-1642

$3.92

92022

WASHER

92022-1814

$4.69

92143

COLLAR,6.5X9.5X17

92143-1408

$4.76

92144

SPRING,RETURN

92144-1725

$9.58

92150

BOLT,LEVER SET

92150-1383

$20.99

92150A

BOLT

92150-1452

$5.52

132

BOLT-FLANGED-SMALL,6X30

132G0630

$2.48
