Description

Price

14001

SET-CRANKCASE

14001-5337

Unavailable

14014

PLATE-POSITION

14014-1051

$35.74

14014A

PLATE-POSITION

14014-1057

$4.69

14014B

PLATE-POSITION,ROD

14014-1080

Unavailable

14014C

PLATE-POSITION

14014-1083

$35.74

49065

FILTER-OIL

49065-1071

$14.17

92009

SCREW,8X16

92009-1703

Unavailable

92022

WASHER,6.2X11X1

92022-304

$3.65

92028

BUSHING

92028-1694

Unavailable

92043

PIN,11.5X14X14

92043-1279

$5.00

92049

SEAL-OIL,TC32457

92049-1159

$8.60

92065

GASKET,12X22X2

92065-097

$0.74

92066

PLUG,OIL LINE,7.2X8

92066-1012

$6.51

92066A

PLUG,OIL DRAIN,12X15

92066-1174

$6.16

92066B

PLUG

92066-1282

$6.51

92150

BOLT,RETURN SPRING

92150-1803

$9.51

120

BOLT-SOCKET,6X40

120Z0640

$4.52

130

BOLT-FLANGED

130Z0865

$7.92

132

BOLT-FLANGED-SMALL,6X40

132Y0640

$4.80

132A

BOLT-FLANGED-SMALL

132Y0695

$6.09

172

BOLT-STUD,8X25

172G0825

$3.70

220

SCREW PAN HEAD 6X12

220B0612

Unavailable

221

SCREW-CSK-CROS,6X16

221B0616

$0.59

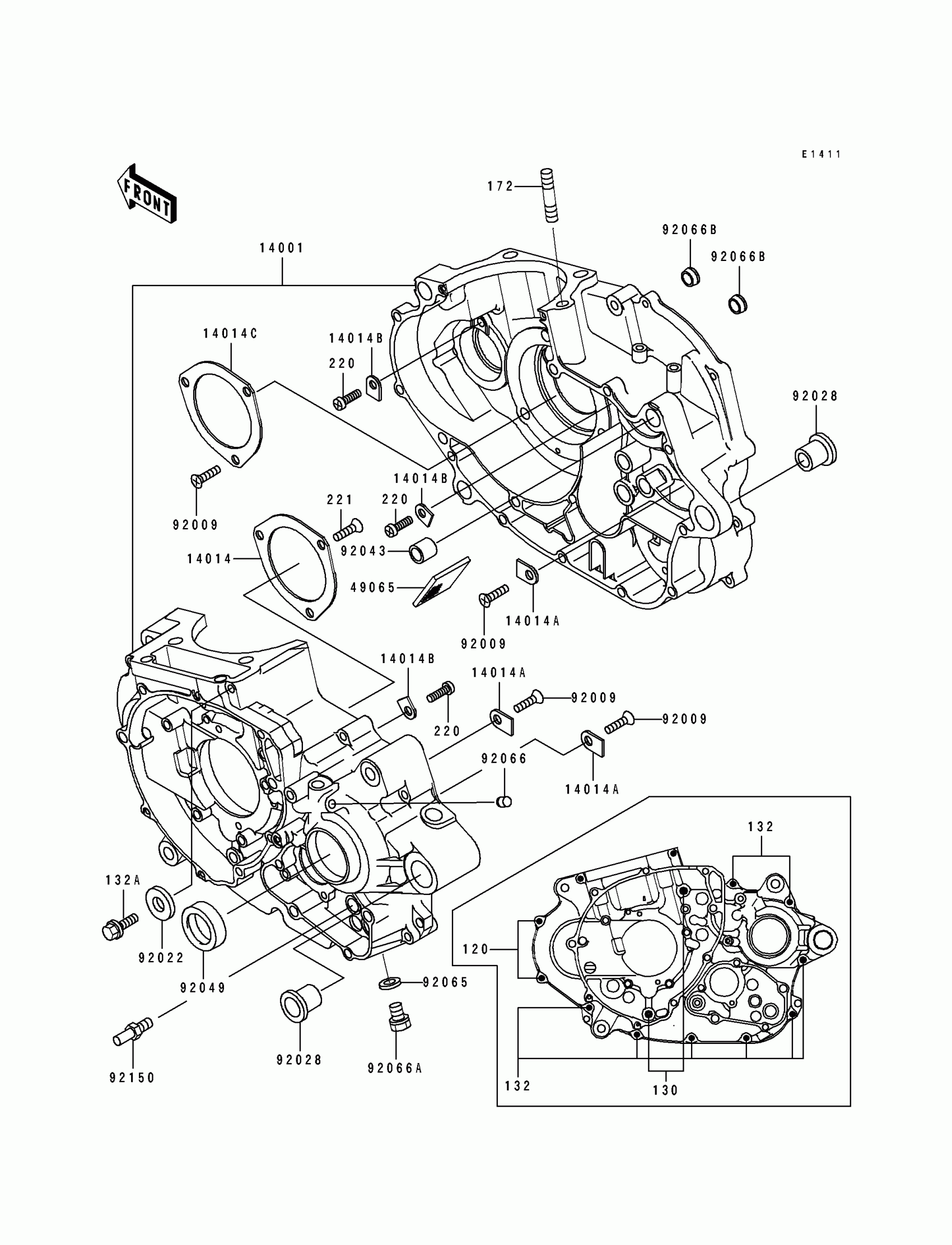

Kawasaki KLX650R Crankcase Diagram

SET-CRANKCASE

PLATE-POSITION

PLATE-POSITION

PLATE-POSITION,ROD

PLATE-POSITION

FILTER-OIL

SCREW,8X16

WASHER,6.2X11X1

BUSHING

PIN,11.5X14X14

SEAL-OIL,TC32457

GASKET,12X22X2

PLUG,OIL LINE,7.2X8

PLUG,OIL DRAIN,12X15

PLUG

BOLT,RETURN SPRING

BOLT-SOCKET,6X40

BOLT-FLANGED

BOLT-FLANGED-SMALL,6X40

BOLT-FLANGED-SMALL

BOLT-STUD,8X25

SCREW PAN HEAD 6X12

SCREW-CSK-CROS,6X16
