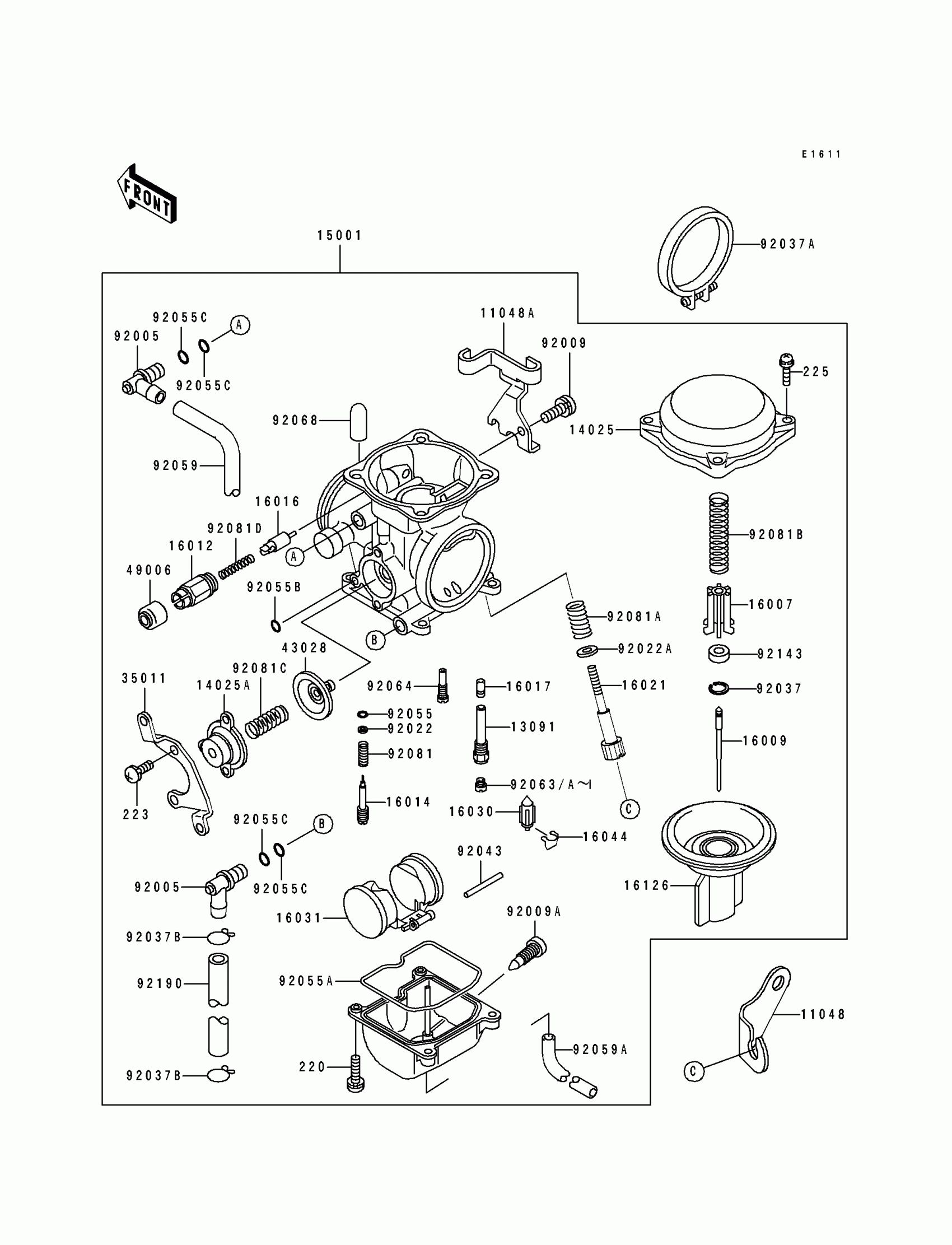

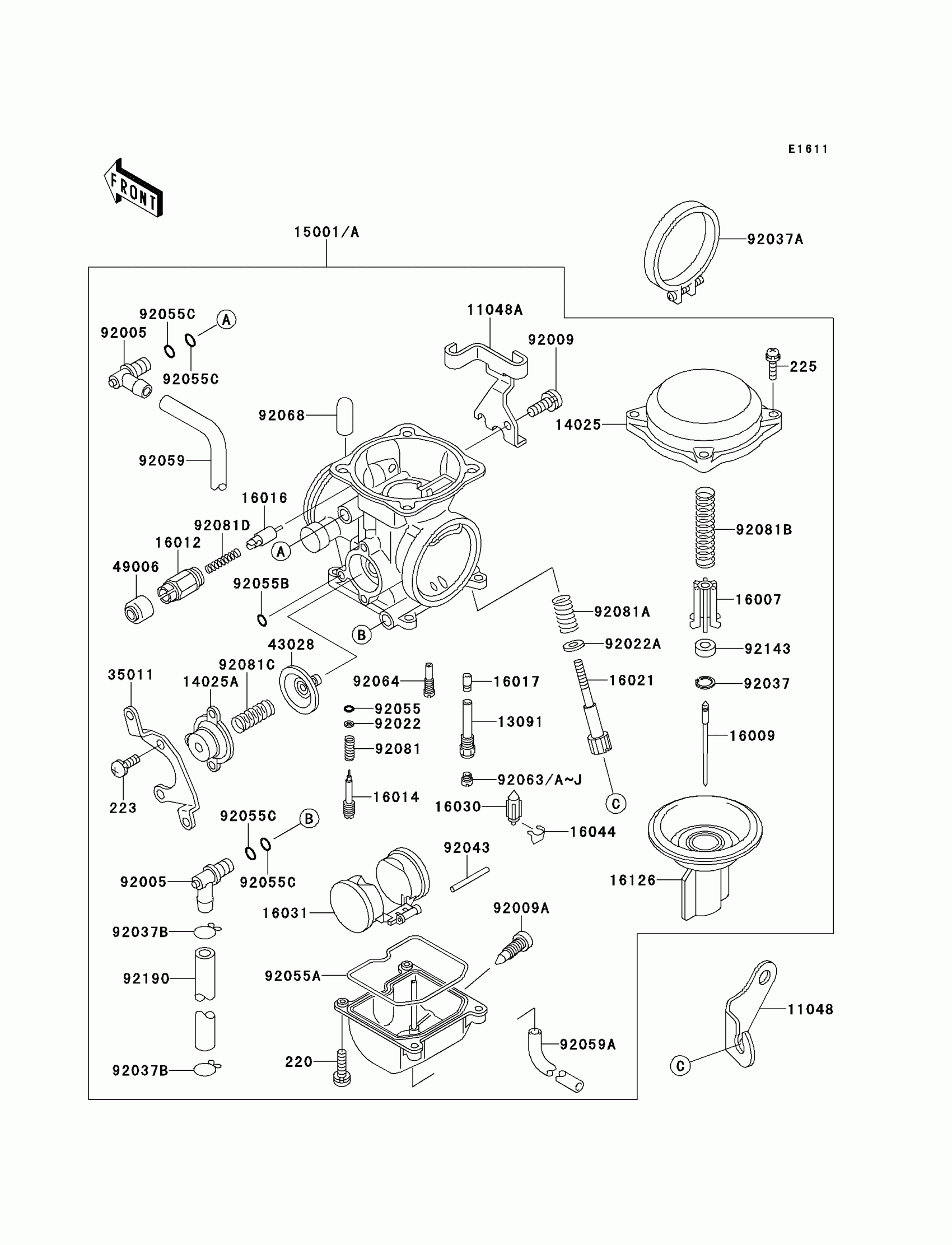

Kawasaki KLX650R Carburetor Diagram

#

Description
Price

11048

BRACKET,CARBURETOR

11048-1210

Unavailable

11048A

BRACKET,THROTTLE CABLE

11048-1275

Unavailable

13091

HOLDER,NEEDLE JET

13091-1425

$29.68

14025

COVER,MIXING CHAMBER

14025-1890

$77.81

14025A

COVER,AIR CUT VALVE

14025-1903

$58.45

16007

SEAT-SPRING,DIAPHRAGM VALVE

16007-1113

$20.77

16009

NEEDLE-JET,N1TB

16009-1794

$39.96

16012

CAP-STARTER PLUNGER

16012-1055

$27.48

16014

SCREW-PILOT AIR

16014-1061

$28.34

16016

PLUNGER

16016-1057

$55.84

16017

JET-NEEDLE

16017-1367

$43.57

16021

SCREW-THROTTLE STOP

16021-1145

$110.44

16030

VALVE-FLOAT

16030-1057

$47.13

16031

FLOAT

16031-1056

$53.59

16044

CLAMP,FLOAT VALVE

16044-007

$7.91

16126

VALVE,VACUUM

16126-1278

$210.46

35011

STAY,AIR CUT VALVE

35011-1232

$37.45

43028

DIAPHRAGM,5.9MM,AIR CUT VALVE

43028-1053

Unavailable

49006

BOOT,STARTER PLUNGER

49006-1165

$10.00

92005

FITTING,L-TYPE

92005-1120

$28.64

92009

SCREW,5X10

92009-1365

$7.34

92009A

SCREW,DRAIN,M6X0.75

92009-1551

$9.91

92022

WASHER,PLAIN

92022-1003

$4.31

92022A

WASHER,PLAIN,STOP SPRING

92022-1480

$5.00

92037

CLAMP,JET NEEDLE

92037-1401

$4.31

92037A

CLAMP,55MM

92037-1486

$8.66

92037B

CLAMP,TUBE

92037-1531

$5.52

92043

PIN,FLOAT

92043-1207

$11.14

92055

RING-O,PILOT ADJUST

92055-1002

$4.31

92055A

RING-O,FLOAT CHAMBER

92055-1222

$17.44

92055B

RING-O

92055-1245

$5.57

92055C

RING-O

92055-1246

$4.50

92059

TUBE,6.5X9.5X430

92059-1727

$30.56

92059A

TUBE,3.5X6.5X390

92059-1838

Unavailable

220

SCREW-PAN-CROS,4X14

220D0414

$4.60

223

SCREW-PAN-WS-CROS,4X10

223C0410

$0.68

225

SCREW-PAN-WSP-CROS,4X18

225C0418

$4.01

92063E

JET-MAIN,#150

92063-1330

$14.10

92063F

JET-MAIN,#152

92063-1331

$14.79

92063H

JET-MAIN,#155

92063-1332

$14.79

92063I

JET-MAIN,#158

92063-1344

$14.79

92063J

JET-MAIN,#160

92063-1345

$14.79

92064

JET-PILOT,#40

92064-1108

$17.03

92068

PLUG,12X25

92068-006

$4.26

92081

SPRING,PILOT ADJUST SCREW

92081-1002

$5.46

92081A

SPRING,THROTTLE STOP SCREW

92081-1617

$6.11

92081B

SPRING,DIAPHRAGM VALVE

92081-1718

$27.69

92081C

SPRING,AIR CUT VALVE

92081-1719

$12.62

92081D

SPRING,PLUNGER

92081-1720

$10.19

92143

COLLAR

92143-1667

$6.12

92190

TUBE,6.5X11.5X160

92190-1473

$7.60

15001

CARBURETOR-ASSY

15001-1792

Unavailable

15001A

CARBURETOR-ASSY

15001-1869

$564.04

92063

JET-MAIN,#140

92063-1013

$14.10

92063A

JET-MAIN,#135

92063-1014

$14.10

92063B

JET-MAIN,#138

92063-1015

$14.10

92063C

JET-MAIN,#130

92063-1075

$14.10

92063D

JET-MAIN,#132

92063-1076

$14.10

92063G

JET-MAIN,#155

92063-1332

$14.79
