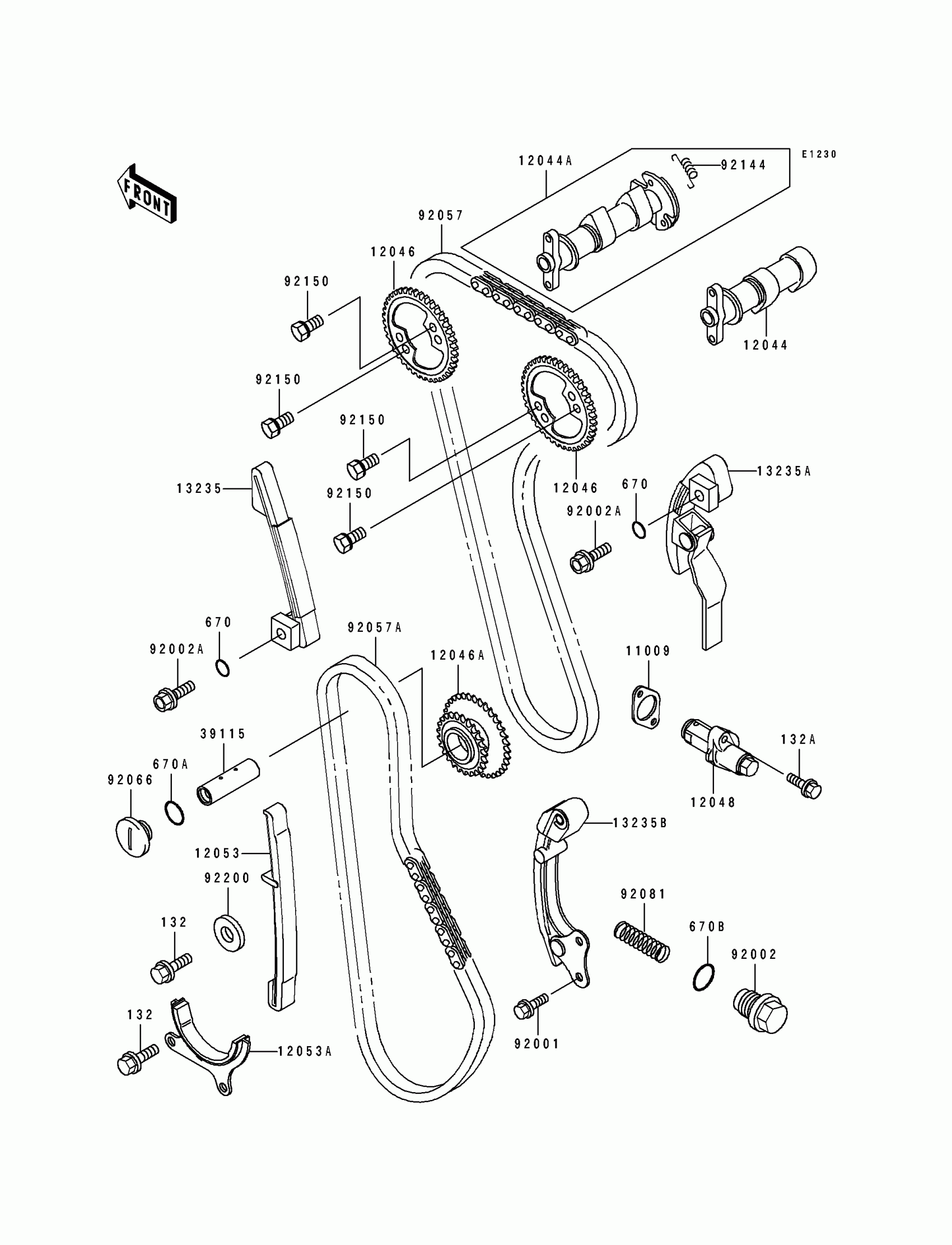

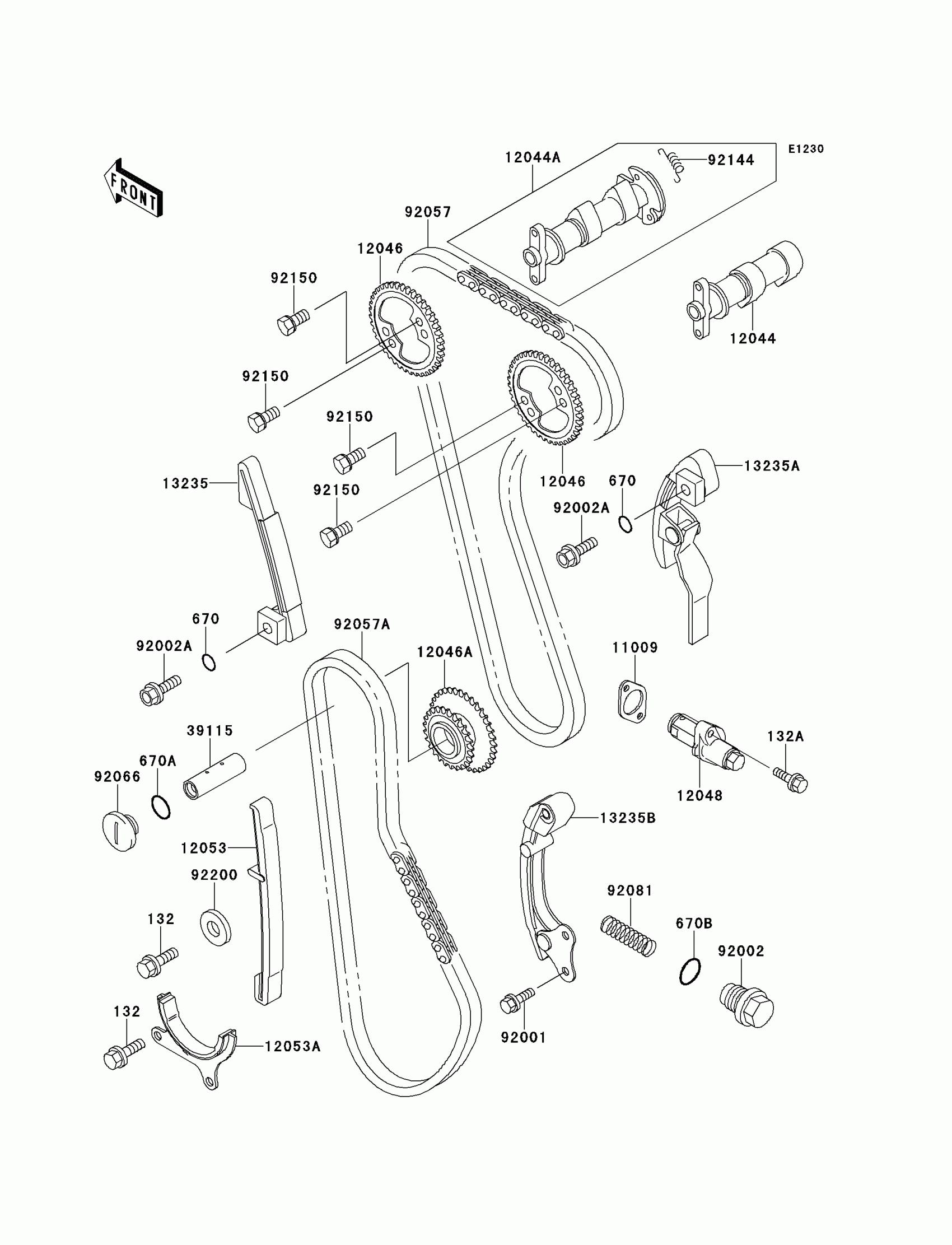

Kawasaki KLX650R Camshaft(s)/Tensioner Diagram

#

Description
Price

11009

GASKET,TENSIONER

11009-1858

$4.61

12044

CAMSHAFT-VALVE,INTAKE

12044-1326

Unavailable

12044A

CAMSHAFT-VALVE,EXHAUST

12044-1346

Unavailable

12046

SPROCKET,CAMSHAFT

12046-1137

$74.26

12046A

SPROCKET,CAMCHAIN IDLER

12046-1139

$91.50

12048

TENSIONER-ASSY

12048-1139

$156.65

12053

GUIDE-CHAIN,FR,LWR

12053-1306

$48.83

12053A

GUIDE-CHAIN

12053-1329

$38.17

13235

GUIDE-COMP,FR,UPP

13235-1064

$99.29

13235A

GUIDE-COMP,RR,UPP

13235-1065

$162.90

13235B

GUIDE-COMP,RR,LWR

13235-1066

Unavailable

39115

SHAFT-IDLER,SPROCKET

39115-1074

$30.67

92001

BOLT,6X16

92001-1457

$5.00

92002

BOLT,TENSIONER

92002-1621

$26.05

92002A

BOLT

92002-1732

$17.56

92057

CHAIN,UPP,88RH2015,94L

92057-1361

$68.55

92057A

CHAIN,LWR,88RH2010,82L

92057-1362

$55.61

92066

PLUG,IDLER

92066-1409

$32.10

92081

SPRING,TENSIONER

92081-1380

$8.14

92144

SPRING,DECOMPRESSOR

92144-1744

$5.90

92150

BOLT,FLANGED,6X11

92150-1725

$5.00

92200

WASHER,7X27X1.6

92200-1169

Unavailable

132

BOLT-FLANGED-SMALL

132G0614

$1.42

132A

BOLT-FLANGED-SMALL,6X25

132Y0625

$5.02

670

O RING,11MM

670B2011

$1.28

670A

O RING,16MM

670B2016

$1.36

670B

O RING,18MM

670B2018

$1.42
