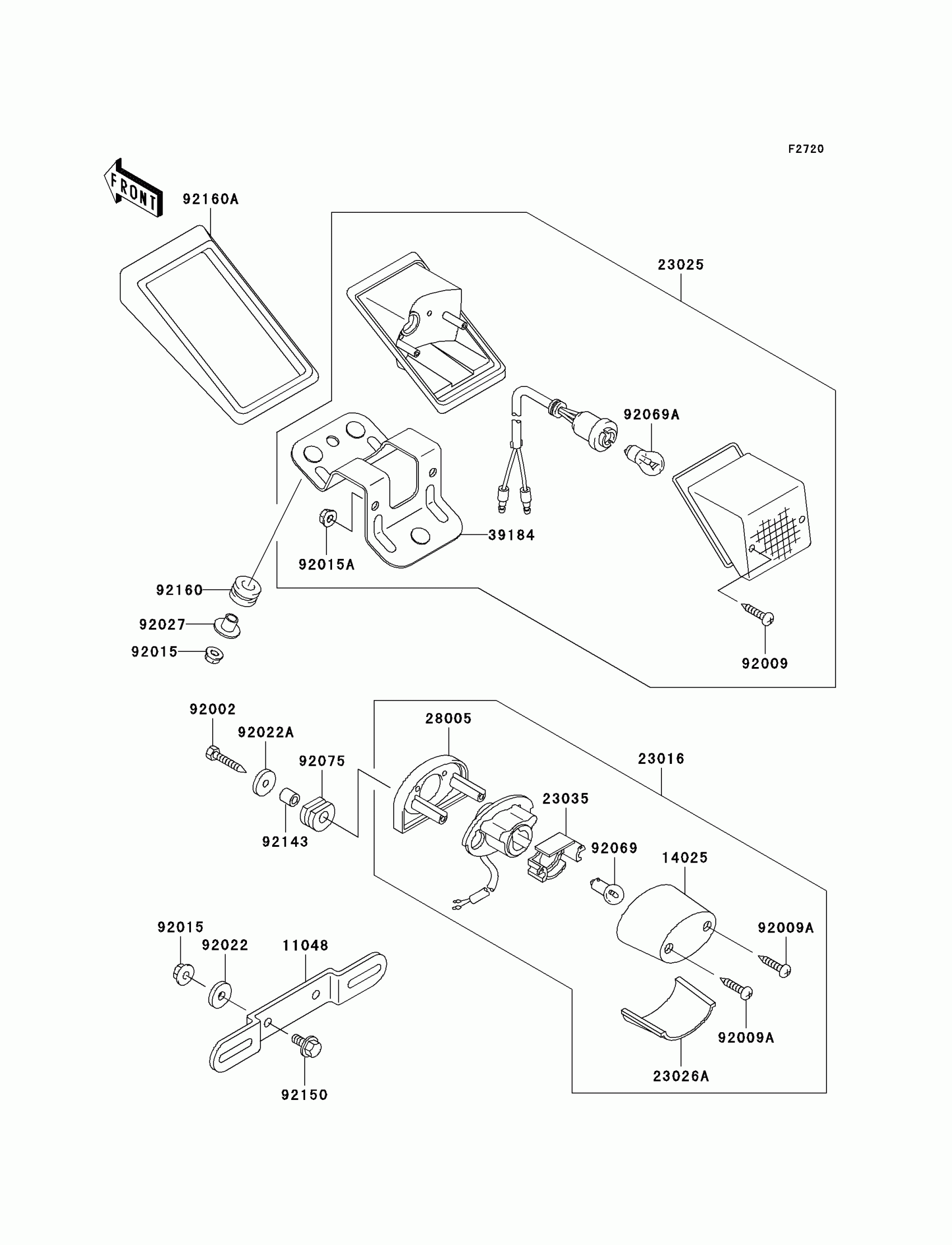

Kawasaki KLX650 Taillight(s)@(&NAMI.JKALXEC1 SA021309) Diagram

Description

Price

11048

BRACKET,LICENSE PLATE LAMP

11048-1217

Unavailable

14025

COVER,LICENSE LAMP

14025-1725

$17.20

23016

LAMP-ASSY,LICENSE PLATE

23016-1130

$60.78

23025

LAMP-TAIL

23025-1235

$141.62

23026A

LENS,LICENSE LAMP

23026-1064

Unavailable

23035

REFLECTOR-LAMP,LICENSE

23035-1060

Unavailable

28005

BODY-LAMP,LICENSE

28005-1051

$25.64

39184

BRACKET-ASSY,TAIL LAMP

39184-1077

$38.16

92002

BOLT,TAPPING,5X25

92002-1831

Unavailable

92009

SCREW,TAPPING,4X20

92009-1297

$3.75

92009A

SCREW,TAPPING,4X20

92009-1378

$3.68

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92015A

NUT,6MM

92015-1899

$3.81

92022

WASHER,6.5X20X1.6

92022-1557

$1.08

92022A

WASHER,5.5X20X1.2

92022-1581

Unavailable

92027

COLLAR,L=14.1

92027-1920

$5.12

92069

BULB,12V 8W

92069-1012

Unavailable

92069A

BULB,12V 27/8W

92069-1093

$13.58

92075

DAMPER

92075-1870

$4.42

92143

COLLAR,5.8X9X10.5

92143-1047

$3.34

92150

BOLT,6X16

92150-1909

$3.42

92160

DAMPER,10X20X12

92160-1167

$3.57

92160A

DAMPER,TAIL LAMP

92160-1406

$43.35

11009

GASKET,TAIL LAMP

11009-1371

$10.31

23026

LENS,TAIL LAMP

23026-1053

$46.31
