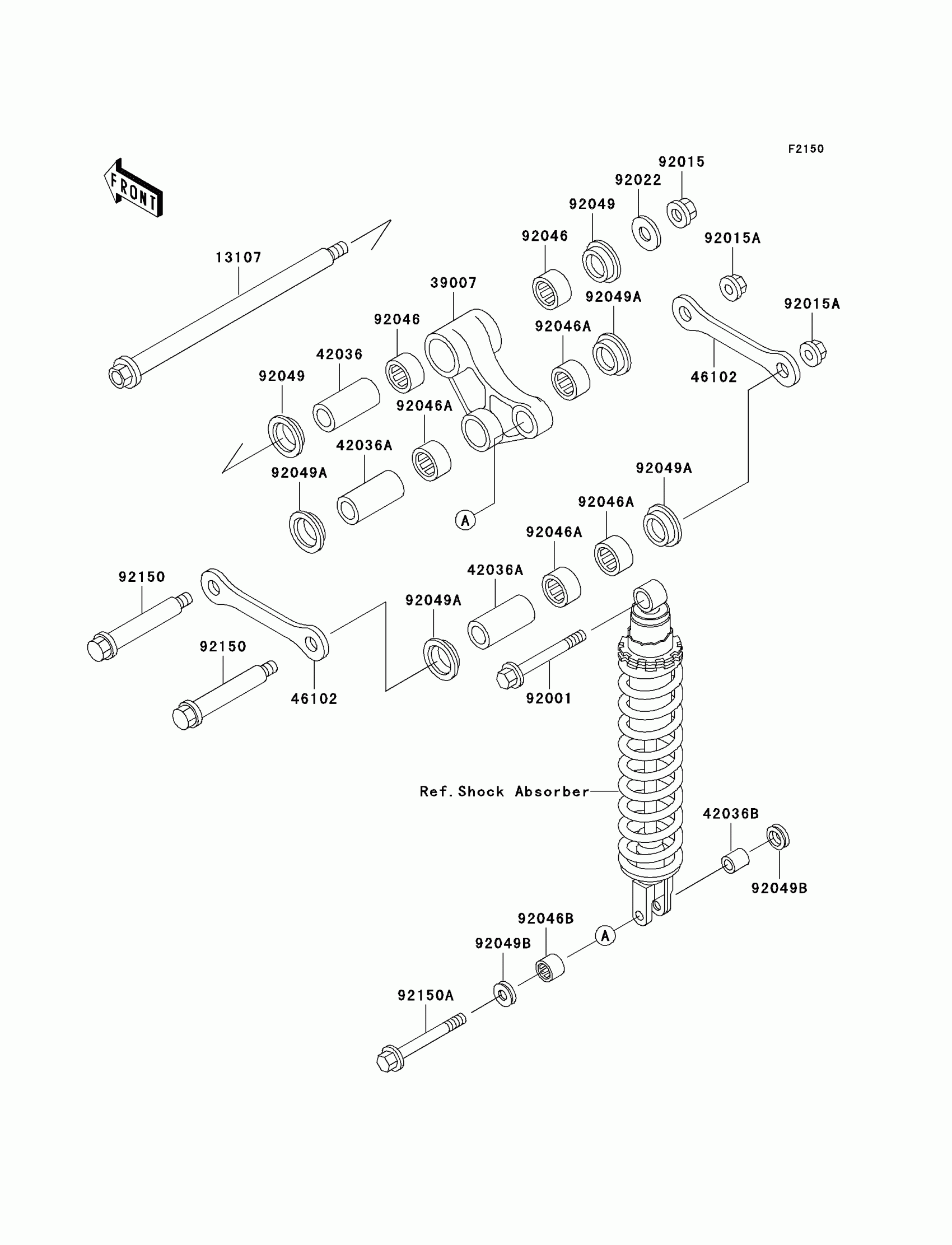

Kawasaki KLX650 Rear Suspension Diagram

Description

Price

13107

SHAFT,SUSPENSION ARM

13107-1320

Unavailable

39007

ARM-SUSP,UNI TRAK

39007-1226

Unavailable

42036

SLEEVE,20X28X60

42036-1207

$34.48

42036A

SLEEVE,15X22X57

42036-1245

$21.29

42036B

SLEEVE,10X16X19

42036-1248

$9.91

46102

ROD,SUSPENSION

46102-1349

$45.16

92001

BOLT,FLANGED,10X44

92001-1499

$5.52

92015

NUT,FLANGED,16MM

92015-1316

$24.01

92015A

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92022

WASHER,16X32X3.2

92022-1701

$4.69

92046

BEARING-NEEDLE,BM2817

92046-1111

$21.86

92046A

BEARING-NEEDLE,F-2220

92046-1162

$21.24

92046B

BEARING-NEEDLE,16BM2212

92046-1192

$18.21

92049

SEAL-OIL,28X34X5.7

92049-1181

$9.28

92049A

SEAL-OIL,MHA22 28 5.7F

92049-1254

$9.28

92049B

SEAL-OIL

92049-1330

$12.29

92150

BOLT,ROD,12X85

92150-1213

$24.41

92150A

BOLT,FLANGED,10X40

92150-1711

$12.35
